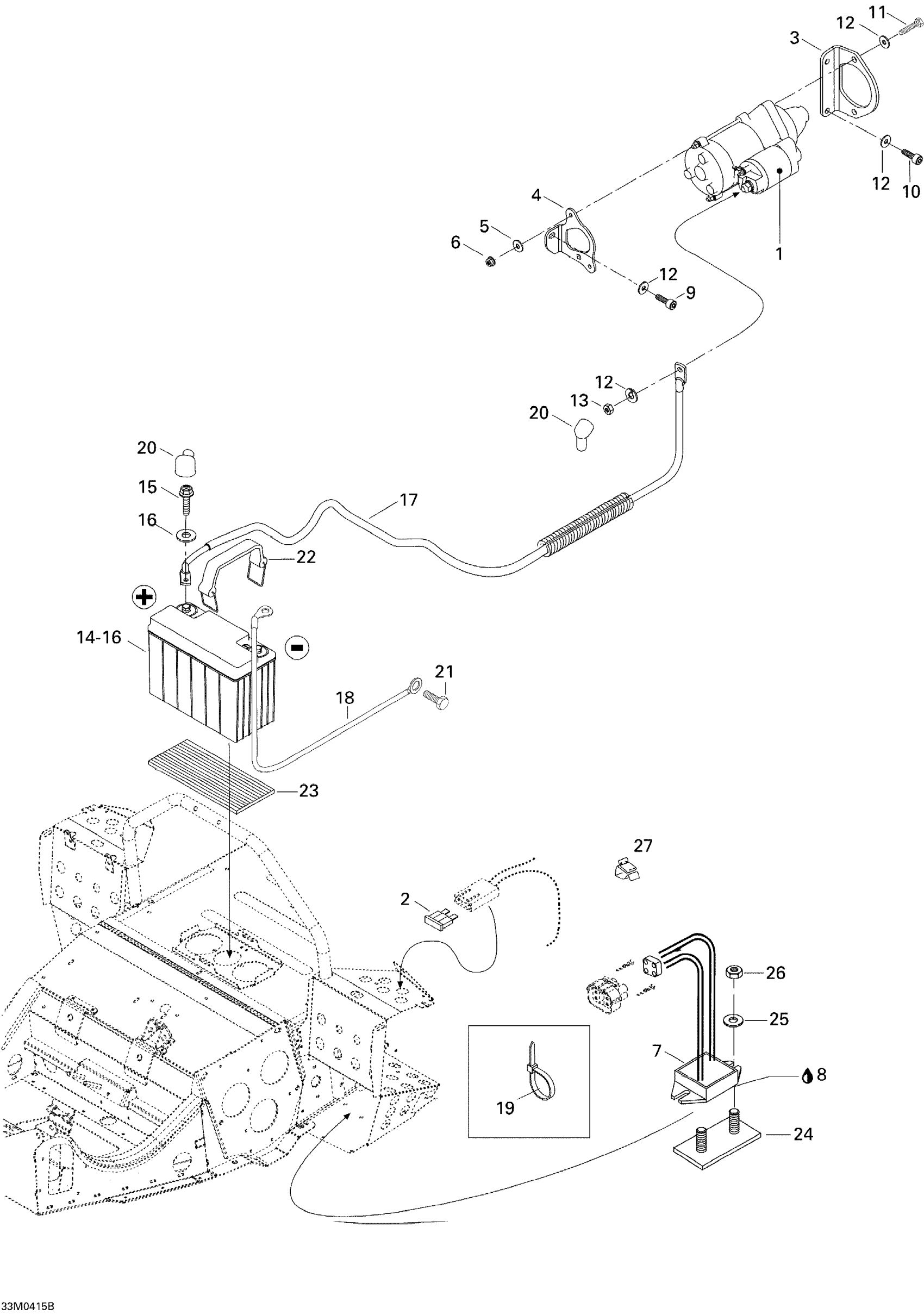

Ski-Doo Skandic SUV 550F, 2004 10- Electrical System (550F Suv) Diagram

#

Description
Price

1

STARTER ASS'Y - Call your local BRP dealership | Canada / U.S.A

515175795

Unavailable

2

Fuse, 20 Amperes

409003900

$3.28

3

STARTER BRACKET - Call your local BRP dealership | Canada / U.S.A

515175652

Unavailable

4

STARTER SUPPORT MAG SIDE - Call your local BRP dealership | Canada / U.S.A

515175633

Unavailable

5

Washer 5,3 mm

20008

$0.74

6

Elastic Stop Nut M5

232551414

$0.87

7

Voltage Regulator Ass'y

515175939

$209.99

8

Grease Tube Lmz, 400 G

413707500

Unavailable

9

Hex. Screw M8 X 16

M40066

Unavailable

10

Socket Head Screw M8 X 20

205082044

$1.15

11

Hex. Screw M8 X 20

207182044

$0.74

12

Lock Washer 8 mm

234181401

$0.92

13

NUT - Call your local BRP dealership

M33003

Unavailable

14

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

15

Hex. Screw M6 X 16

207161644

$0.74

16

FLAT WASHER - Call your local BRP dealership

391302100

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Tie-Rap 180 mm

414115200

$0.11

20

Protection Cap

570151000

$21.99

21

SCREW-M6X12 - Call your local BRP dealership

M40327

Unavailable

22

Battery Strap

515176044

$18.49

23

BATTERY CARPET - Call your local BRP dealership

605350237

Unavailable

24

SUPPORT - Call your local BRP dealership

M5448286

Unavailable

25

Flat Washer 6 mm

234062410

$0.77

26

Elastic Stop Nut M6

232561414

$0.55

27

Clip

414227300

$1.67
