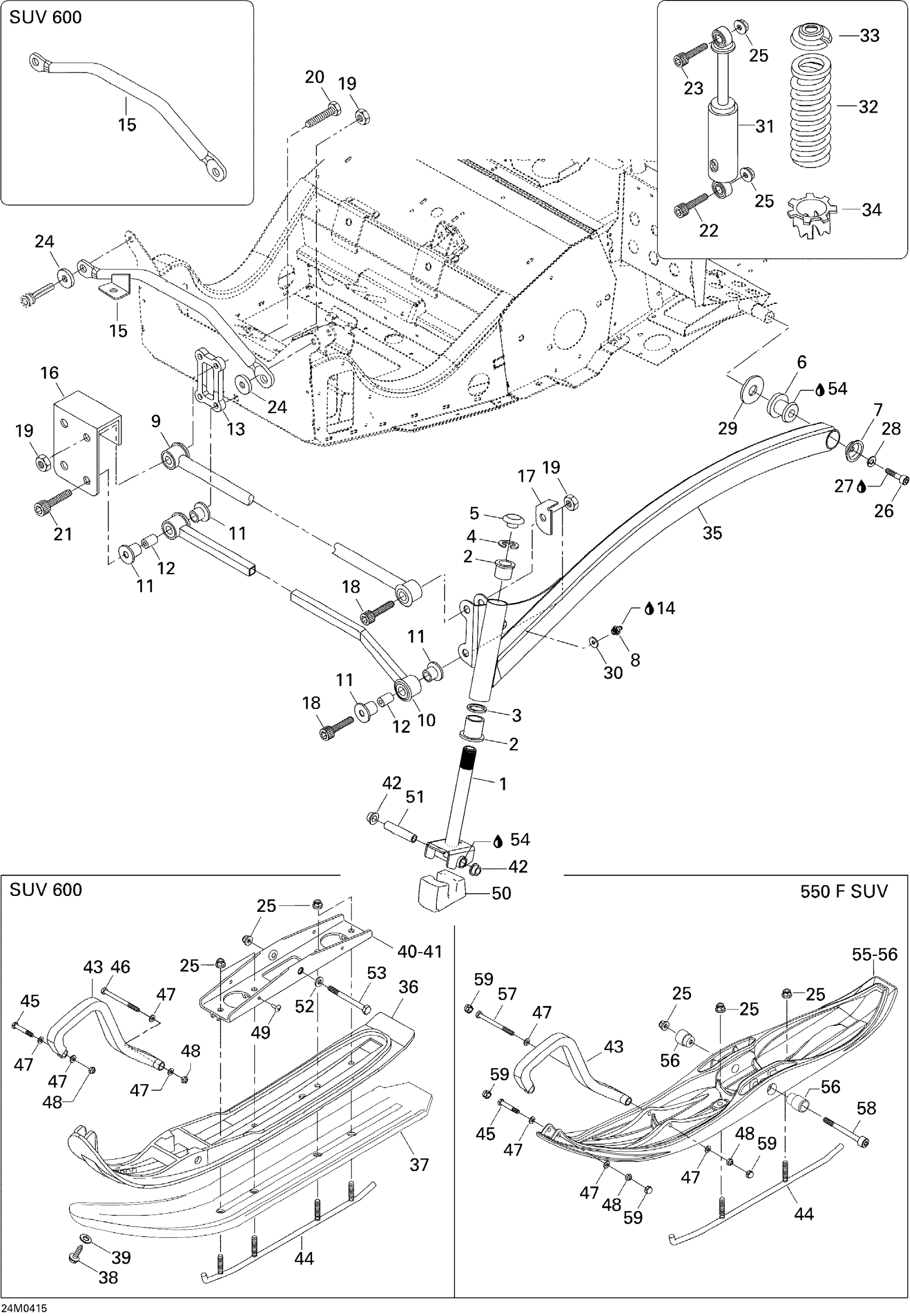

Ski-Doo Skandic SUV 550F, 2004 Front Suspension And Ski Diagram

#

Description
Price

1

Ski Leg

506151234

Unavailable

2

Cushion

505070003

$9.23

3

WASHER - Call your local BRP dealership

505070004

Unavailable

4

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

5

Cap

572091300

$12.99

6

DAMPER - Call your local BRP dealership

570062200

Unavailable

7

Cup | Package Hunter

705007171

$7.89

8

Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership This part replaces M34011.

34011

$11.99

9

UPPER ARM ASS'Y - Call your local BRP dealership

M5348207

Unavailable

10

Lower Arm Ass'y

M5248204

Unavailable

11

CUSHION - Call your local BRP dealership

506149100

$14.49

12

BUSHING - Call your local BRP dealership

605450024

$20.99

12

Bushing | 600 SUV

506149200

Unavailable

13

Lower Link Plate

M5345384

Unavailable

14

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

15

BAR SUPPORT - Call your local BRP dealership | SUV 550

605349134

Unavailable

15

BAR - Call your local BRP dealership | SUV 600

605348306

Unavailable

16

Painted Link Plate

M5345716

Unavailable

17

RH Plate Locking

605448861

Unavailable

17

LH Plate Locking

605448862

Unavailable

18

Screw Allen M12 X 55

M40371

Unavailable

19

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

20

Screw M12 X 75

M40185

Unavailable

21

SCREW ALLEN M12 X 75 - Call your local BRP dealership

M40370

Unavailable

22

Screw M10 X 55

M40837

Unavailable

23

SCREW M10 X 65 - Call your local BRP dealership

M40254

Unavailable

24

WASHER - Call your local BRP dealership

605449801

Unavailable

25

NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074.

33074

Unavailable

25

NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074.

33074

Unavailable

26

Screw Allen M8 X 20

M40810

Unavailable

27

Loctite 243, 10 ml

293800060

$21.49

28

Lock Washer 8 mm

234181401

$0.92

29

WASHER - Call your local BRP dealership

503146700

Unavailable

30

WASHER - Call your local BRP dealership

M20007

Unavailable

31

Front Shock | Includes 30 and 32 to 33

M23165

Unavailable

32

White Spring

M25061

Unavailable

33

Spring Seat

230076

$9.69

34

CAM - Call your local BRP dealership

M230078

Unavailable

35

Rh Arm

M5248252

Unavailable

35

LH ARM - Call your local BRP dealership

M5248336

Unavailable

36

Ski-Liner Flex

505070189

$127.99

37

Skiliner | 600 SUV This part replaces M5147975.

5147975

$111.99

38

SCREW-HEX. - Call your local BRP dealership

M40901

Unavailable

39

Washer

20037

$2.11

40

BRIDGE - Call your local BRP dealership

505070000

Unavailable

41

BUSHING - Call your local BRP dealership

505070001

Unavailable

42

BUSHING - Call your local BRP dealership

505070001

Unavailable

43

Black, Handle

505070963

$35.99

44

Carbide Round Runner Kit | Europe models This part replaces 605352643.

860202822

$95.99

44

CARBIDE RUNNER - Call your local BRP dealership | 600 SUV

M5347354

Unavailable

45

Hex. Screw M8 X 50

207085044

$1.48

46

Hex. Screw M8 X 100 | 600 SUV

M40869

Unavailable

47

Flat Washer 8 mm

234081410

$0.83

48

Hex. Elastic Stop Nut M8

232581414

$0.56

49

RIVET - Call your local BRP dealership

M36072

Unavailable

50

SKI STOPPER - Call your local BRP dealership

605348458

Unavailable

50

SKI STOPPER - Call your local BRP dealership

505072018

Unavailable

51

Spacer

506133300

$23.99

52

WASHER M10 - Call your local BRP dealership

20005

Unavailable

53

Hex. Screw M10 X 110 | 600 SUV

M40814

Unavailable

54

Grease, Super Lube

293550030

$28.99

55

Ski | Europe models

505073034

$238.49

56

Bushing | Europe models

605348392

$52.99

57

Hex. Screw M8 X 90

207089044

$3.48

58

Allen Screw M10x140 8.8zn(1=10pcs) | Europe models This part replaces M40225.

40225

$14.22

59

Cover | Model-T3

28056

$5.89
