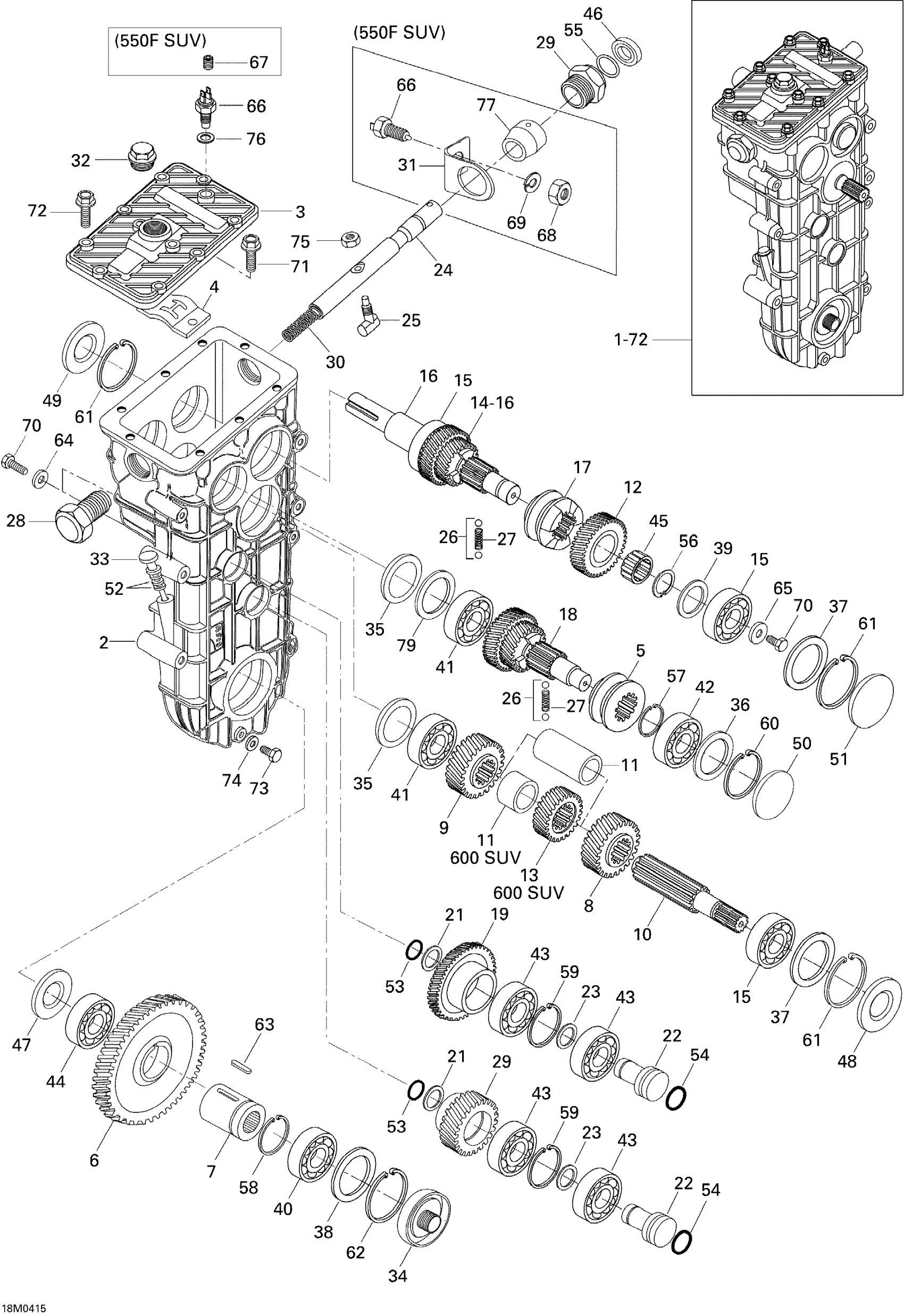

Ski-Doo Skandic SUV 550F, 2004 05- Transmission Diagram

#

Description
Price

1

Transmission Ass'y | SUV 550, Includes 1 to 77

M870156272

Unavailable

1

Transmission Ass'y | SUV 600, Includes 1 to 71

M870156150

Unavailable

2

HOUSING - Call your local BRP dealership This part replaces M875156138.

875156138

Unavailable

3

COVER - Call your local BRP dealership

M875156043

Unavailable

4

H-SCHEME - Call your local BRP dealership This part replaces M875156111.

875156111

Unavailable

5

Clutch wheel (Two side) - Call your local BRP dealership This part replaces M875156005.

875156005

Unavailable

6

Sprocket 53 Th

M875156114

Unavailable

7

SHAFT - Call your local BRP dealership

M875156218

Unavailable

8

Sprocket 29Th | SUV 550

M875156051

Unavailable

8

Sprocket 27 Th

M875156136

Unavailable

9

Wheel Z=34 L.H. - Call your local BRP dealership This part replaces M875156054.

875156054

Unavailable

10

SHAFT - Call your local BRP dealership This part replaces M875156069.

875156069

Unavailable

11

SLEEVE - Call your local BRP dealership

M875156087

Unavailable

11

SLEEVE - Call your local BRP dealership

M875156088

Unavailable

12

Sprocket 28 Th

M875156115

Unavailable

12

Sprocket 29 Th

M875156135

Unavailable

13

Sprocket 29Th

M875156151

Unavailable

14

COUNTER SHAFT - Call your local BRP dealership | Includes 11 to 12 This part replaces M875156063.

875156063

Unavailable

15

BEARING 6305 - Call your local BRP dealership This part replaces M610063050.

610063050

Unavailable

16

Sleeve

M875156089

Unavailable

17

Clutch wheel (Two side) - Call your local BRP dealership This part replaces M875156005.

875156005

Unavailable

18

Shaft - Call your local BRP dealership This part replaces M875156068.

875156068

Unavailable

19

SPROCKET-28 - Call your local BRP dealership This part replaces M875156050.

875156050

Unavailable

19

Sprocket 28Th

M875156206

Unavailable

20

SPROCKET 31 TH - Call your local BRP dealership

M875156049

Unavailable

20

Sprocket 31 Th

M875156156

Unavailable

21

Shim This part replaces M875156094.

875156094

$21.99

22

Axe *Shaft This part replaces M875147204.

875147204

$132.49

23

Washer

M875147205

Unavailable

24

Shaft - Call your local BRP dealership This part replaces M875156072.

875156072

Unavailable

25

Pin - Call your local BRP dealership This part replaces M875156073.

875156073

Unavailable

26

Ball This part replaces M616810064.

616810064

$26.99

27

Spring - Call your local BRP dealership This part replaces M875156105.

875156105

Unavailable

28

SLEEVE - Call your local BRP dealership This part replaces M875156076.

875156076

Unavailable

29

SLEEVE - Call your local BRP dealership This part replaces M875156077.

875156077

Unavailable

30

Spring This part replaces M875156078.

875156078

$109.99

31

BRACKET - Call your local BRP dealership

M5346698

Unavailable

32

Oilplug - Call your local BRP dealership This part replaces M875156098.

875156098

Unavailable

33

Filler Cap Ass'y

M875156097

Unavailable

34

Bouchon *Plug

M875156104

Unavailable

35

Plug This part replaces M875152953.

875152953

$42.99

36

Shim

M617394252

Unavailable

36

Shim

M617394252

Unavailable

37

Shim 0,3mm - Call your local BRP dealership This part replaces M617395065.

617395065

Unavailable

38

ADJUSTMENT SHIM - Call your local BRP dealership This part replaces M617395568.

617395568

Unavailable

39

WASHER-AXIAL - Call your local BRP dealership

M616092542

Unavailable

40

Bearing - Call your local BRP dealership This part replaces M6008.

6008

Unavailable

41

BEARING 6304 - Call your local BRP dealership This part replaces M610063044.

610063044

Unavailable

42

Bearing - Call your local BRP dealership This part replaces M6304.

6304

$41.99

43

BALL BEARING - Call your local BRP dealership This part replaces M610063036.

610063036

Unavailable

44

Bearing - Call your local BRP dealership This part replaces M6008.

6008

Unavailable

45

Needle bearing This part replaces M611002529.

611002529

$27.49

46

Oil seal - Call your local BRP dealership This part replaces M614102031.

614102031

Unavailable

47

Oil seal This part replaces M614102852.

614102852

$25.99

48

Oil seal This part replaces M614102562.

614102562

$51.99

49

Oil seal This part replaces M614103562.

614103562

$52.99

50

Plug This part replaces M614100052.

614100052

$28.49

51

PLUG - Call your local BRP dealership This part replaces M614100062.

614100062

Unavailable

52

O-ring - Call your local BRP dealership This part replaces M614600725.

614600725

Unavailable

53

O-RING - Call your local BRP dealership This part replaces M614601224.

614601224

Unavailable

54

O-ring This part replaces M614602431.

614602431

$11.60

55

O-ring This part replaces M614601523.

614601523

$11.60

56

CIRCLIP - Call your local BRP dealership This part replaces M617450025.

617450025

Unavailable

57

CIRCLIP - Call your local BRP dealership This part replaces M617450028.

617450028

$12.49

58

CIRCLIP - Call your local BRP dealership

M617300040

Unavailable

59

Circlip - Call your local BRP dealership This part replaces M617330047.

617330047

Unavailable

60

Retaining Ring (1=10Pcs) This part replaces M31002.

31002

$8.11

61

CIRCLIP - Call your local BRP dealership This part replaces M617330062.

617330062

$12.99

62

Snapring - Call your local BRP dealership This part replaces M617330068.

617330068

Unavailable

63

KEY - Call your local BRP dealership

M603345080

Unavailable

64

WASHER - Call your local BRP dealership

M501150902

Unavailable

65

WASHER - Call your local BRP dealership

M875156112

Unavailable

66

Switch - Call your local BRP dealership This part replaces M654100225.

654100225

Unavailable

67

Threated Plug

M640025012S

Unavailable

68

NUT - Call your local BRP dealership

M33021

Unavailable

69

WASHER - Call your local BRP dealership

M20016

Unavailable

70

Hex. Screw M8 X 20

207182044

$0.74

71

Screw

M534801362

Unavailable

72

Screw 80 x 25 - Call your local BRP dealership This part replaces M537001402.

537001402

Unavailable

73

HEX. SCREW M8 X 10 - Call your local BRP dealership This part replaces M528801342.

528801342

Unavailable

74

Gasket-ring - Call your local BRP dealership

615580812

Unavailable

75

NUT M10 - Call your local BRP dealership This part replaces M510611002.

510611002

Unavailable

76

Shim

M617391218

Unavailable

77

SLEEVE - Call your local BRP dealership

M5446699

Unavailable

78

Shim 0.5 mm - Call your local BRP dealership This part replaces M617394352.

617394352

$15.49
