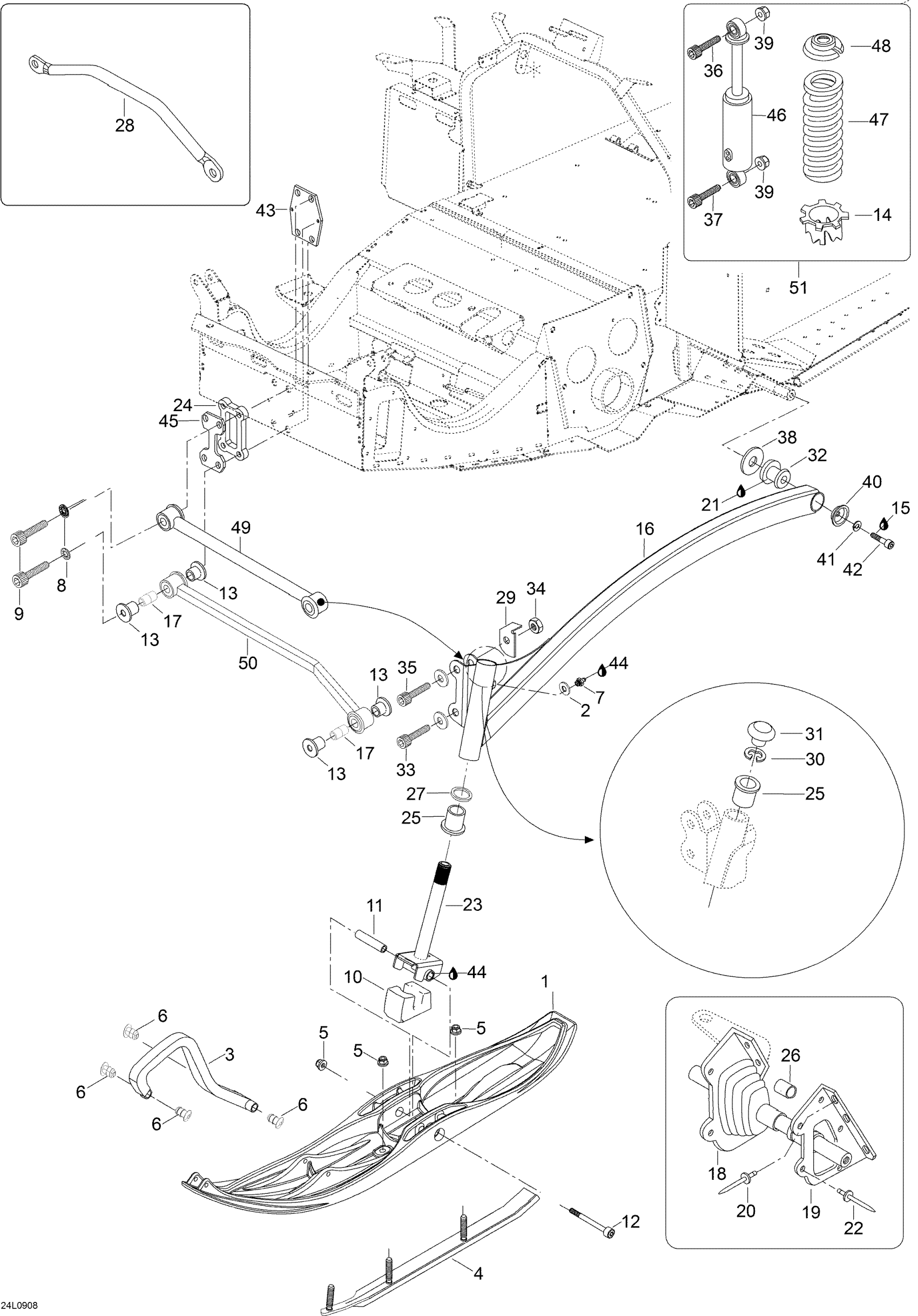

Ski-Doo Skandic SUV, 2009 07- Front Suspension And Ski Diagram

#

Description
Price

1

Ski | Europe models

505073034

$238.49

2

WASHER - Call your local BRP dealership

M20007

Unavailable

3

Black, Handle

505070963

$35.99

4

Carbide Round Runner Kit | Europe models This part replaces 605352643.

860202822

$95.99

5

NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074.

33074

Unavailable

6

Retainer 17mm long

505071812

$5.95

7

Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership This part replaces M34011.

34011

$11.99

8

Lock Washer

M20074

Unavailable

9

SCREW ALLEN M12 X 75 - Call your local BRP dealership

M40370

Unavailable

10

SKI STOPPER - Call your local BRP dealership

605348458

Unavailable

11

Spacer

506133300

$23.99

12

Allen Screw M10x140 8.8zn(1=10pcs) | Europe models This part replaces M40225.

40225

$14.22

13

CUSHION - Call your local BRP dealership

506149100

$14.49

14

CAM - Call your local BRP dealership

M230078

Unavailable

15

Loctite 243, 10 ml

293800060

$21.49

16

Swing Arm Weld RH

605251768

$275.49

16

SWING ARM WELD LH B - Call your local BRP dealership

605251767

$275.49

17

BUSHING - Call your local BRP dealership

605450024

$20.99

18

RH Tie Rod Cap

570024800

Unavailable

18

LH TIE ROD CAP - Call your local BRP dealership

570024900

Unavailable

19

PLATE COVER RH - Call your local BRP dealership

605355206

Unavailable

19

PLATE COVER LH - Call your local BRP dealership

605355205

Unavailable

20

Black, Rivet

M36036

$1.69

21

Grease, Super Lube

293550030

$28.99

22

Rivet This part replaces M36009.

36009

$1.15

23

SKI LEG - Call your local BRP dealership

505072001

Unavailable

24

Spacer 17.5

605350191

Unavailable

25

Cushion

505070003

$9.23

26

BUSHING - Call your local BRP dealership

572036500

Unavailable

27

WASHER - Call your local BRP dealership

505070004

Unavailable

28

SUPPORT SHAFT - Call your local BRP dealership

605352875

Unavailable

29

RH Plate Locking

605448861

Unavailable

29

LH Plate Locking

605448862

Unavailable

30

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

31

Cap

572091300

$12.99

32

DAMPER - Call your local BRP dealership

570062200

Unavailable

33

Screw Allen M12 X 55

M40371

Unavailable

34

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

35

Allen Screw M12 X 60

M40306

Unavailable

36

Screw M10 X 55

M40837

Unavailable

37

Socket Head Screw. M10 X 50

M40136

Unavailable

38

WASHER - Call your local BRP dealership

503146700

Unavailable

39

Elastic Locking Nut M10 X 1.5

233601416

$1.69

40

Cup | Package Hunter

705007171

$7.89

41

Lock Washer 8 mm

234181401

$0.92

42

Screw Allen M8 X 20

M40810

Unavailable

43

PLATE - Call your local BRP dealership

605353972

Unavailable

44

Not Available As Spare Part - Friction Washer

Unavailable

45

MIDDLE PLATE - Call your local BRP dealership

605450900

Unavailable

46

Shock This part replaces M23183.

23183

$248.99

47

WHITE SPRING - Call your local BRP dealership

605625012

Unavailable

48

Spring Seat

230076

$9.69

49

UPPER ARM ASSY - Call your local BRP dealership

605350022

$119.99

50

LOWER ARM - Call your local BRP dealership

605252224

$149.99

51

Not Available As Spare Part - Friction Washer

Unavailable
