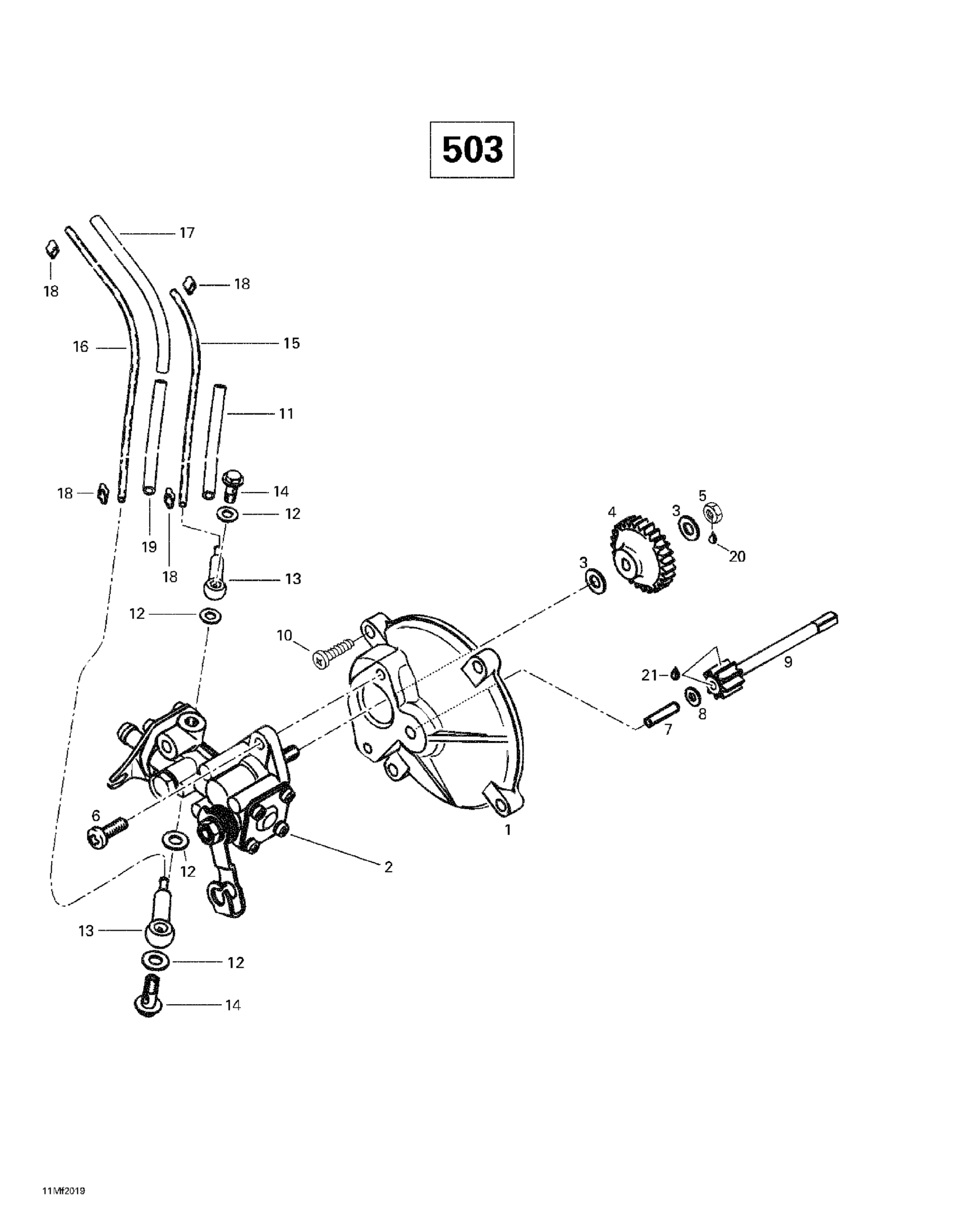

Ski-Doo Skandic Super Wide Track, 2000 02- Oil Injection System (503) Diagram

PUMP MOUNTING FLANGE - Call your local BRP dealership

420910160

Unavailable

Oil Pump Ass'y

420887993

Unavailable

FLAT WASHER - Call your local BRP dealership

420927945

Unavailable

Oil Pump Gear, 27 Teeth

420935930

$16.33

Elastic Stop Nut M6

232561414

$0.55

Screw

420841971

$2.96

NEEDLE PIN - Call your local BRP dealership

420832260

Unavailable

Flat Washer 4

420244072

$1.01

Gear, 9 Teeth

420935970

$15.89

Screw

420841971

$2.96

Isolation Line 90 mm | 380 F.

420960750

Unavailable

Sealing Washer

404146600

$2.97

Valve Ass’Y

420956010

$17.53

Banjo Bolt M6 X 16

404146800

Unavailable

Oil Hose 1500Mm Long

219704404

$17.26

Oil Hose 1500Mm Long

219704404

$17.26

Hose 6 Mm 15000Mm Long

219704360

$132.49

Clamp

420853840

$4.44

Isolation Line

420960728

$4.44

Loctite 243, 10 ml

293800060

$21.49

Dow Corning 111, 150 g

413707000

$59.99
