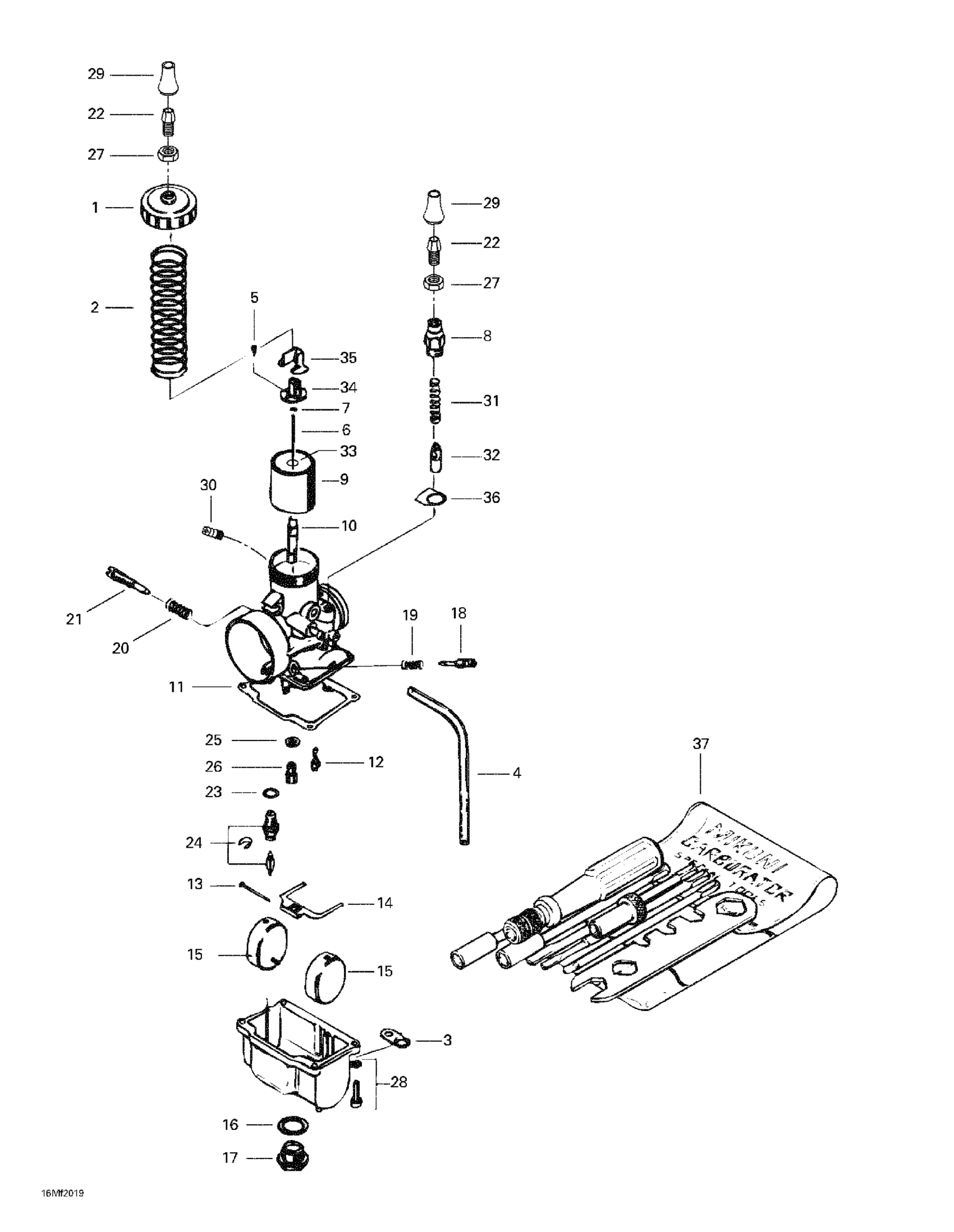

Ski-Doo Skandic Super Wide Track, 2000 Carburetors Diagram

#

Description
Price

1

Carburetor VM 34-534 | Includes 1 - 35. Skandic WT. Skandic SWT.

M19034

Unavailable

Carburetor VM 34-534 (MAG) | Skandic WT LC.

M19105

Unavailable

Carburetor VM 34-534 (PTO) | Skandic WT LC.

M19106

Unavailable

1

Cover

404103700

$31.99

2

Spring

404154800

$23.99

3

PLATE - Call your local BRP dealership

404103000

Unavailable

4

AIR VENT TUBE - Call your local BRP dealership

404160100

Unavailable

5

Screw With Washer

404121300

$4.14

6

JET NEEDLE J8 6DH2 - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).

404110400

Unavailable

Jet Needle J8 6DH2

404161876

Unavailable

7

E-Ring

404102400

Unavailable

8

GUIDE HOLDER - Call your local BRP dealership | MAG Side

404161100

Unavailable

9

Piston Valve 2.5

404128400

$127.49

10

Needle Jet (NJ P-2 159)

404100700

Unavailable

Needle Jet NJ 159 | Skandic 500F. Skandic 500F (SWT).

404157100

Unavailable

11

Gasket | Includes 1900a to 1900am

404104200

$6.38

12

PILOT JET PJ40 - Call your local BRP dealership

404109100

Unavailable

13

Lever Pin

404103300

$6.27

14

Float Lever

404107600

$22.99

15

FLOAT - Call your local BRP dealership

404107100

Unavailable

16

O-RING - Call your local BRP dealership

404101500

Unavailable

17

Drain Plug Screw

404107400

$22.99

18

Air Screw

404102300

$14.35

19

Spring

404101800

$4.25

20

Spring

404101700

$4.14

21

IDLE SPEED SCREW - Call your local BRP dealership

404102800

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Seat Washer

404101600

$3.29

24

Needle Valve 1.5

404103200

$31.99

25

WASHER - Call your local BRP dealership

404102200

Unavailable

26

Main Jet (MJ 240)

404100200

$8.36

Main Jet MJ 250

404100300

$8.36

Main Jet MJ 185

404119500

$5.21

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Screw With Lock Washer

404102000

$3.18

29

Not Available As Spare Part - Friction Washer

Unavailable

30

NIPPLE - Call your local BRP dealership

404127600

Unavailable

31

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

32

PLUNGER ASS'Y - Call your local BRP dealership

404160400

Unavailable

33

Packing

404117000

$3.29

34

CONNECTOR - Call your local BRP dealership

404160800

Unavailable

35

Cover

404122100

$19.49

36

Washer

404158300

Unavailable

37

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
