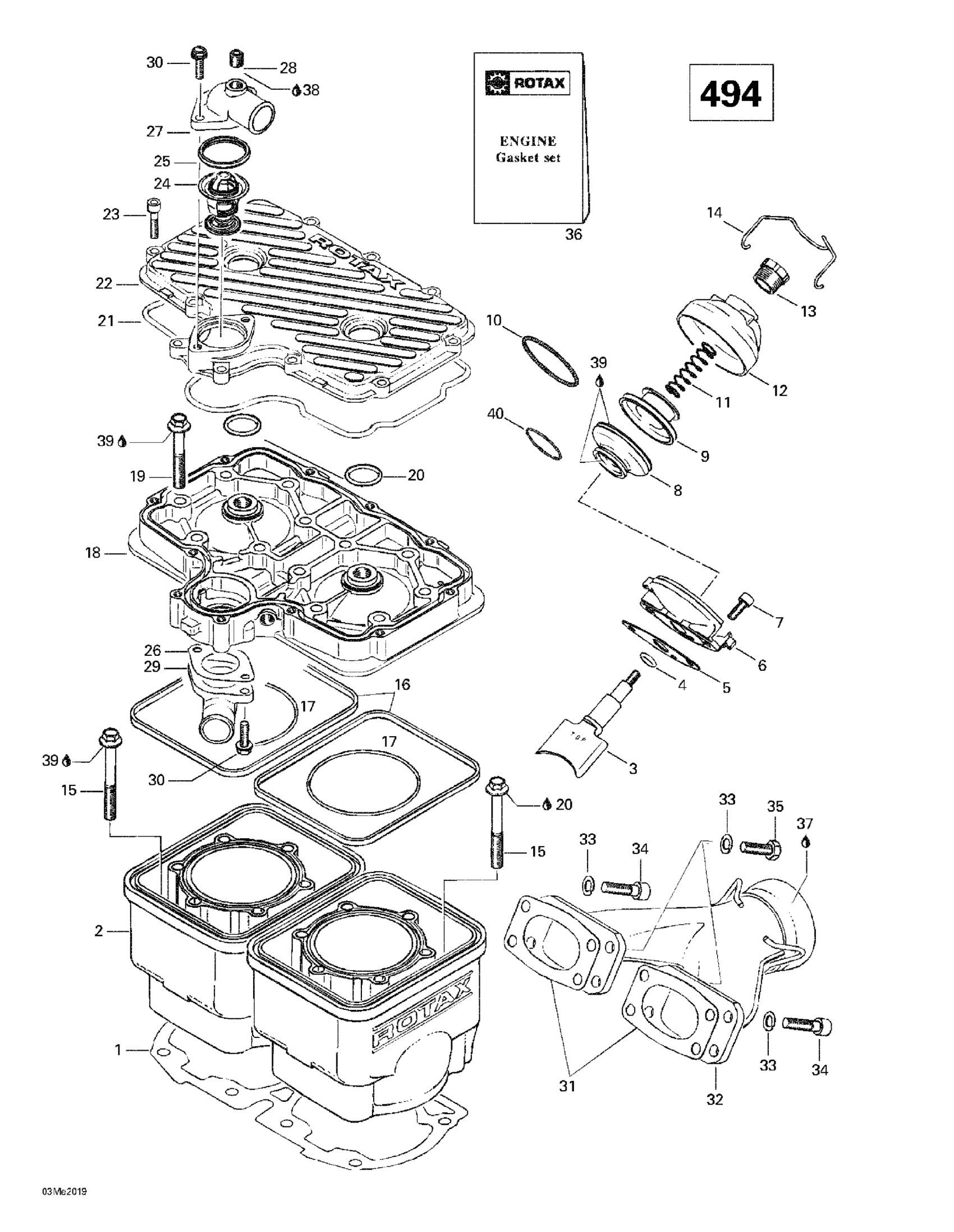

Ski-Doo Skandic Super Wide Track, 2000 01- Cylinder, Exhaust Manifold (494) Diagram

#

Description
Price

1

Gasket Double 0.4 mm

420931361

Unavailable

2

Cylinder With Sleeve Ass'y | Skandic WT LC.

420923619

Unavailable

3

EXHAUST VALVE - Call your local BRP dealership

420854300

Unavailable

4

O-Ring

420430110

$4.44

5

Gasket

420250239

$7.37

6

Valve Housing | Grand Touring 600.

420854265

Unavailable

7

Socket Head Screw M6 x 16

420241237

$2.22

8

Exhaust Bellows

420260723

$42.49

9

Exhaust Valve This part replaces 290253257.

420854449

$35.99

10

Hose Spring This part replaces 420239048.

420939281

$7.41

11

SPRING - Call your local BRP dealership

420239948

Unavailable

12

Valve Cover

420911552

$38.99

13

Adjuster Screw

420241221

$14.22

14

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

15

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

$7.65

16

RUBBER RING - Call your local BRP dealership This part replaces 290850040.

420850040

Unavailable

17

O-Ring | Grand Touring 500.

420831792

$15.89

18

Cylinder Head (Silver) | Skandic WT LC.

420923166

Unavailable

19

Hex. Flange Screw M8 X 53.5

420240326

Unavailable

20

O-Ring

420430782

$5.39

21

O-Ring

420931260

Unavailable

22

Cylinder Head Cover (Silver)

420923623

Unavailable

23

Socket Head Screw M6 X 25

205062544

$1.15

24

Thermostat This part replaces 414834100.

420922519

$63.99

25

SEALING RING - Call your local BRP dealership

420931270

Unavailable

26

Gasket

420850338

$11.60

27

BENT OUTLET SOCKET - Call your local BRP dealership

420922061

Unavailable

28

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

29

Bent Outlet Socket

420922480

Unavailable

30

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09

31

Gasket

420850535

Unavailable

32

Exhaust Manifold | Skandic WT LC.

420979632

Unavailable

33

Washer-Lock Din.128

420945832

$1.15

34

Socket Head Screw M8 X 30

205083044

$1.15

35

Hex. Screw M8 X 25

207182544

$0.90

36

Gasket Set

420994227

Unavailable

37

Loctite 767 Antiseize Lubricant, 454 gr | Skandic WT LC.

413702023

Unavailable

38

Was 413702700 Loctite 515, 50 ml

219704462

$33.99

39

Dow Corning 111, 150 g

413707000

$59.99

40

Hose Spring This part replaces 420838253.

420838255

$7.41
