Description

Price

1

CRANKCASE ASS?Y - Call your local BRP dealership | Includes 1 - 6.

420888493

$755.99

2

Washer-Lock Din.128

420945832

$1.15

3

Hex. Screw M8 X 70

420841201

$3.06

4

Hex. Screw M8 X 45

207084544

$1.48

5

Socket Head Screw M8 X 45

420841561

Unavailable

6

SOCKET HEAD SCREW M8 X 65 - Call your local BRP dealership

420841841

Unavailable

7

Cable Grommet

420860962

$13.16

8

Lock Washer | Touring E. Touring E LT (2). Touring LE.

420945753

Unavailable

9

Hex. Nut M10 X 1.5

232006414

$1.37

10

Stud M8 X 173.5

420840556

$15.89

11

Stud M10 | Skandic 500F. Skandic 500F (SWT).

420640030

Unavailable

12

Open Clamp

414176000

$1.99

13

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

14

Hex. Screw M6 X 16

207161644

$0.74

15

Was 413702700 Loctite 515, 50 ml

219704462

$33.99

16

Loctite 243, 10 ml

293800060

$21.49

17

Wire Support | Touring E. Touring E LT (2). Touring LE.

420953310

Unavailable

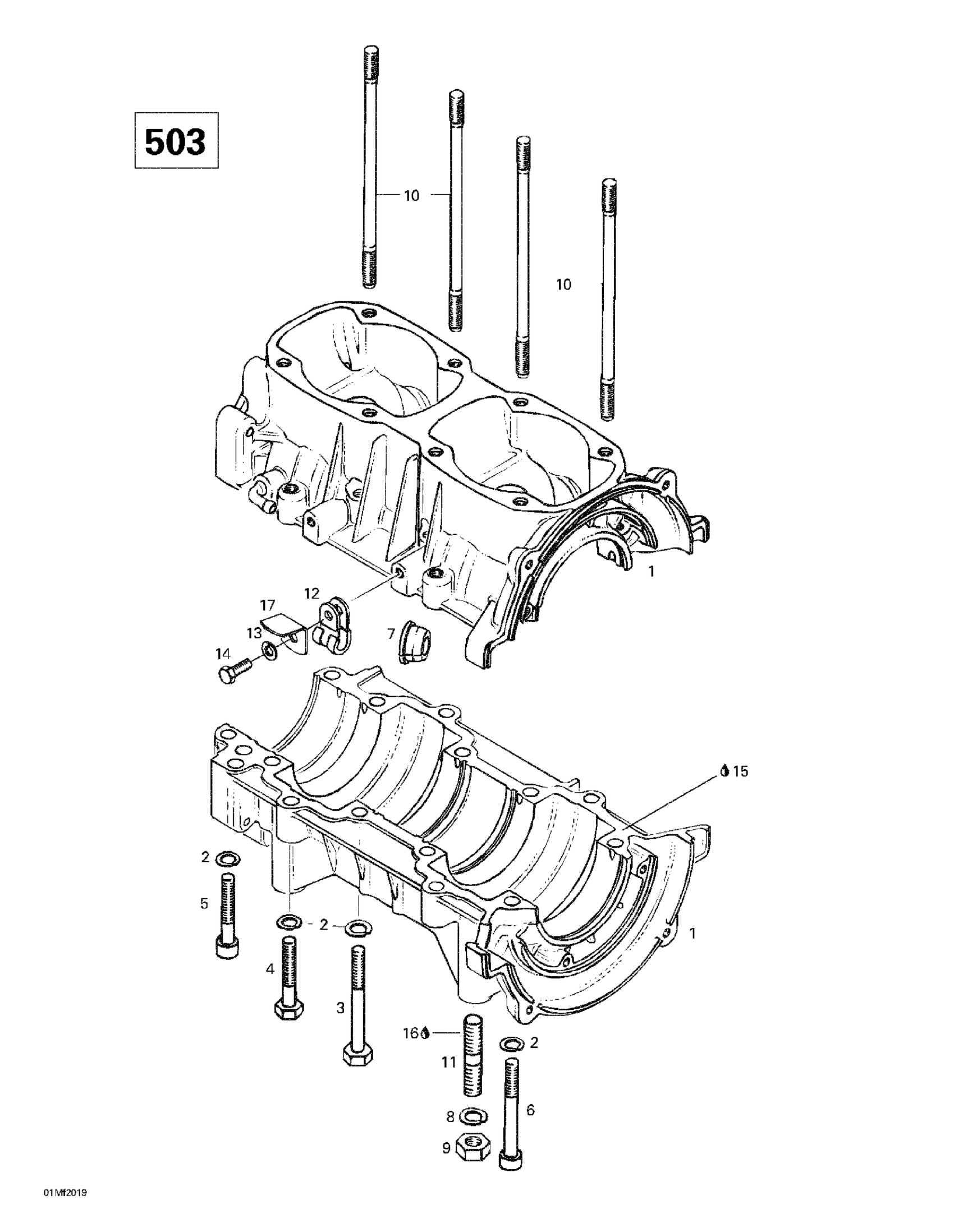

Ski-Doo Skandic Super Wide Track, 2000 01- Crankcase (503) Diagram

CRANKCASE ASS?Y - Call your local BRP dealership | Includes 1 - 6.

Washer-Lock Din.128

Hex. Screw M8 X 70

Hex. Screw M8 X 45

Socket Head Screw M8 X 45

SOCKET HEAD SCREW M8 X 65 - Call your local BRP dealership

Cable Grommet

Lock Washer | Touring E. Touring E LT (2). Touring LE.

Hex. Nut M10 X 1.5

Stud M8 X 173.5

Stud M10 | Skandic 500F. Skandic 500F (SWT).

Open Clamp

WASHER-LOCK DIN.128 - Call your local BRP dealership

Hex. Screw M6 X 16

Was 413702700 Loctite 515, 50 ml

Loctite 243, 10 ml

Wire Support | Touring E. Touring E LT (2). Touring LE.
