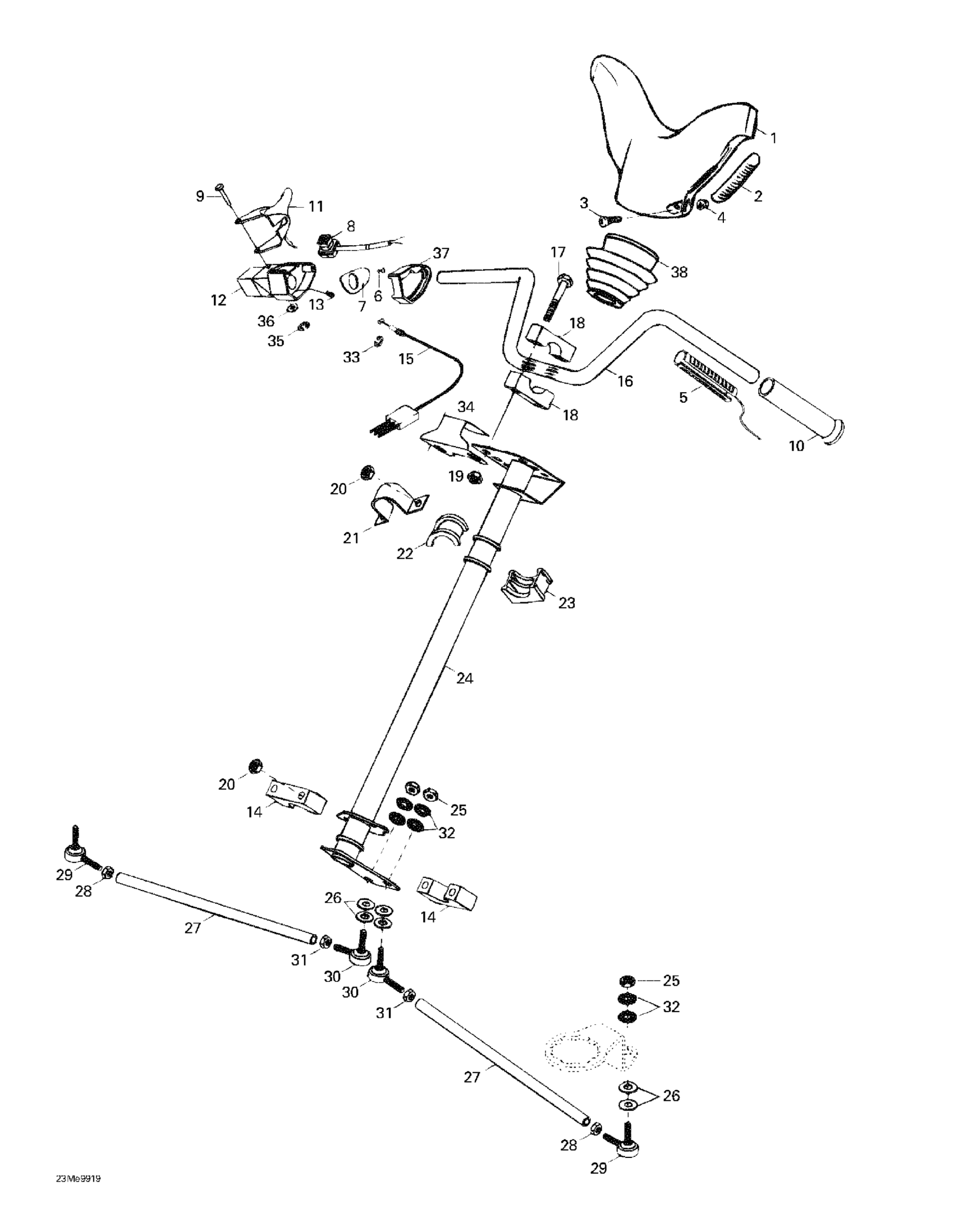

Ski-Doo Skandic Super Wide Track, 1999 07- Steering System Diagram

#

Description
Price

1

Steering Padding

572023800

Unavailable

2

Key Way

572023900

Unavailable

3

Screw

M40156

Unavailable

4

NUT M5 - Call your local BRP dealership

M33062

Unavailable

5

Heather Assy - Call your local BRP dealership This part replaces M544345.

544345

Unavailable

6

Screw

414473200

Unavailable

7

Plate

512060390

$10.33

8

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

9

Lever Pin

414438700

$11.64

10

Grip | WAKE This part replaces M5340464.

506152483

$12.17

11

HANDLE-ASS. - Call your local BRP dealership

M5442276

Unavailable

12

Throttle Housing

512060603

$12.49

13

Socket Set Screw M8 X 10

414440800

$4.12

14

Bushing Ass'y

M5343947

Unavailable

15

Throttle Cable

M5244440

Unavailable

16

BAR-HANDLE - Call your local BRP dealership

M529751

Unavailable

17

Screw Socket HD.DIN 912 This part replaces 205004544.

40134

$3.17

18

Support Guidon *Support-Steer.

M548448

Unavailable

19

Hex. Elastic Stop Nut M8

232581414

$0.56

20

Hex. Flange Elastic Nut M8

233281414

$1.47

21

Retaining Support

M5343381

Unavailable

22

BUSHING - Call your local BRP dealership

572064500

Unavailable

23

Bushing

572064400

Unavailable

24

Main Tube | Skandic 500F. Skandic 600.

M5244297

Unavailable

Main Tube | Skandic SWT.

M5243747

Unavailable

Main Tube | Skandic WT LC.

M5244529

Unavailable

25

Elastic Flange Nut M10

232501416

$1.48

26

Washer

M31014

Unavailable

27

Rh Tie Rod

M548983

Unavailable

Tie Rod LH

M5441066

Unavailable

28

RH NUT - Call your local BRP dealership

M33019

Unavailable

29

RH BALL JOINT - Call your local BRP dealership

506151492

$38.99

30

LH JOINT BALL - Call your local BRP dealership

506151845

$38.99

31

LH NUT - Call your local BRP dealership

M33017

Unavailable

32

Lock Washer D10

20068

$2.00

33

Circlip

M31038

Unavailable

34

Support

M5444196

Unavailable

35

Circlip | Model-RS

414439000

$4.23

36

Flat Washer M5, Stainless

234051600

$0.77

37

THROTTLE COVER - Call your local BRP dealership

572044600

Unavailable

38

Bellow

M539033

Unavailable
