Description

Price

1

Rewind Starter Ass'y | Includes 3 to 13

420888219

$169.49

1

Flange Connector

420810955

$110.99

2

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.48

3

Rewind Starter Ass'y | Includes 3 to 13

420888219

$169.49

4

Starter Housing | Skandic 500F. Skandic 500F (SWT).

420811345

Unavailable

5

Rewind Spring

420939115

$30.49

6

Rope Sheave

420852480

$63.99

7

Was 412500100 Rope-Starter

219704403

$158.99

8

Key Clamp

420852070

$4.23

9

Pawl

420852296

$20.99

10

PAWL LOCK - Call your local BRP dealership | Formula 500 LC.

420852301

Unavailable

11

Stage Sleeve

420847926

$16.33

12

Pawl Spring

420938986

$9.27

13

Stage Sleeve | Formula SL.

420847920

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Starter Grip

572084400

$14.83

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

29

Hex. Elastic Stop Nut M8

232581414

$0.56

30

Flat Washer 8 mm

234081410

$0.83

31

Sleeve | Skandic Super Wide Track

M5441199

Unavailable

32

Rubber Sleeve | Skandic Super Wide Track

M5441198

Unavailable

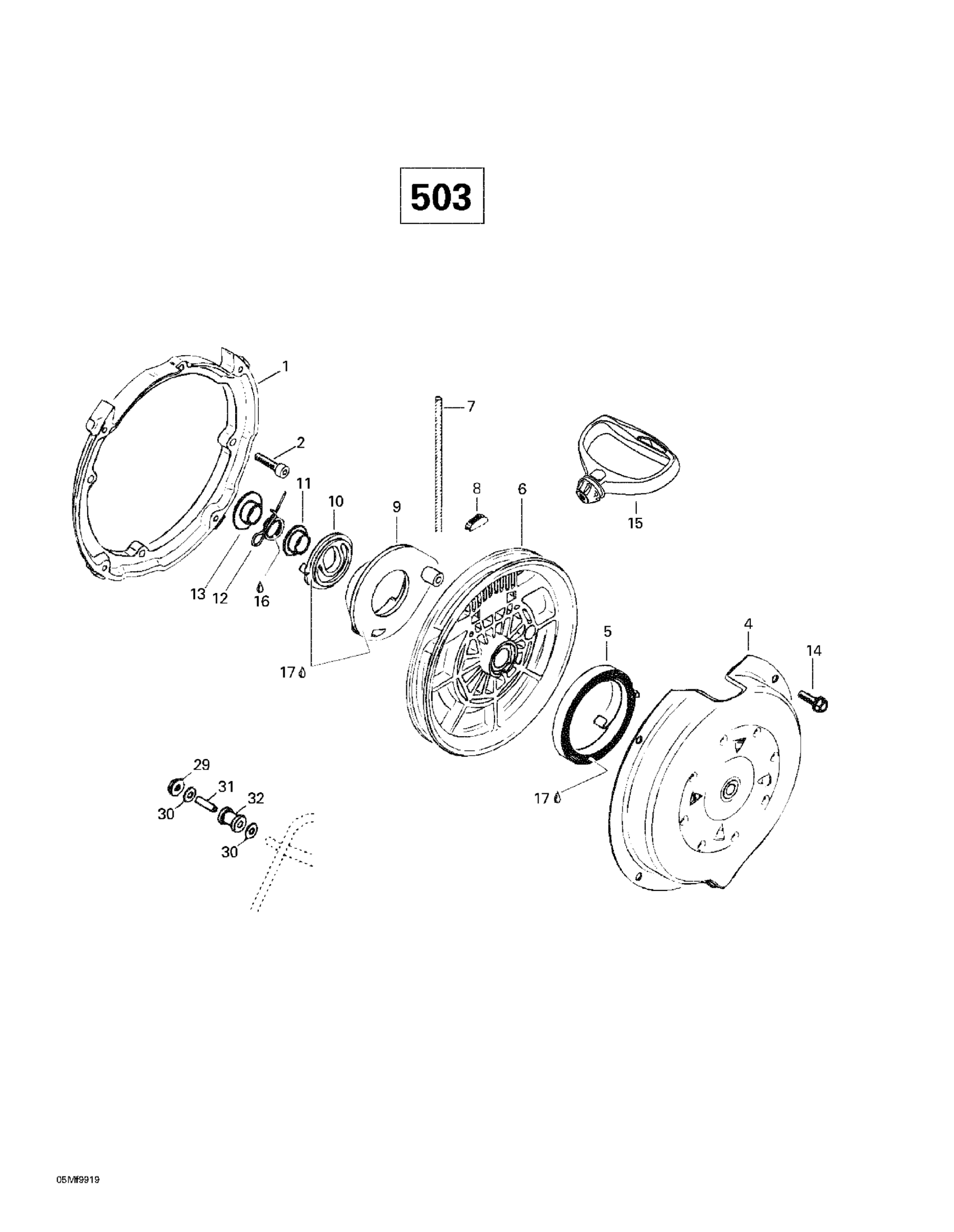

Ski-Doo Skandic Super Wide Track, 1999 04- Rewind Starter (503) Diagram

Rewind Starter Ass'y | Includes 3 to 13

Flange Connector

Allen Screw M6 x 22 This part replaces 420840401.

Rewind Starter Ass'y | Includes 3 to 13

Starter Housing | Skandic 500F. Skandic 500F (SWT).

Rewind Spring

Rope Sheave

Was 412500100 Rope-Starter

Key Clamp

Pawl

PAWL LOCK - Call your local BRP dealership | Formula 500 LC.

Stage Sleeve

Pawl Spring

Stage Sleeve | Formula SL.

Not Available As Spare Part - Friction Washer

Starter Grip

Not Available As Spare Part - Friction Washer

Was 293550004 Dielectric Grease, 150 g

Hex. Elastic Stop Nut M8

Flat Washer 8 mm

Sleeve | Skandic Super Wide Track

Rubber Sleeve | Skandic Super Wide Track
