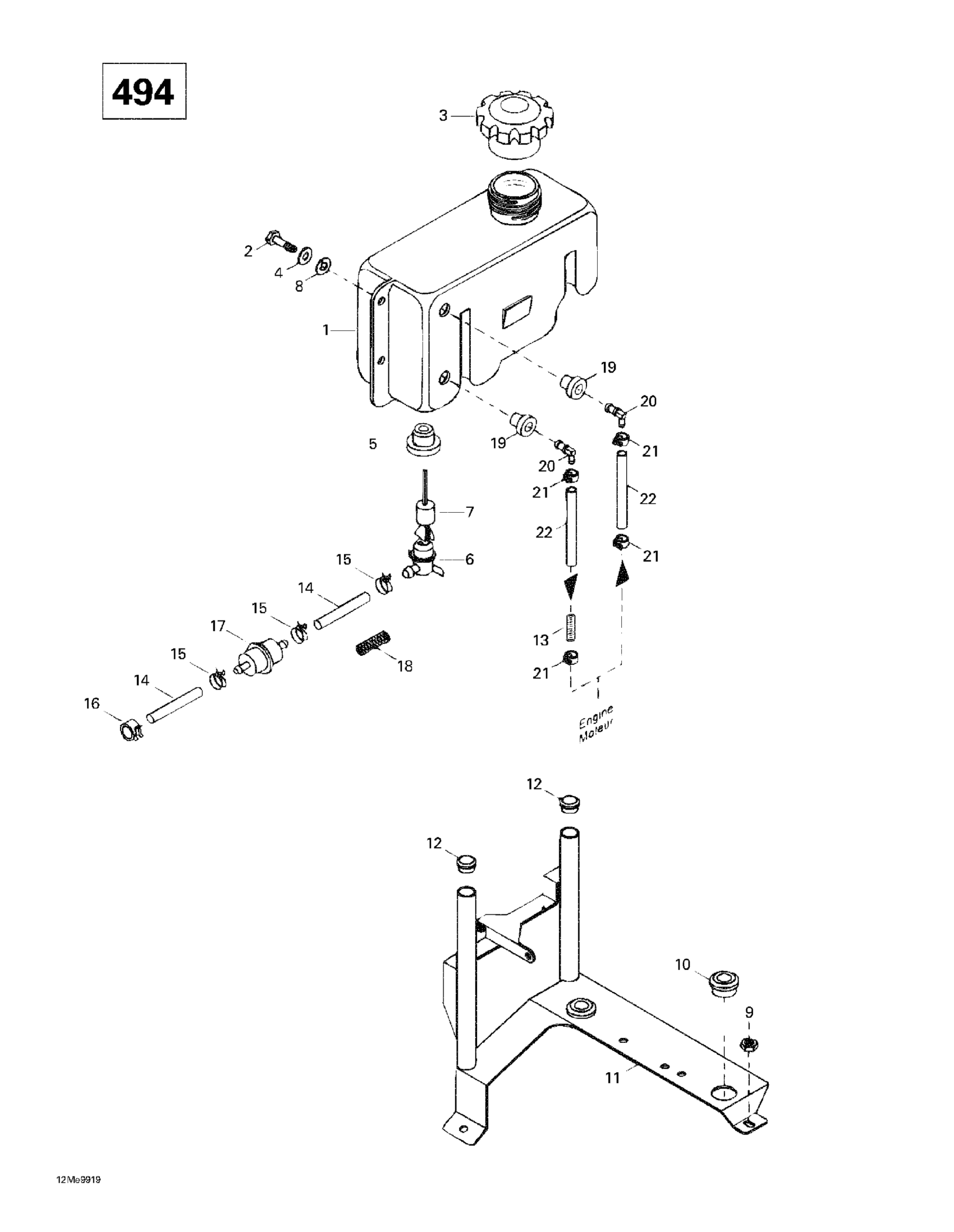

Ski-Doo Skandic Super Wide Track, 1999 Oil Tank And Support (494) Diagram

#

Description
Price

1

Oil Tank | Skandic WT LC.

M5143073

Unavailable

2

Hex. Screw M6 X 20 | XT Models

207162044

$1.49

3

CAP - Call your local BRP dealership

519000044

Unavailable

4

Washer | Skandic 500F. Skandic 500F (SWT).

M2009

Unavailable

5

Insulating Ring

570023000

$5.69

6

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

7

Float

414681900

Unavailable

8

Lock Washer M6, Black

234161471

$1.49

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

10

Grommet This part replaces M28022.

28022

$15.99

11

Support | Skandic WT LC.

M5243611

Unavailable

12

PLUG - Call your local BRP dealership

M28136

Unavailable

13

SPRING - Call your local BRP dealership

M25003

Unavailable

14

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$33.99

15

Spring Clamp

414415200

$1.49

16

Spring Clamp

414420700

$1.49

17

Filter

414536500

$4.02

18

HOUSING - Call your local BRP dealership

M28015

Unavailable

19

Grommet | Europe

707800347

$10.99

20

Elbow Fitting

414523600

$4.99

21

Spring Clamp

414655700

$1.49

22

OIL LINE - Call your local BRP dealership

414644800

Unavailable
