Description

Price

1

Carburetor VM 34 520 (MAG) | Includes 1 - 35. Skandic Wide Track LC.

403138571

Unavailable

Carburetor VM 34 519 (PTO) | Skandic Wide Track LC.

403138572

Unavailable

1

Cover

404103700

$31.99

2

Spring

404154800

$23.99

3

PLATE - Call your local BRP dealership

404103000

Unavailable

4

AIR VENT TUBE - Call your local BRP dealership

404160100

Unavailable

5

Screw With Washer

404121300

$4.14

6

NEEDLE JET J8-6DH04 - Call your local BRP dealership

404101900

Unavailable

7

E-Ring

404102400

Unavailable

8

Support-Guide | Skandic Wide Track. Skandic Super Wide Track.

404160500

Unavailable

9

Piston Valve 2.5

404128400

$127.49

10

Needle Jet (NJ P-2 159)

404100700

Unavailable

11

Gasket | Includes 1900a to 1900am

404104200

$6.38

12

PILOT JET PJ40 - Call your local BRP dealership

404109100

Unavailable

13

Lever Pin

404103300

$6.27

14

Float Arm | Skandic Wide Track. Skandic Super Wide Track.

404160700

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

O-RING - Call your local BRP dealership

404101500

Unavailable

17

Plug Screw | Skandic Wide Track. Skandic Super Wide Track.

404160600

Unavailable

18

Air Screw

404102300

$14.35

19

Spring

404101800

$4.25

20

Spring

404101700

$4.14

21

IDLE SPEED SCREW - Call your local BRP dealership

404102800

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Seat Washer

404101600

$3.29

24

Needle Valve 1.5

404147400

$42.49

25

WASHER - Call your local BRP dealership

404102200

Unavailable

26

Main Jet (MJ 240)

404100200

$8.36

Main Jet MJ 250

404100300

$8.36

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Screw With Lock Washer

404102000

$3.18

29

Not Available As Spare Part - Friction Washer

Unavailable

30

NIPPLE - Call your local BRP dealership

404127600

Unavailable

31

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

32

PLUNGER ASS'Y - Call your local BRP dealership

404160400

Unavailable

33

Packing

404117000

$3.29

34

CONNECTOR - Call your local BRP dealership

404160800

Unavailable

35

Cover

404122100

$19.49

36

CAP - Call your local BRP dealership

404154900

Unavailable

37

TOOL KIT - Call your local BRP dealership

404112000

Unavailable

38

High Altitude Kit (Not Shown) | Skandic Wide Track LC.

861769000

Unavailable

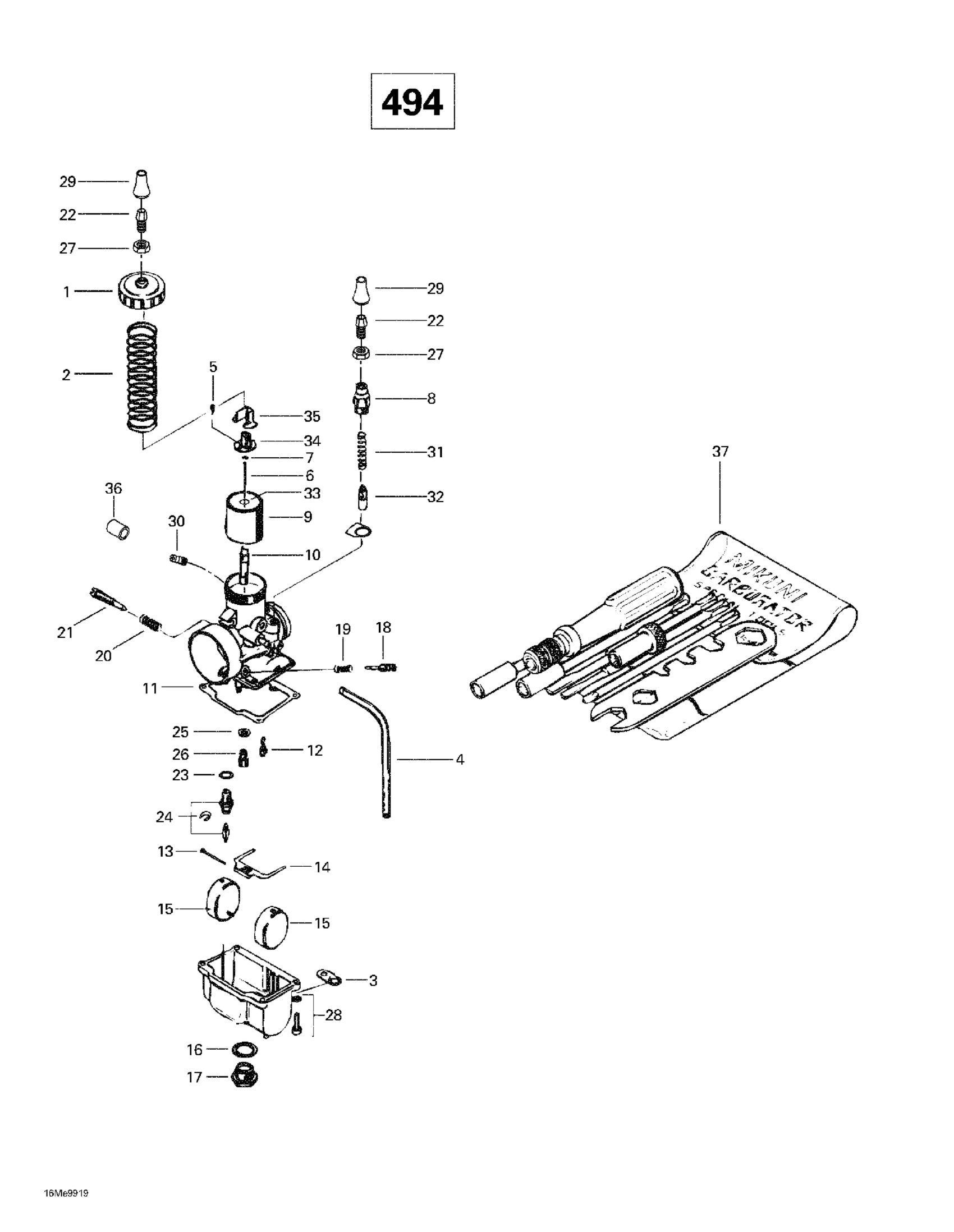

Ski-Doo Skandic Super Wide Track, 1999 02- Carburetors Wide Track LC (494) Diagram

Carburetor VM 34 520 (MAG) | Includes 1 - 35. Skandic Wide Track LC.

Carburetor VM 34 519 (PTO) | Skandic Wide Track LC.

Cover

Spring

PLATE - Call your local BRP dealership

AIR VENT TUBE - Call your local BRP dealership

Screw With Washer

NEEDLE JET J8-6DH04 - Call your local BRP dealership

E-Ring

Support-Guide | Skandic Wide Track. Skandic Super Wide Track.

Piston Valve 2.5

Needle Jet (NJ P-2 159)

Gasket | Includes 1900a to 1900am

PILOT JET PJ40 - Call your local BRP dealership

Lever Pin

Float Arm | Skandic Wide Track. Skandic Super Wide Track.

Not Available As Spare Part - Friction Washer

O-RING - Call your local BRP dealership

Plug Screw | Skandic Wide Track. Skandic Super Wide Track.

Air Screw

Spring

Spring

IDLE SPEED SCREW - Call your local BRP dealership

Not Available As Spare Part - Friction Washer

Seat Washer

Needle Valve 1.5

WASHER - Call your local BRP dealership

Main Jet (MJ 240)

Main Jet MJ 250

Not Available As Spare Part - Friction Washer

Screw With Lock Washer

Not Available As Spare Part - Friction Washer

NIPPLE - Call your local BRP dealership

SPRING - Call your local BRP dealership | MAG Side

PLUNGER ASS'Y - Call your local BRP dealership

Packing

CONNECTOR - Call your local BRP dealership

Cover

CAP - Call your local BRP dealership

TOOL KIT - Call your local BRP dealership

High Altitude Kit (Not Shown) | Skandic Wide Track LC.
