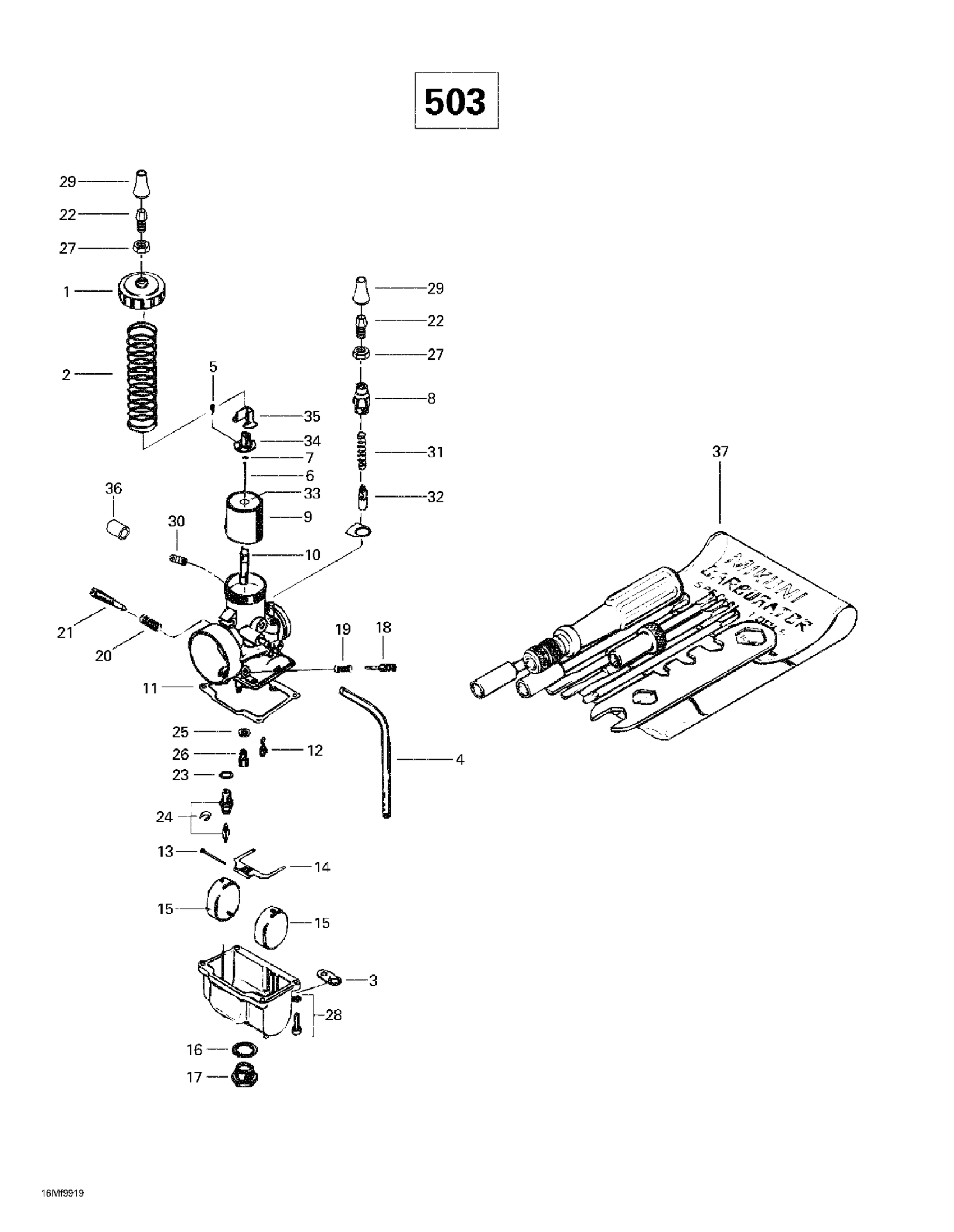

Ski-Doo Skandic Super Wide Track, 1999 02- Carburetors (503) Diagram

#

Description
Price

1

Carburetor VM 34-515 | Includes 1 - 35. Skandic Wide Track.

403138569

Unavailable

1

Carburetor VM 34-534 | Includes 1 - 35. Skandic Super Wide Track.

403138570

Unavailable

1

Cover

404103700

$31.99

2

Throttle Valve Spring | Skandic Wide Track.

404104100

Unavailable

Spring

404154800

$23.99

3

PLATE - Call your local BRP dealership

404103000

Unavailable

4

AIR VENT TUBE - Call your local BRP dealership

404160100

Unavailable

5

Screw With Washer

404121300

$4.14

6

JET NEEDLE J8 6DH2 - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).

404110400

Unavailable

7

E-Ring

404102400

Unavailable

8

Support-Guide | Skandic Wide Track. Skandic Super Wide Track.

404160500

Unavailable

9

Piston Valve 2.5

404128400

$127.49

10

Needle Jet Nj P-4, 159

404103600

Unavailable

Needle Jet NJ 159 | Skandic 500F. Skandic 500F (SWT).

404157100

Unavailable

11

Gasket | Includes 1900a to 1900am

404104200

$6.38

12

PILOT JET PJ40 - Call your local BRP dealership

404109100

Unavailable

13

Lever Pin

404103300

$6.27

14

Float Arm | Skandic Wide Track. Skandic Super Wide Track.

404160700

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

O-RING - Call your local BRP dealership

404101500

Unavailable

17

Plug Screw | Skandic Wide Track. Skandic Super Wide Track.

404160600

Unavailable

18

Air Screw

404102300

$14.35

19

Spring

404101800

$4.25

20

Spring

404101700

$4.14

21

IDLE SPEED SCREW - Call your local BRP dealership

404102800

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Seat Washer

404101600

$3.29

24

Needle Valve 1.5

404147400

$42.49

25

WASHER - Call your local BRP dealership

404102200

Unavailable

26

Main Jet Mj 210

404119100

$5.21

Main Jet MJ 185

404119500

$5.21

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Screw With Lock Washer

404102000

$3.18

29

Not Available As Spare Part - Friction Washer

Unavailable

30

NIPPLE - Call your local BRP dealership

404127600

Unavailable

31

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

32

PLUNGER ASS'Y - Call your local BRP dealership

404160400

Unavailable

33

Packing

404117000

$3.29

34

CONNECTOR - Call your local BRP dealership

404160800

Unavailable

35

Cover

404122100

$19.49

36

Cap

404156600

$17.08

37

TOOL KIT - Call your local BRP dealership

404112000

Unavailable

38

High Altitude Kit (Not Shown) | Skandic Wide Track.

861769100

Unavailable

High Altitude Kit (Not Shown) | Skandic Super Wide Track.

861769200

Unavailable
