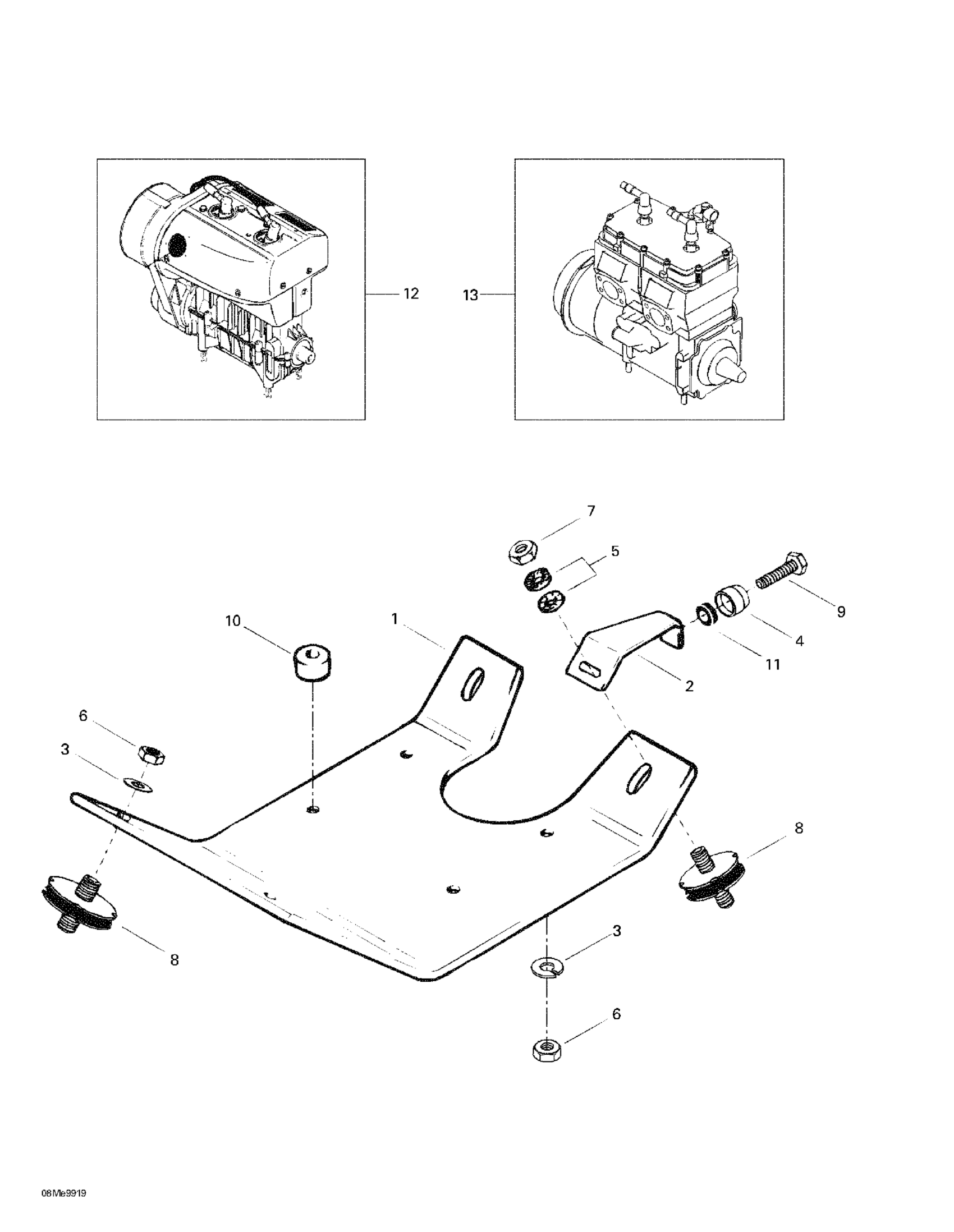

Ski-Doo Skandic Super Wide Track, 1999 01- Engine Support Diagram

#

Description

Price

1

Engine Support

M5342951

Unavailable

Engine Support | Skandic WT LC.

M5342621

Unavailable

2

Support

M539902

Unavailable

3

Lock Washer

512056700

$3.17

4

SLEEVE - Call your local BRP dealership

605449240

Unavailable

5

Lock Washer D10

20068

$2.00

6

Elastic Locking Nut M10 X 1.5

233601416

$1.69

7

Hex. Nut M10 X 1.5

232006414

$1.37

8

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

9

Hex. Screw M8 X 25

207182544

$0.90

10

Sleeve - Call Your Local BRP Dealership

M5440678

Unavailable

Sleeve | Skandic WT LC.

M5440785

Unavailable

11

Rubber Washer

M2846014

Unavailable

12

<<503>> Engine | Skandic Wide Track. Skandic Super Wide Track.

400509710

Unavailable

13

<<494>> Engine | Skandic Wide Track LC.

400409408

Unavailable
