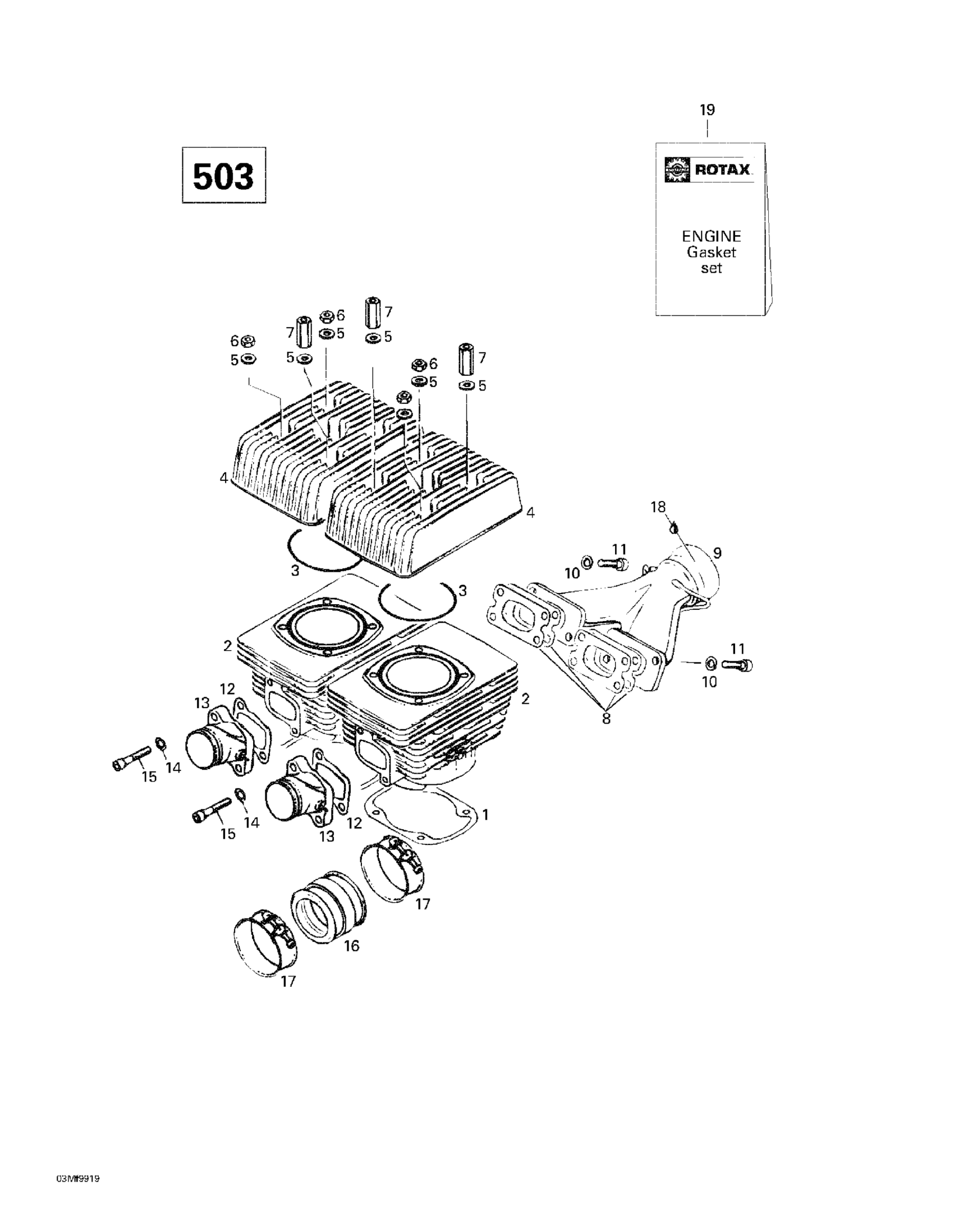

Ski-Doo Skandic Super Wide Track, 1999 01- Cylinder, Exhaust Manifold (503) Diagram

Gasket 0.4 mm

420831858

$13.16

REBUILD-CYLINDER 503CC - Call your local BRP dealership This part replaces 420923417.

421000500

Unavailable

O-Ring This part replaces 420850540.

293300026

$3.39

CYLINDER HEAD - Call your local BRP dealership

420923590

Unavailable

Flat Washer 8.4 mm

420250315

$1.15

Hex. Nut M8

232081414

$0.72

Distance Nut M8 X 47

420842204

$16.33

Gasket 1.0 mm

420831849

$8.85

EXHAUST MANIFOLD - Call your local BRP dealership

420973512

Unavailable

Washer-Lock Din.128

420945832

$1.15

Socket Head Screw M8 X 30

205083044

$1.15

INTAKE GASKET 1.0 MM - Call your local BRP dealership

420831867

Unavailable

Intake Manifold | Skandic 500F. Skandic 500F (SWT).

420867741

Unavailable

Washer-Lock Din.128

420945832

$1.15

Allen Screw M8 X 40

420840682

$3.91

Not Available As Spare Part - Friction Washer

Unavailable

Clamp

420951510

Unavailable

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

ENGINE GASKET SET - Call your local BRP dealership

420994238

Unavailable
