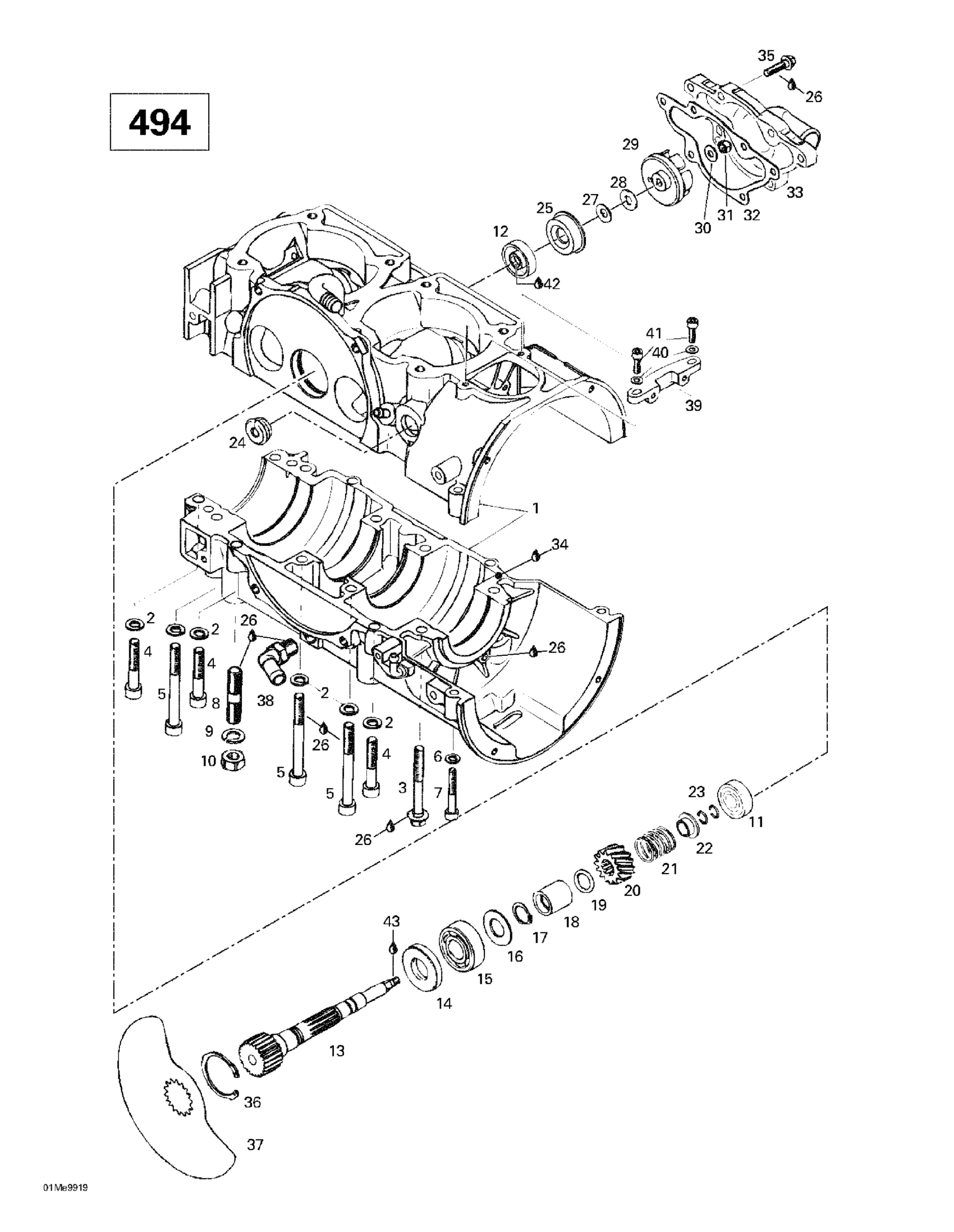

Ski-Doo Skandic Super Wide Track, 1999 Crankcase, Rotary Valve, Water Pump (494) Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 - 7.

420888181

Unavailable

2

Washer-Lock Din.128

420945832

$1.49

3

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.79

4

Socket Head Screw M8 X 45

420841561

Unavailable

5

ALLEN SCREW M8 X 75 - Call your local BRP dealership

420841831

Unavailable

6

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

7

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

420241816

Unavailable

8

Stud M10 | Skandic Wide Track LC.

420941180

Unavailable

9

Lock Washer

512056700

$3.29

10

Elastic Locking Nut M10 X 1.5

233601416

$1.69

11

Ball Bearing

420932797

$19.99

12

Oil Seal This part replaces 420850710.

420850711

$19.99

13

Rotary Valve Shaft

420837243

Unavailable

14

OIL SEAL - Call your local BRP dealership

420930580

Unavailable

15

BALL BEARING - Call your local BRP dealership

293350051

Unavailable

16

SHIM - Call your local BRP dealership

420227439

Unavailable

17

SNAP RING - Call your local BRP dealership

420845450

Unavailable

18

SPACER BUSHING - Call your local BRP dealership

420847282

Unavailable

19

O-Ring

293300024

$8.79

20

Sprocket 14Th This part replaces 420935735.

420935736

$91.99

21

SPRING - Call your local BRP dealership

420938810

Unavailable

22

SPRING SEAT - Call your local BRP dealership

420827430

Unavailable

23

CIRCLIP - Call your local BRP dealership

420845160

Unavailable

24

Cable Grommet

420860965

$14.49

25

Rotary Seal

420650371

$44.99

26

Loctite 243, 10 ml

293800060

$21.49

27

Thrust Washer

420227945

$4.09

28

Washer

420227155

Unavailable

29

WATER IMPELLER - Call your local BRP dealership

420922036

Unavailable

30

Flat Washer

224061121

$1.49

31

Locking Nut M6

420842042

Unavailable

32

Gasket

420931355

Unavailable

33

Water Pump Housing

420922551

Unavailable

34

Was 413702700 Loctite 515, 50 ml

219704462

Unavailable

35

Hex. Screw M6 X 25

420240034

$1.99

36

Lock Ring

420945880

$4.49

37

ROTARY VALVE (147 DEG.) - Call your local BRP dealership

420924508

Unavailable

38

Angular Tube

420922242

$15.49

39

Fixation

420851280

Unavailable

40

WASHER - Call your local BRP dealership

420827800

Unavailable

41

Socket Head Screw M5 X 20

420441341

$3.99

42

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

43

Sealant Loctite 648

219703000

$45.99
