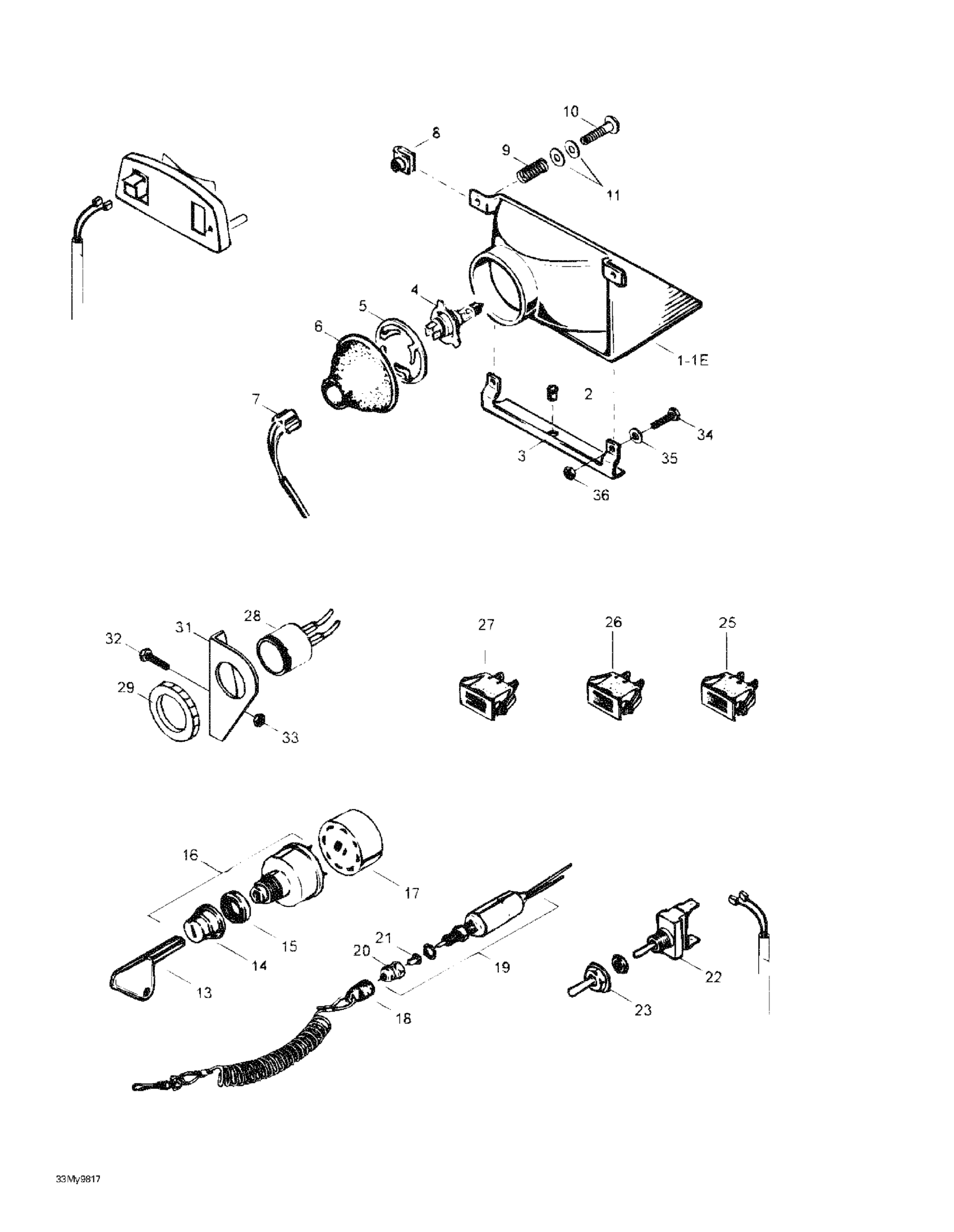

Ski-Doo Skandic Super Wide Track, 1998 Electrical System Diagram

#

Description
Price

1

HEADLAMP ASS'Y - Call your local BRP dealership | Includes 1 - 1E.

410608800

Unavailable

1B

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

1C

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

1D

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

1E

Headlamp

410608900

Unavailable

2

RUBBER STOPPER - Call your local BRP dealership

410608200

Unavailable

3

HOLDER - Call your local BRP dealership

M539864

Unavailable

4

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

5

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

6

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

7

Tab Connector Housing

M1200909

Unavailable

8

Projector Nut

572078600

Unavailable

9

Spring

517168600

$6.70

10

Screw M4 x 40

732603002

Unavailable

11

Washer

M20001

Unavailable

13

Blank Key

415129350

Unavailable

14

Switch Boot

570013700

$10.49

15

FACE NUT - Call your local BRP dealership

410112100

Unavailable

16

IGNITION SWITCH - Call your local BRP dealership | Formula Deluxe 380 F.

410111300

Unavailable

17

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

18

Cap Ass'y

515178283

$36.54

19

Brake Switch

515175653

$15.57

20

Switch Nut

515145900

$10.51

21

Plunger Cap

570151100

$9.13

22

Heat Grip Switch

410110700

$30.57

23

Switch Cover

515175281

$14.58

25

Pilot Lamp (Blue)

410109600

Unavailable

26

Pilot Lamp (Red)

410109500

Unavailable

27

Pilot Lamp, Engine Temperature | SUV 600

410109700

Unavailable

28

Back-Up Alarm

414792102

$133.55

29

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Hex. Screw M6 X 16

207161644

$0.61

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

34

Screw M5 X 16

M40247

Unavailable

Screw

M40156

Unavailable

35

Washer 5,3 mm

20008

$0.70

36

Elastic Stop Nut M5

232551414

$0.72
