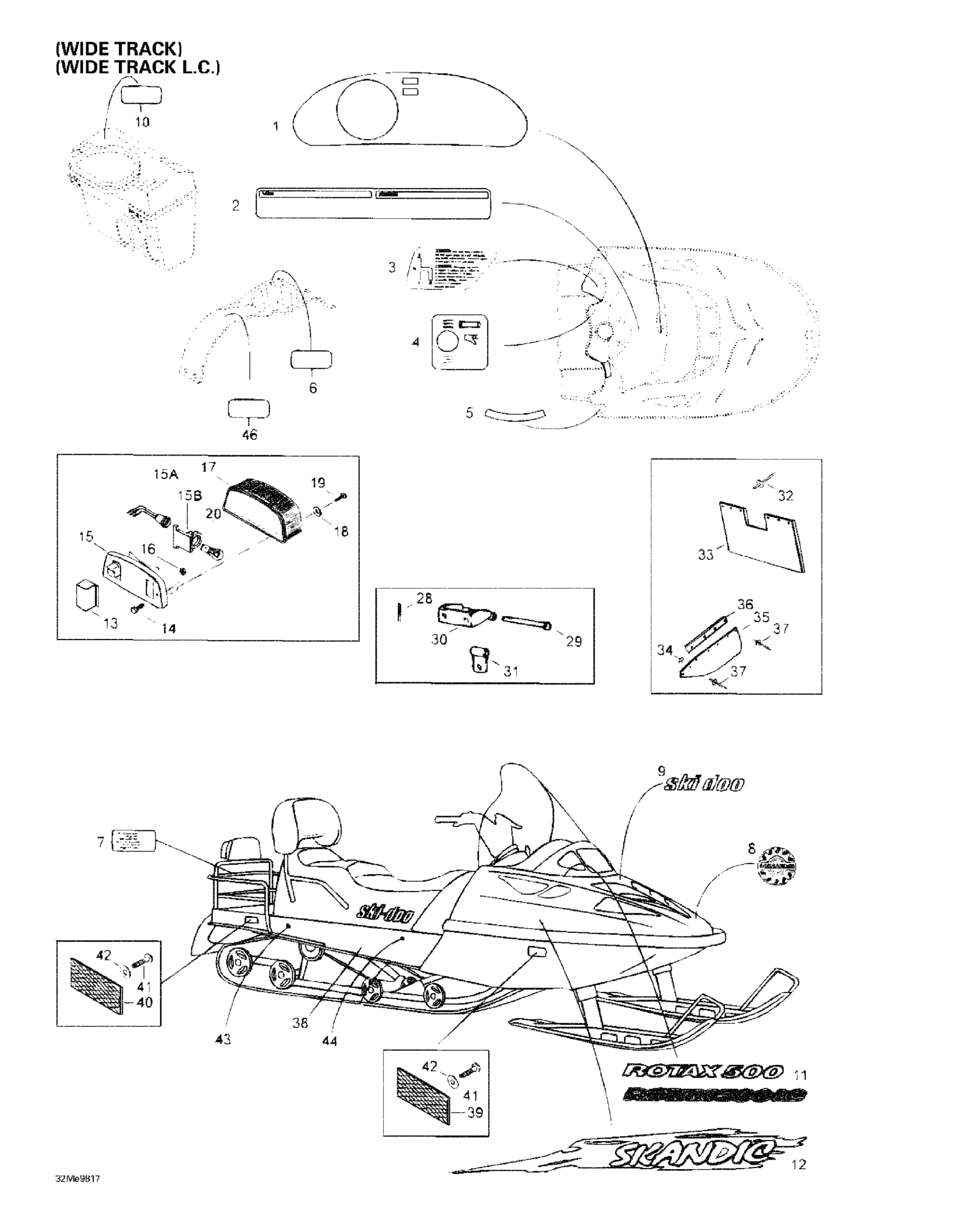

Ski-Doo Skandic Super Wide Track, 1998 Decals And Accessories Diagram

#

Description
Price

1

Dash Decal | Skandic Wide Track.

414959600

Unavailable

Dash Decal | Skandic Wide Track LC.

418000814

Unavailable

2

Warning Label

414995800

Unavailable

3

REVERSE DECAL - Call your local BRP dealership

516001201

Unavailable

4

Heat Grip Decal | Skandic 500F. Skandic 500F (SWT).

414996100

Unavailable

5

Reflector Decal Kit (Red) | Skandic Wide Track. Skandic Wide Track LC.

415018500

Unavailable

6

Warning Decal

415028900

Unavailable

7

Instruction Label (Hitch)

414998500

Unavailable

8

BRP Logo 48mm

516008738

$12.87

9

<> Decal

418000007

Unavailable

10

Warning Decal

414161500

Unavailable

11

<> Decal

418000139

Unavailable

<> Decal | Skandic Wide Track LC.

418000137

Unavailable

12

Hood Decal Kit | Skandic Wide Track. Skandic Wide Track LC.

415093000

Unavailable

13

Adaptor | Skandic 500F (SWT).

M5443460

Unavailable

14

Hex. Screw M6 X 30

207063044

$0.98

15

Taillamp Housing

414979400

Unavailable

15A

Socket

414979410

Unavailable

15B

Rubber Damper

414979411

Unavailable

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

17

Lens

414513700

$26.09

18

Washer - Call your local BRP dealership

414516400

Unavailable

19

Phillips Tapping Screw M3.9 X 25

209632540

$0.98

20

Bulb

520000758

$7.49

28

Cotter Pin

41031

$6.07

29

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

30

Hitch Bracket | Skandic WT. Skandic WT LC.

M538918

Unavailable

31

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

548745

Unavailable

32

Black, Rivet

M36036

$1.60

33

Snow guard This part replaces M538629.

538629

$98.48

34

Washer 5,3 mm

20008

$0.70

35

Side Snowguard This part replaces M5142828.

5142828

$29.07

36

Support

M5340532

Unavailable

37

Rivet

36005

$1.96

38

Frame ass'y (not Shown) | Skandic WT

M5143111

Unavailable

Frame ass'y (not Shown) | Skandic WT LC

M5143200

Unavailable

39

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

40

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable

41

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

42

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3

234451418

Unavailable

43

Frame Decal Kit | Skandic Wide Track. Skandic Wide Track LC.

415093400

Unavailable

44

<> Decal

418002200

Unavailable

46

Warning Label | Skandic Wide Track. Skandic Wide Track LC.

M5443577

Unavailable
