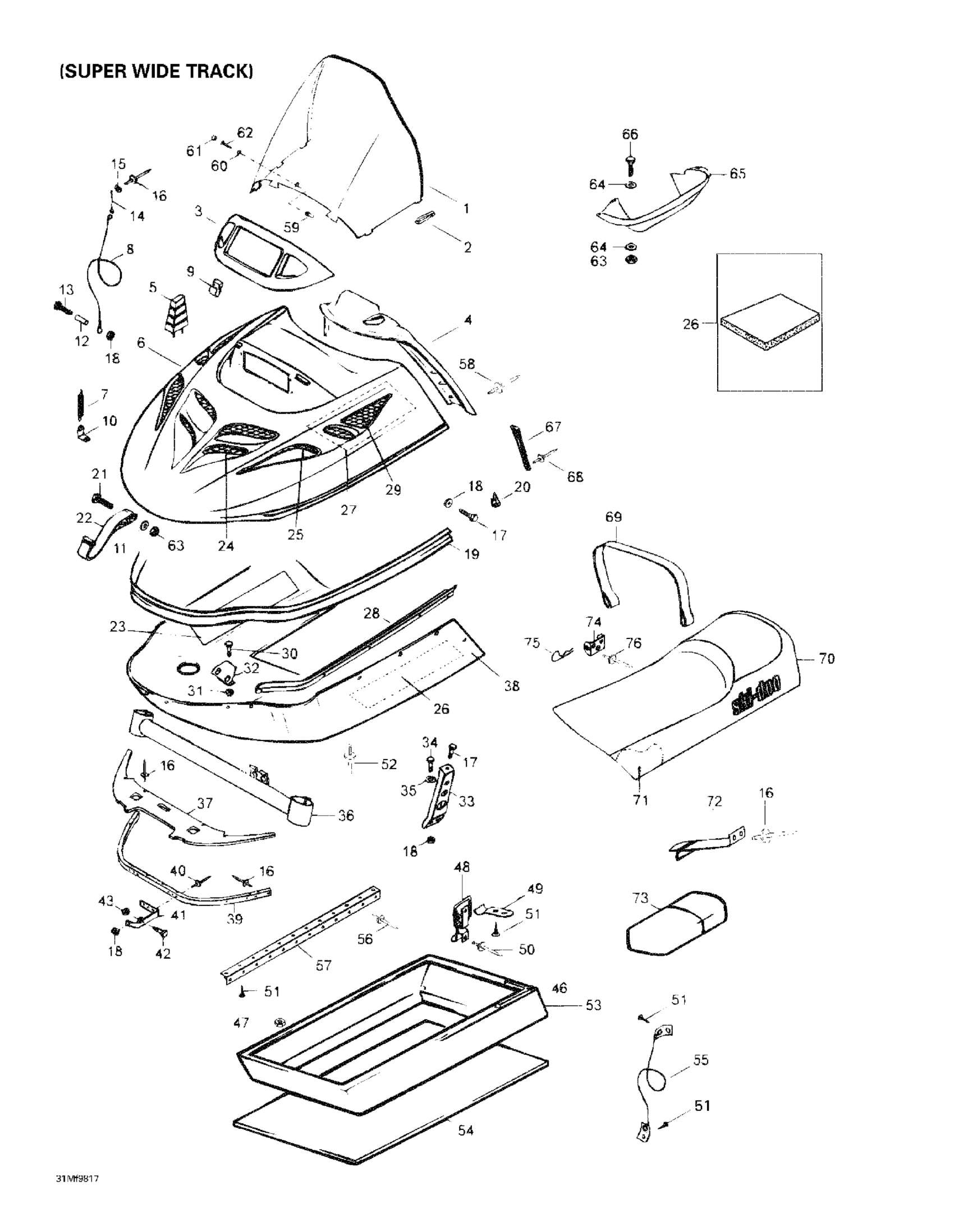

Ski-Doo Skandic Super Wide Track, 1998 09- Cab, Console, Seat 2 Diagram

#

Description
Price

1

Windshield | Skandic Super Wide Track.

M5342436

Unavailable

2

Windshield Latch

570023800

$4.49

3

Lamp Moulding | Skandic Super Wide Track.

M5342012

Unavailable

4

Dash | Skandic 500F.

M5341435

Unavailable

5

Windshield Support

570277900

Unavailable

6

Hood | Skandic Super Wide Track.

M5142857

Unavailable

7

Spring This part replaces M5442675.

5442675

$14.99

8

Retainer Cable | SUV 600

M5342674

Unavailable

9

Clip

414227300

$1.67

10

SPRING PLATE - Call your local BRP dealership

M5443123

Unavailable

11

Flat Washer 6 mm

234062410

$0.77

12

Spacer | Skandic Super Wide Track.

M5442867

Unavailable

13

Hex. Screw M6 X 40

207064044

$1.48

14

Cable Keeper

M5442870

Unavailable

15

Washer 5,3 mm

20008

$0.74

16

Rivet

36005

$2.11

17

Vis *Screw

M40078

Unavailable

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

Front Bumper

M5242798

Unavailable

20

RH Cap

M549096R

Unavailable

LH Cap

M549096L

Unavailable

21

SCREW - Call your local BRP dealership

M40193

Unavailable

22

Hinge This part replaces M5343075.

5343075

$36.99

23

Reflective Sheet | Skandic Super Wide Track.

M5340724

Unavailable

24

Front Grill

M5142669

Unavailable

25

RH Lower Grill

M5242672

Unavailable

LH Lower Grill

M5342673

Unavailable

26

Acoustic Foam

414631900

Unavailable

27

Sheet Reflective | Skandic SWT.

M5343227

Unavailable

28

LH Hood Guide

M5242803

Unavailable

RH Hood Guide

M5242804

Unavailable

29

RH UPPER GRILL - Call your local BRP dealership

M5242671

Unavailable

LH Upper Grill | SUV 550

M5242670

Unavailable

30

SCREW M5X12 - Call your local BRP dealership

M40063

Unavailable

31

NUT M5 - Call your local BRP dealership

M33062

Unavailable

32

Hood Guide

M5443217

Unavailable

33

SUPP.-BUMPER - Call your local BRP dealership

M5342509

Unavailable

34

Screw M6 x 12 | Skandic Wide Track. Skandic Wide Track LC.

M40219

Unavailable

35

Lock Washer M6, Black

234161471

$0.53

36

Face Bar | Skandic Super Wide Track.

M5242732

Unavailable

37

COVER - Call your local BRP dealership

605252352

$109.99

38

Bottom Pan | Skandic Super Wide Track.

M5342500

Unavailable

39

SUPPORT-FRONT - Call your local BRP dealership | Includes 6 to 8 This part replaces M5246120.

5246120

$179.99

40

Rivet

M36489

Unavailable

41

Hinge

M5342234

Unavailable

Hinge

M5342345

Unavailable

42

SCREW M6 X 45 - Call your local BRP dealership

M40084

Unavailable

43

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

46

Gasket Tape | Skandic 500F (SWT).

M39057

Unavailable

47

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

48

Lock | Skandic SWT.

M21138

Unavailable

49

Counter Spring | Skandic SWT.

M5442236

Unavailable

50

RIVET - Call your local BRP dealership

M36002

Unavailable

51

Screw | Skandic 500F (SWT).

M40191

Unavailable

52

Black, Rivet

M36036

$1.69

53

Seat Base | Skandic SWT.

M5243102

Unavailable

54

Cushion | Skandic SWT.

M5340529

Unavailable

55

Seat Retainer Cable

293750070

$12.99

56

Black, Rivet

M36036

$1.69

57

Hinge | Skandic SWT.

M5340913

Unavailable

58

Black Rivet

36037

$1.48

59

NUT M5 - Call your local BRP dealership

250100018

$6.99

60

Retainer cap | Skandic Super Wide Track.

M282002

Unavailable

61

Snap Cap | Skandic Super Wide Track.

M282003

Unavailable

62

Screw M5 x 30 | Skandic Super Wide Track.

M40171

Unavailable

63

Elastic Stop Nut M6

232561414

$0.55

64

Flat Washer 6 mm

234062410

$0.77

65

Air Duct | Skandic Super Wide Track.

M5143122

Unavailable

66

Hex. Screw M6 X 30

207063044

$1.26

67

Hood Latch

570027100

$13.49

68

Black Rivet

36037

$1.48

69

Seat Belt

M538856

Unavailable

70

Seat Cover | Skandic Super Wide Track.

M5442552

Unavailable

71

Seat Foam | Skandic Super Wide Track.

M5442008

Unavailable

72

Spring

M539455

Unavailable

73

Tool Kit

529027900

Unavailable

74

Seat Belt Latch

M548824

Unavailable

75

Spring This part replaces M548834.

548834

$7.79

76

Rivet

36108

$1.90

77

Frame ass'y (not Shown) | Skandic WT LC

M5143200

Unavailable

Frame ass'y (not Shown) | Skandic WT

M5143111

Unavailable

Frame ass'y (not Shown) | SWT

M5142667

Unavailable
