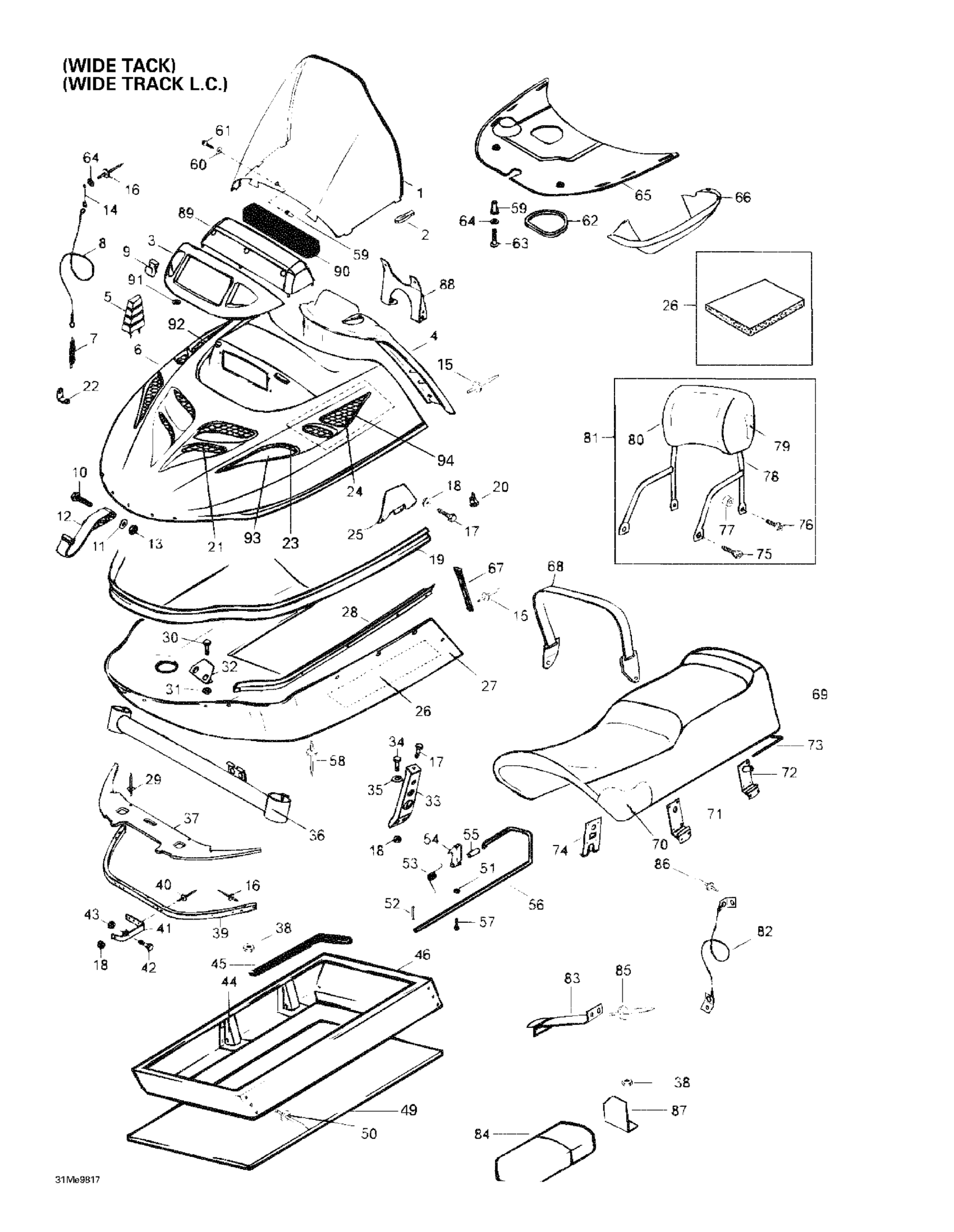

Ski-Doo Skandic Super Wide Track, 1998 Cab, Console, Seat Diagram

#

Description
Price

1

Windshield

M5241686

Unavailable

2

Windshield Latch

570023800

$4.49

3

Lamp Moulding | Skandic Wide Track. Skandic Wide Track LC.

572097200

Unavailable

4

Dash | Skandic 500F.

M5341435

Unavailable

5

Windshield Support

M5443136

Unavailable

6

Hood | Skandic Wide Track.

M5143173

Unavailable

Hood | Skandic Wide Track LC.

M5143179

Unavailable

7

Spring This part replaces M5442675.

5442675

$14.99

8

Retainer Cable | SUV 600

M5342674

Unavailable

9

Clip

414227300

$1.67

10

SCREW - Call your local BRP dealership

M40193

Unavailable

11

Flat Washer 6 mm

234062410

$0.77

12

Hinge This part replaces M5343075.

5343075

$36.99

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Elastic Stop Nut M6

232561414

$0.55

14

Cable Keeper

M5442870

Unavailable

15

Black Rivet

36037

$1.48

16

Rivet

36005

$2.11

17

Vis *Screw

M40078

Unavailable

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

Front Bumper

M5242798

Unavailable

20

RH Cap

M549096R

Unavailable

LH Cap

M549096L

Unavailable

21

Front Grill

M5142669

Unavailable

22

SPRING PLATE - Call your local BRP dealership

M5443123

Unavailable

23

RH Lower Grill

M5242672

Unavailable

LH Lower Grill

M5342673

Unavailable

24

RH UPPER GRILL - Call your local BRP dealership

M5242671

Unavailable

LH Upper Grill | SUV 550

M5242670

Unavailable

25

Hood Guide | Skandic Wide Track. Skandic Wide Track LC.

M5343483

Unavailable

26

Acoustic Foam

414631900

Unavailable

27

Bottom Pan (Black) | Skandic Wide Track.

M5142498

Unavailable

Bottom Pan (Black) | Skandic WT LC.

M5142499

Unavailable

28

LH Hood Guide

M5242803

Unavailable

RH Hood Guide

M5242804

Unavailable

29

Rivet | Skandic Wide Track.

M36076

Unavailable

Rivet

36005

$2.11

30

Screw M5 X 16

M40247

Unavailable

31

NUT M5 - Call your local BRP dealership

M33062

Unavailable

32

Hood Guide

M5443217

Unavailable

33

SUPP.-BUMPER - Call your local BRP dealership

M5342509

Unavailable

34

Screw M6 x 12 | Skandic Wide Track. Skandic Wide Track LC.

M40219

Unavailable

35

Lock Washer M6, Black

234161471

$0.53

36

Face Bar | Skandic Wide Track. Skandic Wide Track LC.

M5242733

Unavailable

37

COVER - Call your local BRP dealership

605252352

$109.99

38

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

39

SUPPORT-FRONT - Call your local BRP dealership | Includes 6 to 8 This part replaces M5246120.

5246120

$179.99

40

Rivet

M36489

Unavailable

41

Hinge

M5342234

Unavailable

Hinge

M5342345

Unavailable

42

SCREW M6 X 45 - Call your local BRP dealership

M40084

Unavailable

43

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

44

Housing | Skandic Wide Track. Skandic Wide Track LC.

M539595

Unavailable

45

Gasket Tape | Skandic Wide Track. Skandic Wide Track LC.

M39013

Unavailable

46

Seat Base | Skandic Wide Track. Skandic Wide Track LC.

M5140374

Unavailable

Sub Seat

M519394

Unavailable

49

Cushion | Skandic Wide Track. Skandic Wide Track LC.

M539873

Unavailable

50

Rivet | Skandic Wide Track. Skandic Wide Track LC.

M36079

Unavailable

51

Elastic Stop Nut M4

232541414

$0.58

52

Lock Pin | Skandic Wide Track. Skandic Wide Track LC.

M41006

Unavailable

53

Spring | Skandic Wide Track. Skandic Wide Track LC.

M549733

Unavailable

54

Lock Tongue | Skandic Wide Track. Skandic Wide Track LC.

M549605

Unavailable

55

Cap

M28019

Unavailable

56

Pivot Pin | Skandic Wide Track. Skandic Wide Track LC.

M539875

Unavailable

57

Screw

M40146

Unavailable

58

Black, Rivet

M36036

$1.69

59

NUT M5 - Call your local BRP dealership

250100018

$6.99

60

Washer 5,3 mm

20008

$0.74

61

Screw M5 X 30

M40358

Unavailable

62

Sealing foam This part replaces M5342959.

5342959

$19.99

63

Screw M5 X 30

M40808

Unavailable

64

Washer 5,3 mm

20008

$0.74

65

Air Duct

M5142622

Unavailable

66

Air Duct | Skandic Wide Track.

M5142385

Unavailable

67

Hood Latch

5342952

$24.49

68

Seat Belt | Skandic Wide Track. Skandic Wide Track LC.

M5343576

Unavailable

69

Seat Cover | Skandic Wide Track. Skandic Wide Track LC.

M5344353

Unavailable

70

Seat Foam | Skandic WT. Skandic WT LC.

M5141222

Unavailable

71

HINGE - Call your local BRP dealership

M5440581

Unavailable

72

HINGE - Call your local BRP dealership

M549874

Unavailable

Rivet | Skandic 500F. Skandic 600.

M36043

Unavailable

73

SEALING STRIP PROFIL - Call your local BRP dealership

M5440059

Unavailable

74

Lock Plate

M549732

Unavailable

75

Socket Head Screw M8 X 20

205082044

$1.15

76

Socket Head Screw M8 X 30

M40135

Unavailable

77

Spacer

M5440665

Unavailable

78

Backrest | Skandic 500F. Skandic 600.

M539877

Unavailable

79

COVER-BACKREST - Call your local BRP dealership This part replaces M5340917.

5340917

Unavailable

80

Backrest Foam

M539399

Unavailable

81

Not Available As Spare Part - Friction Washer

Unavailable

82

Seat Retainer Cable

293750070

$12.99

83

Spring

M539455

Unavailable

84

Tool Kit

529027900

Unavailable

85

Rivet

36108

$1.90

Rivet

36005

$2.11

86

RIVET - Call your local BRP dealership

M36002

Unavailable

Black Rivet

36037

$1.48

87

Plate End | Skandic Wide Track. Skandic Wide Track LC.

M549324

Unavailable

88

Support | Skandic 500F. Skandic 600.

M5343120

Unavailable

89

Intake Cover

M5142624

Unavailable

90

Filter

M5343135

Unavailable

91

Safety Washer

36084

$1.70

92

RH Cover | SUV 600

M5342990

Unavailable

93

Fan Cover | SUV 600

M5343409

Unavailable

94

LH Cover | SUV 600

M5343408

Unavailable
