Description

Price

1

RH Runner Ass’Y | Includes 1 to 5

M5142866

Unavailable

LH RUNNER ASS?Y - Call your local BRP dealership | Includes 1 to 5

M5142865

Unavailable

2

Washer

M548387

Unavailable

3

Hex. Screw M6 X 40

207064044

$1.48

4

Hex. Screw M8 x 16

207181644

$1.15

5

Spring Support

M548804

Unavailable

SPRING SUPPORT - Call your local BRP dealership

M5442112

Unavailable

6

Circlip 20X1.75 DIN471 This part replaces M31007.

293370056

$4.44

7

Wheel 135 | Includes 18 to 19

503190797

$33.99

8

Flat Washer 8 mm

234082410

$1.47

9

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

10

Axle

M539653

Unavailable

11

RH Support

M538794

Unavailable

LH Support

M538793

Unavailable

12

Bogie Shaft This part replaces M542793.

542793

$45.99

Boggie Shaft This part replaces M542794.

542794

$53.99

13

Cushion

503189534

$4.76

14

Shaft This part replaces M549695.

549695

$39.99

15

Wheel 135

503191029

$33.99

16

Ball Bearing

293350115

$12.11

17

Runner Shoe

M549582

$34.99

18

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

19

Flat Washer 6 mm

234061410

$1.36

20

Runner Protector

605348954

$19.49

21

Hex. Screw M6 X 25

207162544

$1.15

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Elastic Stop Nut M6

232561414

$0.55

23

Cross Shaft

M549718

Unavailable

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

25

Flat Washer 10 mm

234001410

$1.26

26

RUBBER STOPPER - Call your local BRP dealership

570023100

$16.99

27

Hex. Elastic Stop Nut M8

232581414

$0.56

28

Sleeve

M548841

Unavailable

29

Spring L.H. This part replaces M5241177.

5241177

$62.49

Spring R.H. This part replaces M5241178.

5241178

$54.99

Spring This part replaces M538797.

538797

$67.99

Spring R.H. This part replaces M538798.

538798

$51.99

30

Sleeve

M5440313

Unavailable

31

Circlip

M41035

Unavailable

32

Bolt-Eye Adjuster

M5441643

Unavailable

33

Pin

M5441645

Unavailable

34

ADJUSTER KNOB - Call your local BRP dealership

572034000

Unavailable

35

Plate Support

M548469

Unavailable

36

STOPPER STRAP - Call your local BRP dealership This part replaces M5442604.

5442604

Unavailable

37

SPRING - Call your local BRP dealership

414460600

Unavailable

38

Elastic Locking Nut M10 X 1.5

233601416

$1.69

39

Spring Roller This part replaces M548799.

548799

$13.49

40

Support Shaft

M549680

Unavailable

41

RIVET - Call your local BRP dealership

M544212

Unavailable

42

SHAFT - Call your local BRP dealership This part replaces M5345454.

5345454

Unavailable

43

Spring L.H. This part replaces M538805.

538805

$72.99

Spring R.H. This part replaces M5342228.

5342228

$61.49

Spring R.H. This part replaces M538806.

538806

$58.49

Spring L.H. This part replaces M5342229.

5342229

$61.49

44

Bearing This part replaces M31023.

31023

$14.22

45

SHOCK - Call your local BRP dealership This part replaces M23016.

23133

Unavailable

46

Shock Spacer - Call your local BRP dealership This part replaces M544417.

544417

$14.99

47

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

48

Elastic Locking Nut M10 X 1.5

233601416

$1.69

49

Retaining Ring 25X2 Din471(1=10Pcs) This part replaces M31001.

31001

$4.59

51

Wheel 165" | Includes 670 to 670b

503194127

$51.99

52

Ball Bearing

293350115

$12.11

53

HEX. SCREW M6 X 10 - Call your local BRP dealership

207161044

Unavailable

54

Flat Washer 6 mm

234061410

$1.36

55

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

56

Ball Bearing

293350115

$12.11

57

Retaining Ring (1=10Pcs) This part replaces M31002.

31002

$8.11

58

Shaft Sleeve This part replaces M542770.

542770

$19.99

Plastic Bushing This part replaces M541528.

541528

$4.00

59

Reararm - Call your local BRP dealership This part replaces M5343493.

5343493

Unavailable

Bras Arr*Rear Arm This part replaces M5348213.

5348213

$519.49

60

Shaft Sleeve This part replaces M542770.

542770

$19.99

62

Swing shaft - Call your local BRP dealership This part replaces M549656.

549656

Unavailable

64

Front Arm Welded | Skandic WT. Skandic WT LC.

M5242657

Unavailable

ARM-FRONT WELD - Call your local BRP dealership

M5242808

Unavailable

65

Hex. Screw M10 X 40

207004044

$4.76

66

Elastic Locking Nut M10 X 1.5

233601416

$1.69

67

Shaft This part replaces M5343492.

5343492

$80.49

REAR ARM SHAFT - Call your local BRP dealership This part replaces M5340577.

5340577

$85.99

68

Spacer This part replaces M545758.

545758

$27.99

69

Crank Arm R.H. This part replaces M5440350.

5440350

$88.99

72

Hex. Screw M8 X 45

207084544

$1.48

73

Rubber Stopper - Call your local BRP dealership This part replaces M535455.

535455

Unavailable

74

Adjustment Plate This part replaces M5440645.

5440645

$17.99

75

Crank Arm Lh This part replaces M5440349.

5440349

$76.99

76

Hex. Elastic Stop Nut M8

232581414

$0.56

77

Sleeve

M541815

Unavailable

78

Axle This part replaces M541816.

541816

$60.49

79

Support For Rearaxle Lh This part replaces M539672.

539672

$88.99

80

Support For Rearaxle Rh This part replaces M539673.

539673

$88.99

81

BOLT-EYE ADJUSTER - Call your local BRP dealership This part replaces M5440377.

5440377

$58.99

82

Cup Spring This part replaces M25004.

25004

$3.69

83

SLEEVE - Call your local BRP dealership

M5443285

Unavailable

Spacer This part replaces M5440422.

5440422

$27.99

84

EXTENSION TUBE LH - Call your local BRP dealership

605251783

Unavailable

LH Extension (Euro) | Skandic 500F. Skandic 600.

M5243098

Unavailable

85

Hex. Nut M10 X 1.5

232006414

$1.37

86

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

87

Protector

M548262

Unavailable

88

SCREW - Call your local BRP dealership

M40239

Unavailable

90

Spacer - Call your local BRP dealership This part replaces M546668.

546668

Unavailable

91

EXTENSION TUBE RH - Call your local BRP dealership

605251784

Unavailable

RH Extension (Euro) | Skandic 500F. Skandic 600.

M5243099

Unavailable

93

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

94

BOND WHEEL 165 - Call your local BRP dealership

570066722

Unavailable

95

Flat Washer 10 mm This part replaces M20011.

234002410

$1.48

96

Hex Sc. M10X 30 Bn73 M8.8 Zne(1=10Pcs) This part replaces M40335.

40335

$3.17

97

Spacer This part replaces M5440422.

5440422

$27.99

98

Sleeve

M5441980

Unavailable

99

SHAFT - Call your local BRP dealership

M5343284

Unavailable

Axe *Shaft

M5341979

Unavailable

100

Hex Sc. M10x 30 BN73 m8.8 MUP(1=10pcs) - Call your local BRP dealership This part replaces M40314.

40314

Unavailable

101

Shaft | Skandic Super Wide Track.

M5342041

Unavailable

102

Idler Wheel

M46027

Unavailable

103

Sleeve | Skandic Super Wide Track.

M541776

Unavailable

104

Screw

M40316

Unavailable

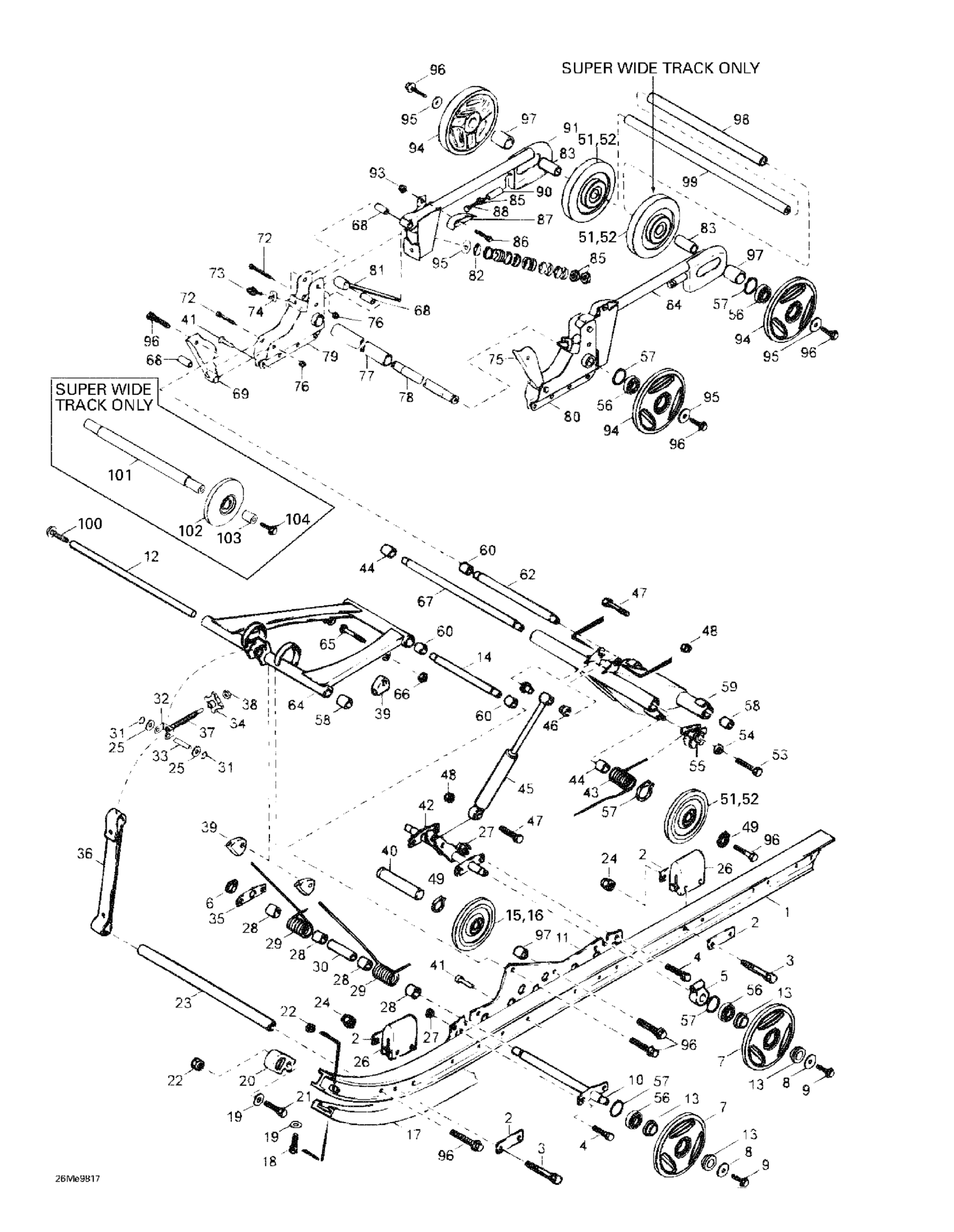

Ski-Doo Skandic Super Wide Track, 1998 08- Rear Suspension Diagram
