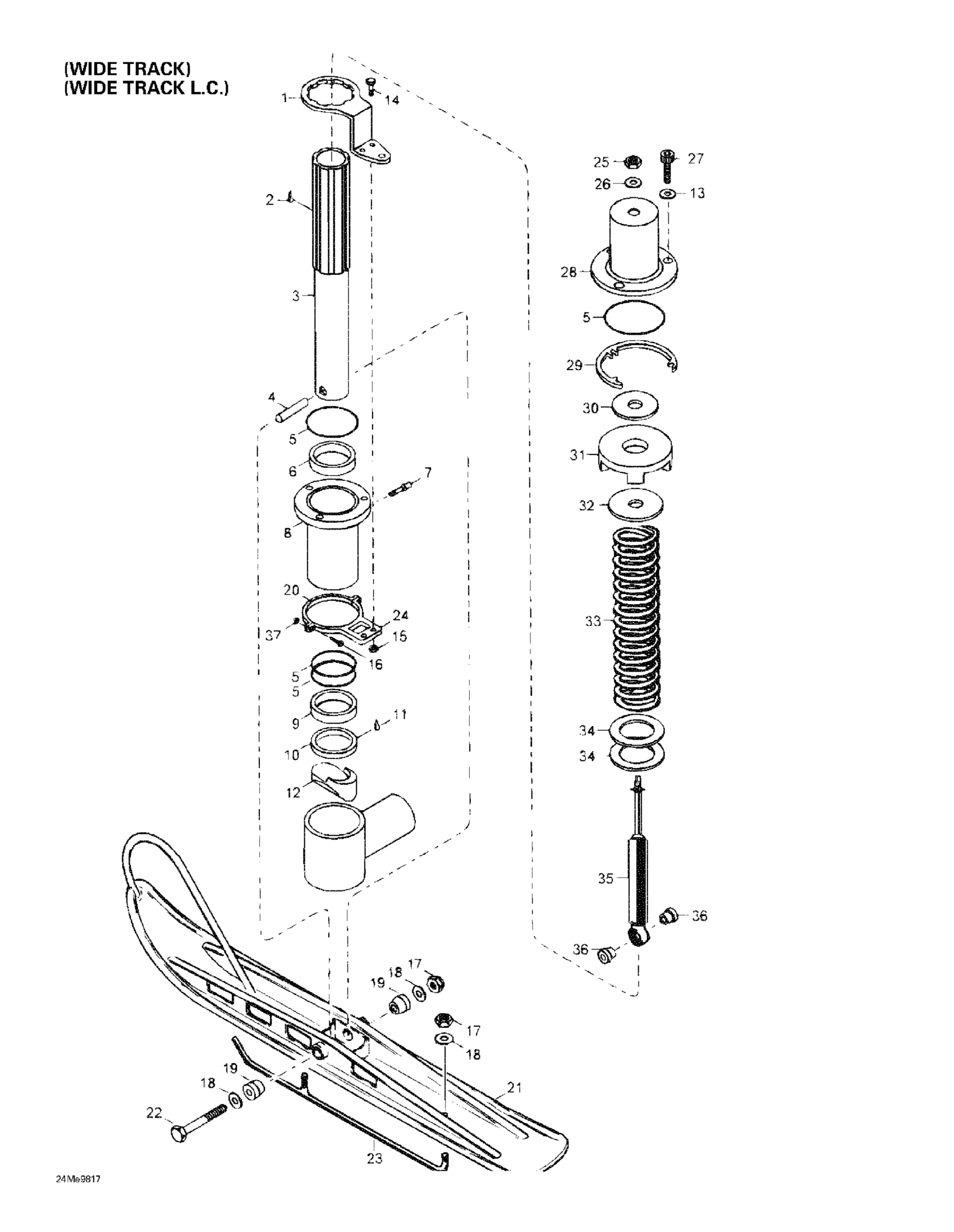

Ski-Doo Skandic Super Wide Track, 1998 Front Suspension And Ski Diagram

#

Description
Price

1

Arm-Steering | Skandic Wide Track. Skandic Wide Track LC.

M5242279

Unavailable

3

Skileg 8 GR - Call your local BRP dealership This part replaces M5245362.

5245362

Unavailable

4

Ski Cushion | SWT, WTLC This part replaces M549716.

549716

$38.78

5

O-Ring | Skandic Wide Track. Skandic Wide Track LC.

M5442911

Unavailable

6

Upper Cushion

414803100

$8.16

7

Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership This part replaces M34011.

34011

Unavailable

8

Leg Housing | Skandic Wide Track. Skandic Wide Track LC.

M5242738

Unavailable

9

Lower Cushion

414803200

$11.36

10

Seal - Call your local BRP dealership This part replaces M316373.

316373

Unavailable

12

STOPPER - Call your local BRP dealership | SWT, WTLC

M5341750

Unavailable

13

Lock Washer 8 mm

234181401

$0.87

14

Hex. Screw M6 X 25

207162544

$1.01

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

16

Screw

M40146

Unavailable

17

Elastic Locking Nut M10 X 1.5

233601416

$1.63

18

Flat Washer 10 mm

234001410

$0.98

19

Cone Rubber | SWT, WTLC This part replaces M547543.

547543

$13.54

20

Support Ass'Y This part replaces M5344180.

619380015

$44.75

21

Welded Ski

M5241710

Unavailable

22

Screw Hex. M10 x 110 | Skandic Wide Track. Skandic Wide Track LC.

M40240

Unavailable

23

Carbide Ski Runner | Skandic Wide Track. Skandic Wide Track LC.

M5342119

Unavailable

24

Support Ass'Y This part replaces M5344180.

619380015

$44.75

25

Hex. Nut M10 X 1.5

232006414

$1.11

26

Flat Washer 10 mm

234001410

$0.98

27

Socket Head Screw M8 X 20

205082044

$1.06

28

Welded Cover | Skandic Wide Track. Skandic Wide Track LC.

M5242142

Unavailable

29

SPACER - Call your local BRP dealership

503145600

Unavailable

30

Absorberfibber washer - Call your local BRP dealership

605455680

Unavailable

31

Stopper

570025800

$12.27

32

Absorberfibber washer - Call your local BRP dealership

605455680

Unavailable

33

Spring This part replaces M5241330.

5241330

$64.90

34

Washer This part replaces M549493.

549493

$13.18

35

Shock

M23018

Unavailable

36

Cushion

572034500

$9.69

37

Elastic Stop Nut M4

232541414

$0.48
