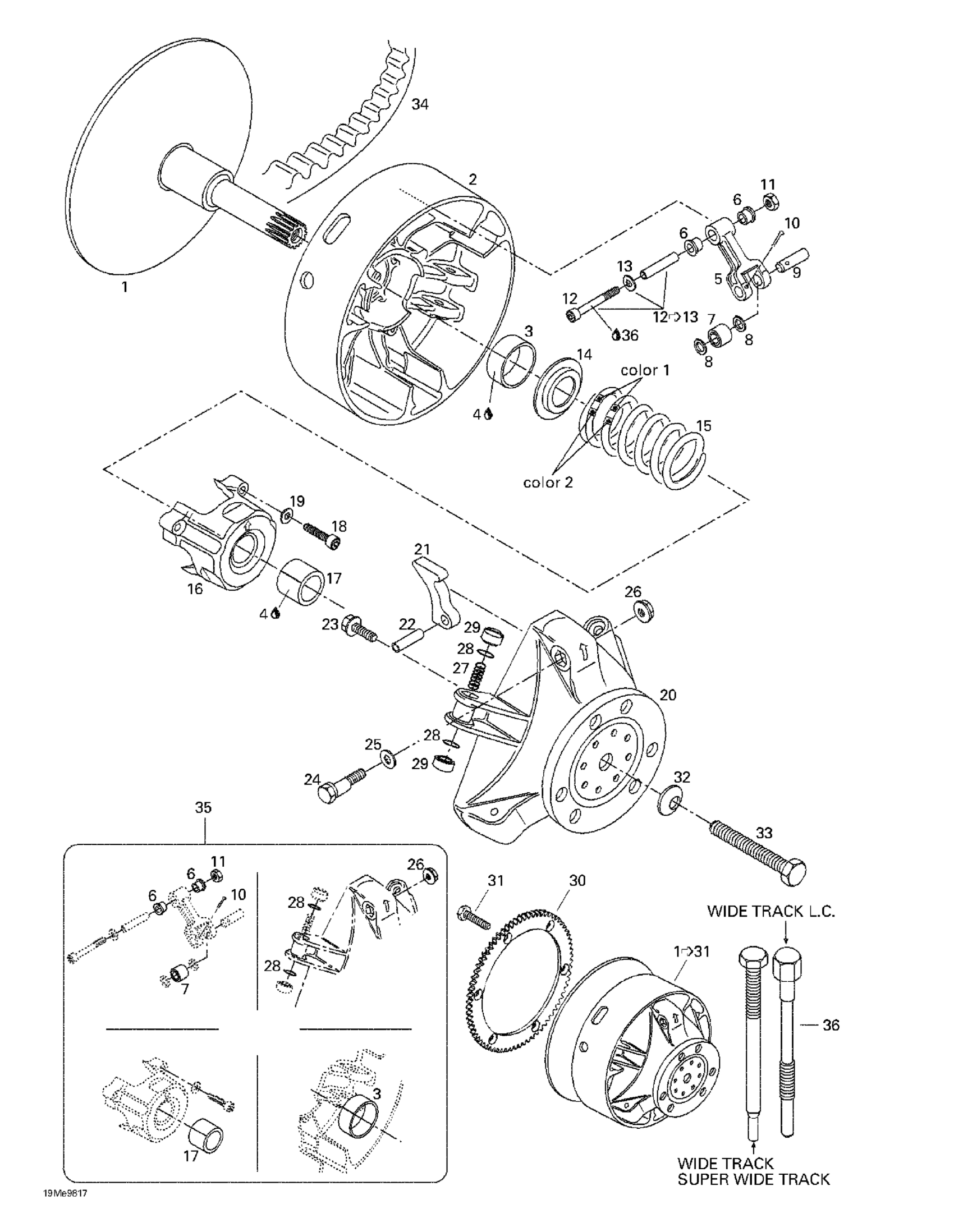

Ski-Doo Skandic Super Wide Track, 1998 Drive Pulley Diagram

#

Description
Price

1

Drive Pulley Ass'y | Includes 1 - 31. Skandic Wide Track.

417011004

Unavailable

Drive Pulley Ass'y | Skandic Super Wide Track.

417011003

Unavailable

Drive Pulley Ass'y | Skandic Wide Track LC.

417011005

Unavailable

1

Inner Half Ass'y | Formula Z 583. Formula 583 Deluxe.

417003502

Unavailable

Inner Half Ass'y | Formula 500. Formula 500 Deluxe.

417003500

Unavailable

2

OUTER HALF ASS'Y - Call your local BRP dealership | Includes 2 - 3.

417003700

Unavailable

3

Bushing

417004201

$25.99

4

Loctite 609, 10 ml

413703100

$26.99

5

Lever Ass'y | Includes 5 - 6.

417003800

Unavailable

6

Bushing

417004305

$11.52

7

Roller

417222947

$21.99

8

Stopper Washer

417004302

$15.90

9

Pin

417004309

$25.99

Pin

417004308

$13.99

10

Cotter Pin

250400060

$2.00

11

Elastic Stop Nut M6

232561414

$0.55

12

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

12

SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership

205065044

Unavailable

13

Flat Washer 6 mm

234061410

$1.36

14

Spring Seat

417005000

Unavailable

15

SPRING, YELLOW/ORANGE - Call your local BRP dealership

414689700

Unavailable

SPRING (YELLOW/BLUE) - Call your local BRP dealership

414818000

Unavailable

CLUTCH SPRING, RED/YELLOW - Call your local BRP dealership

414817500

Unavailable

16

Spring Cover Ass'y | Includes 9 - 10.

417004000

Unavailable

17

Bushing

417004501

$24.99

18

Allen Screw M6 x 40

222964066

Unavailable

19

WASHER - Call your local BRP dealership

420245370

Unavailable

20

Gouvernor Cup Ass'y

417004700

Unavailable

21

Ramp 290

417005290

Unavailable

Ramp 146 | Skandic Wide Track LC.

417005146

Unavailable

22

Pin M8 X 24

732804009

Unavailable

23

Hex. Locking Screw M6 x 18 | Formula Deluxe 500.

732601249

Unavailable

24

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

25

Washer

417005600

$4.09

26

Hex. Flange Nut M6

233061414

$1.68

27

Spring

417005700

$4.76

28

O-Ring

732401030

$0.98

29

Slider Shoe This part replaces 420460045.

417223021

$5.90

30

Ring Gear (86 tooth) | Skandic 500F. Skandic 500F (SWT).

415043100

Unavailable

31

Hex. Screw M8 X 16

236281684

$4.12

32

Conical Spring Washer M12

250200005

$3.27

Spring Washer 14 mm

250200006

$6.99

33

BOLT - Call your local BRP dealership

417113800

Unavailable

Drive Pulley Bolt

417120000

$65.49

34

Drive Belt

414633800

$104.99

35

Clutch Repair Kit

417008500

Unavailable

36

Puller Inner Half

529007900

$56.99

Puller This part replaces 529022400.

529000064

$71.99

37

High Altitude Kit (Not Shown) | Skandic Wide Track.

861764200

Unavailable

High Altitude Kit (Not Shown) | Skandic Super Wide Track.

861764300

Unavailable

High Altitude Kit (Not Shown) | Skandic Wide Track LC.

861764100

Unavailable
