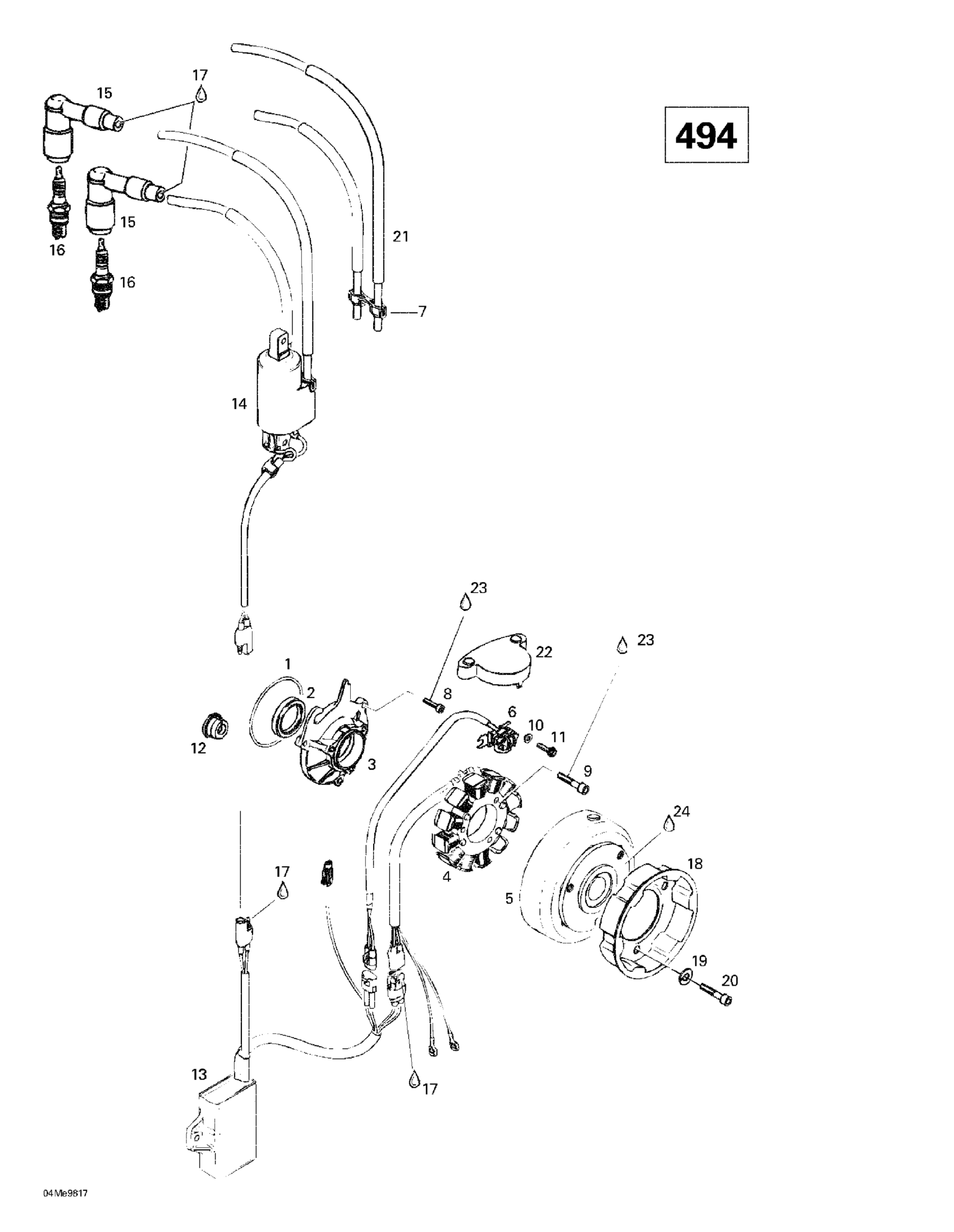

Ski-Doo Skandic Super Wide Track, 1998 03- Magneto 12V 220W (494) Diagram

#

Description
Price

1

O-RING - Call your local BRP dealership

420850430

Unavailable

2

SEAL-OIL - Call your local BRP dealership

420930695

Unavailable

3

Armature Plate

420810265

Unavailable

4

Magneto Ass'y 12V 220W | Includes 4 - 6. Formula 500. Formula 500 Deluxe.

410922000

Unavailable

4

Stator Ass'y | Formula Deluxe 583.

410922100

Unavailable

5

Magneto Flywheel | Formula 500. Formula 500 Deluxe.

410922200

Unavailable

6

Pick Up Ass'y | Formula Deluxe 583.

410921100

Unavailable

7

Plastic Clip, Spark Plug Wire

410914600

$5.61

8

SCREW-ALLEN M5X20 DIN.6912 - Call your local BRP dealership

420941540

Unavailable

9

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

Unavailable

10

WASHER - Call your local BRP dealership

420827800

Unavailable

11

Allen Screw M5 x 16

420840514

$1.90

12

Cable Grommet

420860965

$14.28

13

Amplifier-Box | Skandic Wide Track LC.

410918900

Unavailable

14

Ignition Coil | Skandic Wide Track LC.

410920500

Unavailable

15

SPARK PLUG PROTECTOR - Call your local BRP dealership | Skandic Wide Track LC.

414569200

Unavailable

16

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

17

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

18

Starting Pulley

420852590

$29.49

19

Washer-Lock Din.128

420945832

$1.15

20

Socket Head Screw M8 X 12

420841520

$1.69

21

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

22

Pick-Up Cover

420810700

Unavailable

23

Loctite 243, 10 ml

293800060

$21.49

24

Sealant Loctite 648

219703000

$45.99
