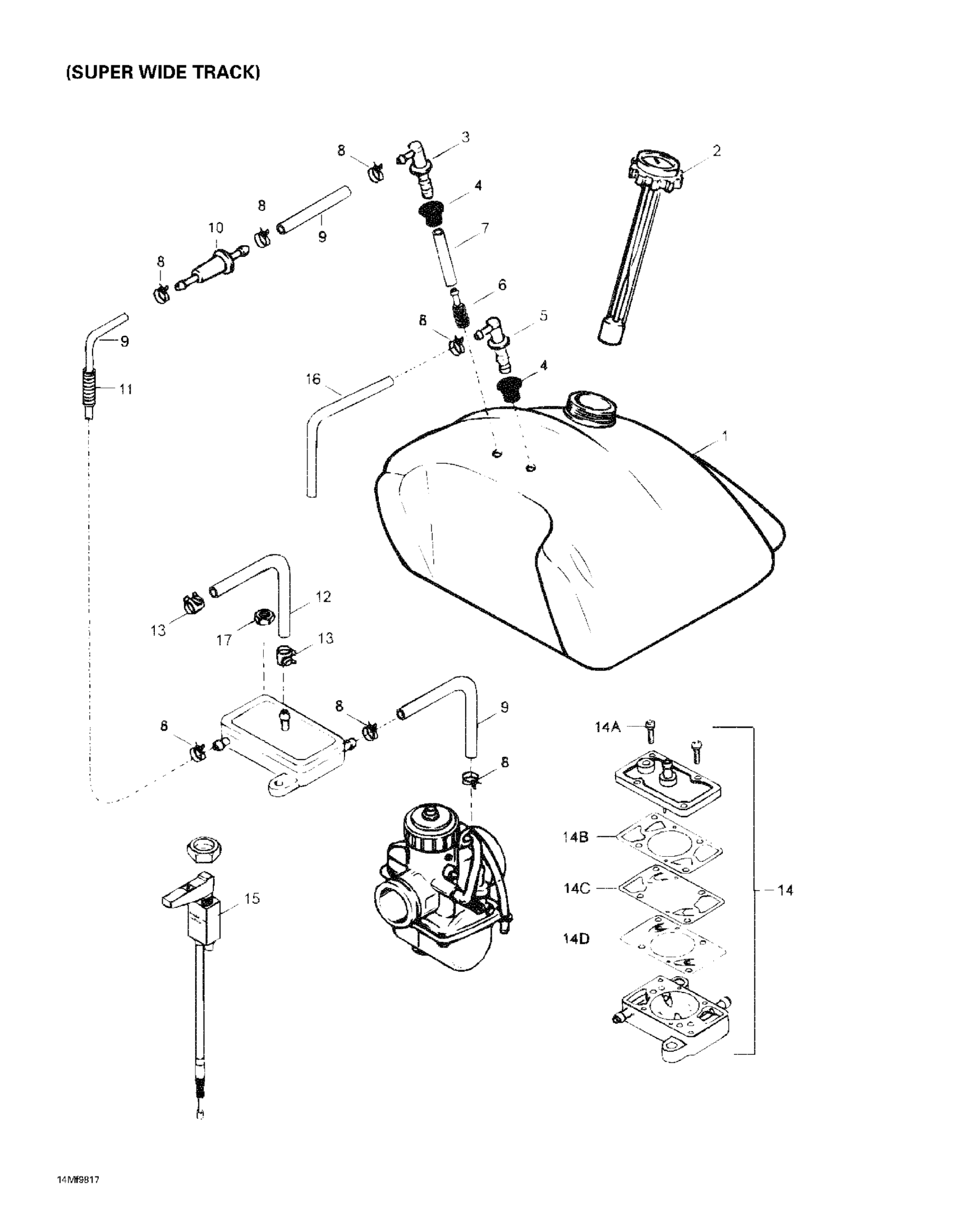

Ski-Doo Skandic Super Wide Track, 1998 Fuel System 2 Diagram

#

Description
Price

1

Fuel Tank

M519393

Unavailable

2

Fuel Tank Cap

572161200

$35.79

3

CONNECTOR-MALE - Call your local BRP dealership This part replaces M5341709.

5341709

Unavailable

4

Grommet

280000674

$4.28

5

Male Connector This part replaces M533535.

533535

$17.88

6

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

7

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

8

Spring Clamp

M27086

Unavailable

9

Hose 5/8 1000MM LONG - Call your local BRP dealership

219704397

Unavailable

10

Fuel Filter This part replaces 414363600.

605352516

$17.13

11

HOUSING - Call your local BRP dealership

M28012

Unavailable

12

Polyurethane Hose 10000Mm Long

219704410

$46.12

13

Spring Clamp

414420700

$0.66

14

FUEL PUMP DF44-226A - Call your local BRP dealership

403800800

Unavailable

14A

Screw

404118500

Unavailable

14B

Packing (Cap)

404901600

Unavailable

14C

Diaphragm

404901700

Unavailable

14D

Membrane

404901800

Unavailable

15

CABLE-CHOKE - Call your local BRP dealership | Includes 33 to 34

M524046

Unavailable

16

HOSE - Call your local BRP dealership

M39035

Unavailable

17

Elastic Stop Nut M6

232561414

$1.78
