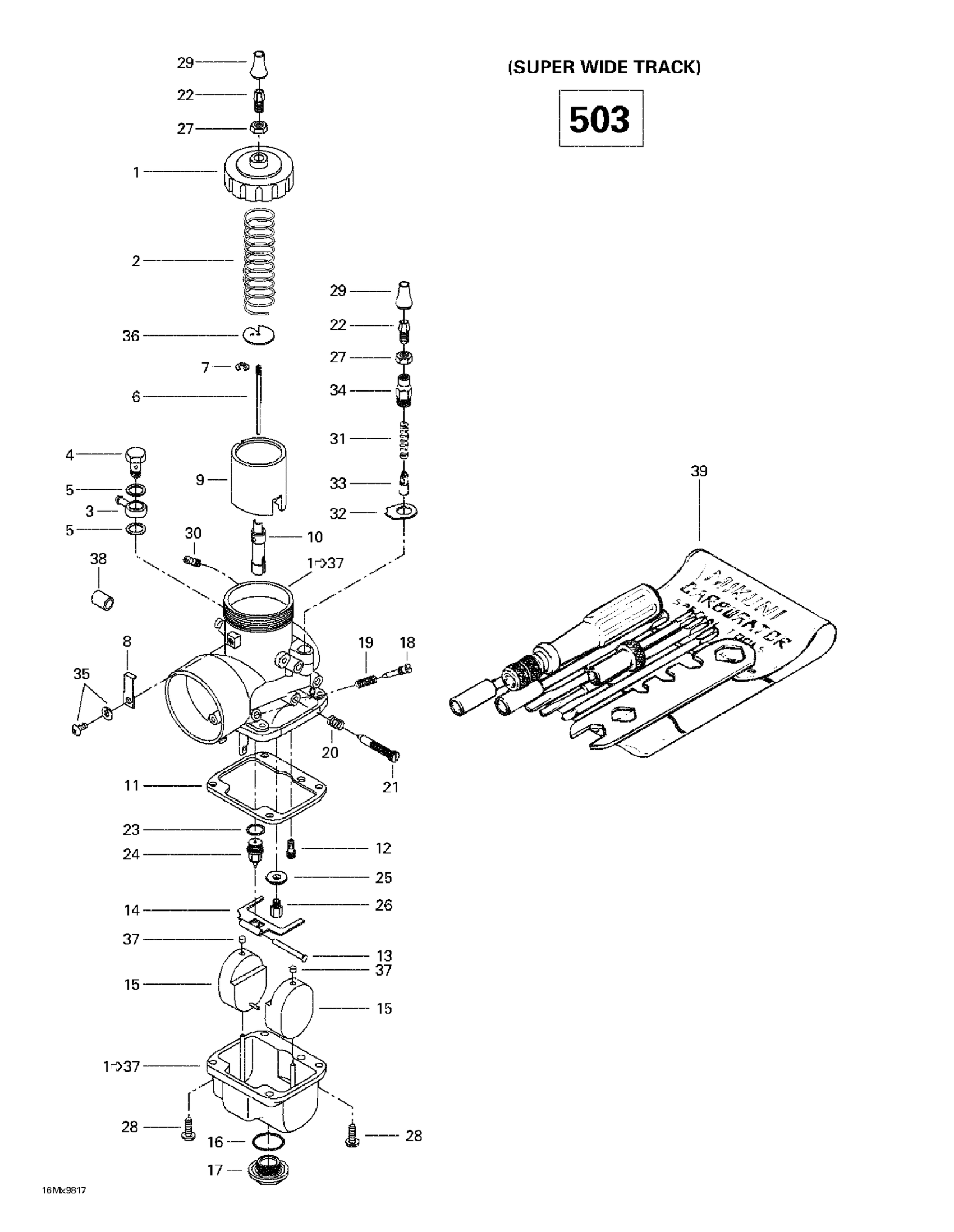

Ski-Doo Skandic Super Wide Track, 1998 02- Carburetor Super Wide Track (503) Diagram

#

Description
Price

1

Carburetor VM-32 | Skandic Super Wide Track.

403138507

Unavailable

1

Cover | Skandic Super Wide Track.

404129600

Unavailable

2

Throttle Valve Spring

404152700

Unavailable

3

BANJO FITTING - Call your local BRP dealership

404130000

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Washer-Banjo Fitting | Skandic Super Wide Track.

404158200

Unavailable

6

Jet Needle J8 6DH8 | Skandic Super Wide Track.

404124400

Unavailable

7

E-Ring

404102400

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Valve Piston 3.0

404158400

Unavailable

10

Needle Jet

404130200

Unavailable

11

Gasket pan

404117900

Unavailable

12

Pilot Jet PJ 25 | Skandic Super Wide Track.

404110300

Unavailable

13

Lever Pin

404103300

$6.27

14

Float Arm | Skandic Super Wide Track.

404117800

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

O-Ring

404107300

$9.06

17

Drain Plug Screw

404107400

$22.99

18

Air Screw

404102300

$14.35

19

Spring

404101800

$4.25

20

Spring

404101700

$4.14

21

IDLE SPEED SCREW - Call your local BRP dealership

404102800

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Washer | Skandic Super Wide Track.

404117600

Unavailable

24

Needle valve

404117700

Unavailable

25

WASHER - Call your local BRP dealership

404102200

Unavailable

26

MAIN JET, MJ 230 - Call your local BRP dealership | Skandic Super Wide Track.

404118900

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Screw

404118500

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

NIPPLE - Call your local BRP dealership

404127600

Unavailable

31

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

32

Washer

404158300

Unavailable

33

Plunger Ass'y | Formula Deluxe 380.

404127500

Unavailable

34

Support-Guide | Skandic Super Wide Track.

404129200

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

PLATE - Call your local BRP dealership

404103800

Unavailable

37

Cap

404105800

$6.38

38

CAP - Call your local BRP dealership

404154900

Unavailable

39

TOOL KIT - Call your local BRP dealership

404112000

Unavailable

40

High Altitude Kit (Not Shown) | Skandic Super Wide Track.

861764300

Unavailable
