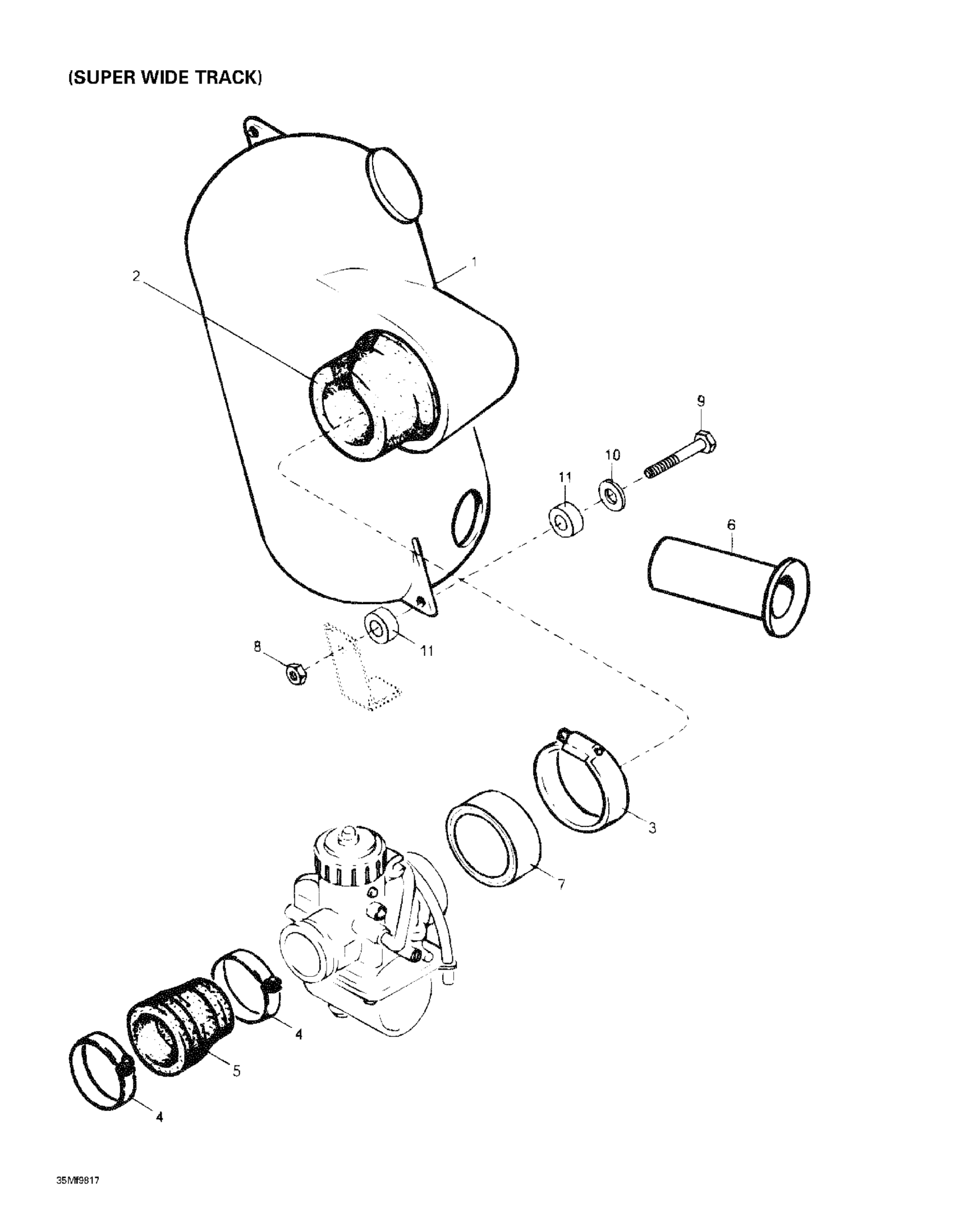

Ski-Doo Skandic Super Wide Track, 1998 Air Silencer 2 Diagram

#

Description

Price

1

Air Intake | Skandic Super Wide Track.

M5140556

Unavailable

2

Carburetor Adaptor

570136300

$34.30

3

Clamp - Call your local BRP dealership This part replaces M27018.

27018

Unavailable

4

Clamp

420951510

Unavailable

5

Flange

420867481

$13.24

6

INLET TUBE - Call your local BRP dealership This part replaces M5444445.

5444445

Unavailable

7

Air Intake Adaptor | Skandic Super Wide Track.

M548613

Unavailable

9

Hex. Screw M8 X 40

207084044

$0.92

10

Flat Washer 8 mm

234082410

$1.11

11

Rubber Sleeve | Skandic Super Wide Track.

M542109

Unavailable

12

Carburetor VM-32 | Skandic Super Wide Track.

403138507

Unavailable

13

Hex. Elastic Stop Nut M8

232581414

$0.47
