Description

Price

1

Windshield

M5241686

Unavailable

2

Windshield Latch

570023800

$4.49

3

HOLDER - Call your local BRP dealership

M539864

Unavailable

Lamp Moulding | Skandic Super Wide Track.

M5342012

Unavailable

4

Dash | Skandic Super Wide Track.

M5341434

Unavailable

Dash | Skandic Wide Track LC.

M5340821

Unavailable

5

Windshield Support

570277900

Unavailable

6

Hood (Black) | Skandic Super Wide Track.

M539385

Unavailable

Hood (Black) | Skandic Super Wide Track.

M539385

Unavailable

7

Spring

M2505171211

Unavailable

8

Retainer Cable

M5440745

Unavailable

9

Bushing

M5440681

Unavailable

10

Hood Latch

M531955

Unavailable

11

Flat Washer 6 mm

234062410

$0.77

12

Slot Sc. M4 X 25 Din966M4.8Zne(1=10Pcs) This part replaces M40168.

40168

$2.11

13

Counter Roller

605449087

$4.12

14

Flat Washer M5

234051410

$0.53

15

Elastic Stop Nut M5

232551414

$0.87

16

LH Cap

M549096L

Unavailable

RH Cap

M549096R

Unavailable

17

Screw

M40071

Unavailable

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

Front Bumper

M5241162

Unavailable

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

21

Snap Cap | Skandic Super Wide Track.

M282003

Unavailable

22

Lower Hinge

M5440083

Unavailable

23

Washer 5,3 mm

20008

$0.74

24

Elastic Stop Nut M4

232541414

$0.58

25

Screw

M40232

Unavailable

26

Upper Hinge

M529926

Unavailable

27

Hex. Screw M8 x 16

207181644

$1.15

28

Guide-Hood

M546852

Unavailable

29

Rubber Guide

M5442073

Unavailable

31

LH Guide

M549251

Unavailable

RH Guide

M549250

Unavailable

32

Guide-Hood

M542471

Unavailable

33

Rubber Guide

M5442095

Unavailable

34

Seat Belt

M538856

Unavailable

Belt-Seat | Skandic Wide Track LC.

M5340171

Unavailable

35

COVER-BACKREST - Call your local BRP dealership This part replaces M5340917.

5340917

Unavailable

36

Backrest Foam

M539399

Unavailable

37

Backrest-Frame | Skandic Super Wide Track.

M5241820

Unavailable

Backrest | Skandic 500F. Skandic 600.

M539877

Unavailable

38

Locking Device | Skandic Super Wide Track.

M21134

Unavailable

Socket Head Screw M8 X 20

205082044

$1.15

40

Spacer

M5440665

Unavailable

41

Seat | Skandic Super Wide Track.

M5341299

Unavailable

Seat Foam | Skandic WT. Skandic WT LC.

M5141222

Unavailable

42

Hinge | Skandic SWT.

M5340913

Unavailable

43

Not Available As Spare Part - Friction Washer

Unavailable

SEALING STRIP PROFIL - Call your local BRP dealership

M5440059

Unavailable

44

Black, Rivet

M36036

$1.69

45

Screw | Skandic 500F (SWT).

M40191

Unavailable

46

Screw | Skandic Super Wide Track.

M40182

Unavailable

47

Counter Spring | Skandic SWT.

M5442236

Unavailable

48

Retainer cap | Skandic Super Wide Track.

M282002

Unavailable

49

Washer 5,3 mm

20008

$0.74

50

Lock | Skandic SWT.

M21138

Unavailable

51

Heat Cover

M5341799

Unavailable

52

Socket Head Screw M8 X 30

M40135

Unavailable

53

Face Bar

M529485

Unavailable

54

Support

M5340470

Unavailable

55

Screw M5 x 30 | Skandic Super Wide Track.

M40171

Unavailable

56

Bottom Pan Support

M5141369

Unavailable

57

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

58

Flat Washer 6 mm

234062410

$0.77

59

Bottom Pan (Black) | Skandic Super Wide Track.

M5340510

Unavailable

Bottom Pan (Black) | Skandic Wide Track LC.

M5141301

Unavailable

60

NUT M5 - Call your local BRP dealership

250100018

$6.99

61

Seat Retainer Cable

293750070

$12.99

ton | Skandic Wide Track LC.

M5440747

Unavailable

62

Welded Seat Base | Skandic Super Wide Track.

M5242254

Unavailable

Welded Seat Base | Skandic Wide Track LC.

M539764

Unavailable

64

Cushion | Skandic SWT.

M5340529

Unavailable

Cushion | Skandic Wide Track. Skandic Wide Track LC.

M539873

Unavailable

65

Spring

M539455

Unavailable

67

Tool Box Kit | Skandic Super Wide Track.

M549690

Unavailable

Tool Box Kit | Skandic Wide Track LC.

529019700

Unavailable

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable

68

Air Duct

M539894

Unavailable

69

Elastic Stop Nut M5

232551414

$0.87

70

Screw

M40156

Unavailable

71

Flat Washer M5

234051410

$0.53

72

Washer

M20001

Unavailable

73

Nut

M33001

Unavailable

74

Rivet

36005

$2.11

75

Black, Rivet

M36036

$1.69

76

Rivet | Skandic Wide Track. Skandic Wide Track LC.

M36079

Unavailable

77

Screw | Skandic Super Wide Track.

M40182

Unavailable

78

Rivet

36108

$1.90

79

Not Available As Spare Part - Friction Washer

Unavailable

80

Not Available As Spare Part - Friction Washer

Unavailable

81

Not Available As Spare Part - Friction Washer

Unavailable

82

Not Available As Spare Part - Friction Washer

Unavailable

83

Not Available As Spare Part - Friction Washer

Unavailable

84

Not Available As Spare Part - Friction Washer

Unavailable

85

Not Available As Spare Part - Friction Washer

Unavailable

86

Not Available As Spare Part - Friction Washer

Unavailable

87

Not Available As Spare Part - Friction Washer

Unavailable

88

Seat Cover | Skandic Wide Track LC.

M5341386

Unavailable

89

Pivot Pin | Skandic Wide Track. Skandic Wide Track LC.

M539875

Unavailable

90

Lock Tongue | Skandic Wide Track. Skandic Wide Track LC.

M549605

Unavailable

91

Lock Plate

M549732

Unavailable

92

Lock Pin | Skandic Wide Track. Skandic Wide Track LC.

M41006

Unavailable

93

Elastic Stop Nut M4

232541414

$0.58

94

Screw

M40146

Unavailable

95

Gasket Tape | Skandic Wide Track. Skandic Wide Track LC.

M39013

Unavailable

96

Housing | Skandic Wide Track. Skandic Wide Track LC.

M539595

Unavailable

97

Plate End | Skandic Wide Track. Skandic Wide Track LC.

M549324

Unavailable

98

Rivet

36005

$2.11

99

Reinforcement | Skandic Wide Track LC.

M5240851

Unavailable

100

Center Grille (not shown)

M5141354

Unavailable

101

Front Grill (not shown)

M5141355

Unavailable

102

LH Upper Grill (not shown)

M5241356

Unavailable

103

RH Upper Grille (not shown)

M5241357

Unavailable

104

Exhaust lateral grill (not shown)

M5340932

Unavailable

105

Clip

414227300

$1.67

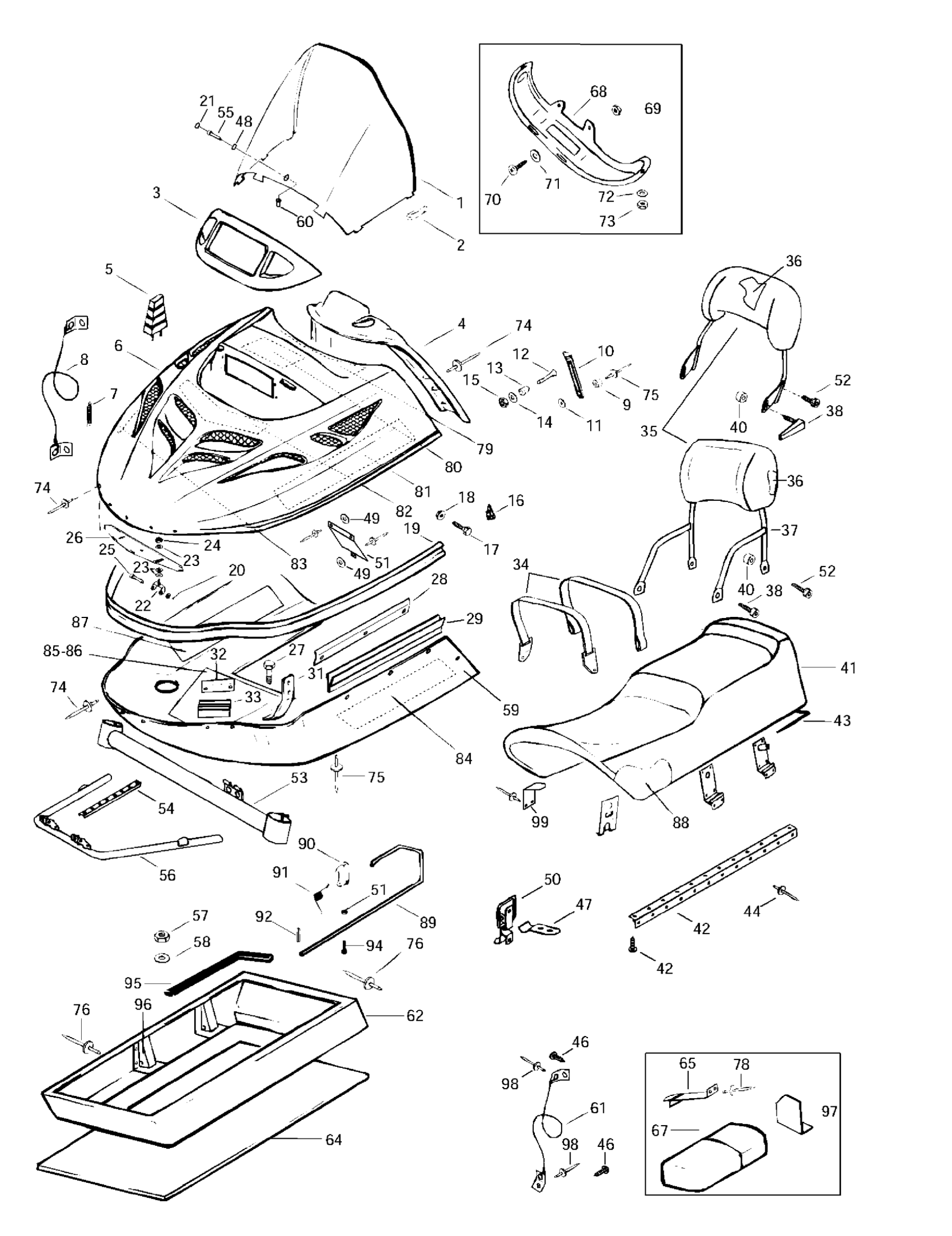

Ski-Doo Skandic Super Wide Track, 1997 Cab, Console, Seat Diagram
