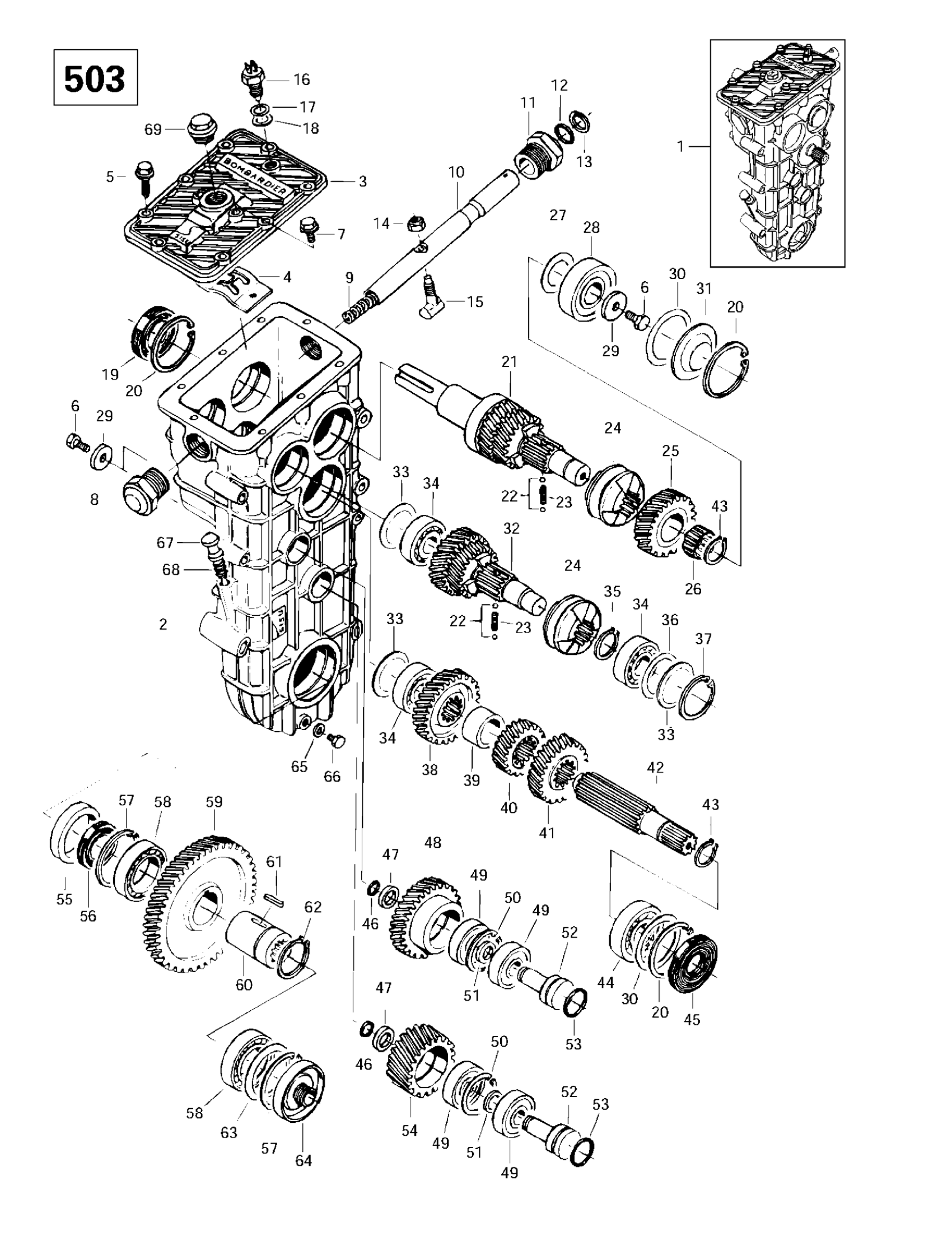

Ski-Doo Skandic Super Wide Track, 1997 05- Transmission (503) Diagram

#

Description
Price

1

Transmission Ass'y | Includes 1 - 69. Skandic Super Wide Track.

M870156110

Unavailable

2

Carter Chaine U*Case-Chain Mach. | Skandic Super Wide Track.

M875156044

Unavailable

3

COVER - Call your local BRP dealership

M875156043

Unavailable

4

H-SCHEME - Call your local BRP dealership This part replaces M875156111.

875156111

Unavailable

5

Screw 80 x 25 - Call your local BRP dealership This part replaces M537001402.

537001402

Unavailable

6

Hex. Screw M8 X 20

207182044

$0.74

7

Screw | Skandic Super Wide Track.

M534801382

Unavailable

8

SLEEVE - Call your local BRP dealership This part replaces M875156076.

875156076

Unavailable

9

Spring This part replaces M875156078.

875156078

$109.99

10

Shaft - Call your local BRP dealership This part replaces M875156072.

875156072

Unavailable

11

SLEEVE - Call your local BRP dealership This part replaces M875156077.

875156077

Unavailable

12

O-Ring | Skandic Super Wide Track.

M614601294

Unavailable

13

Ring Lock | Skandic Super Wide Track.

M617460024

Unavailable

14

NUT M10 - Call your local BRP dealership This part replaces M510611002.

510611002

Unavailable

15

Pin - Call your local BRP dealership This part replaces M875156073.

875156073

Unavailable

16

Backup Sender | Skandic Wide Track LC.

M654100223

Unavailable

17

Shim

M617391218

Unavailable

18

Sealing Ring

M615581216

Unavailable

19

Oil seal This part replaces M614103562.

614103562

$52.99

20

CIRCLIP - Call your local BRP dealership This part replaces M617330062.

617330062

$12.99

21

Shaft | Skandic Super Wide Track.

M875156065

Unavailable

22

Ball This part replaces M616810064.

616810064

$26.99

23

Spring - Call your local BRP dealership This part replaces M875156105.

875156105

Unavailable

24

Clutch wheel (Two side) - Call your local BRP dealership This part replaces M875156005.

875156005

Unavailable

25

SPROCKET Z=27 L.H. - Call your local BRP dealership This part replaces M875156052.

875156052

Unavailable

26

Needle bearing This part replaces M611002529.

611002529

$27.49

27

WASHER-AXIAL - Call your local BRP dealership

M616092542

Unavailable

28

Ball Bearing | Skandic Super Wide Track.

M610063054

Unavailable

29

Washer | Skandic 500F. Skandic 600.

M875156099

Unavailable

30

Shim 0,3mm - Call your local BRP dealership This part replaces M617395065.

617395065

Unavailable

31

PLUG - Call your local BRP dealership This part replaces M614100062.

614100062

Unavailable

32

Shaft - Call your local BRP dealership This part replaces M875156068.

875156068

Unavailable

33

Plug This part replaces M875152953.

875152953

$42.99

34

BEARING 6304 - Call your local BRP dealership This part replaces M610063044.

610063044

Unavailable

35

CIRCLIP - Call your local BRP dealership This part replaces M617450028.

617450028

$12.49

36

Shim | Skandic Super Wide Track.

M617393252

Unavailable

37

Retaining Ring (1=10Pcs) This part replaces M31002.

31002

$8.11

38

Wheel Z=34 L.H. - Call your local BRP dealership This part replaces M875156054.

875156054

Unavailable

39

SLEEVE - Call your local BRP dealership

M875156088

Unavailable

40

Sprocket 24 Th

M875156060

Unavailable

41

Sprocket 29Th | SUV 550

M875156051

Unavailable

42

SHAFT - Call your local BRP dealership This part replaces M875156069.

875156069

Unavailable

43

CIRCLIP - Call your local BRP dealership This part replaces M617450025.

617450025

Unavailable

44

BEARING 6305 - Call your local BRP dealership This part replaces M610063050.

610063050

Unavailable

45

Oil seal This part replaces M614102562.

614102562

$51.99

46

O-RING - Call your local BRP dealership This part replaces M614601224.

614601224

Unavailable

47

Shim This part replaces M875156094.

875156094

$21.99

48

Sprocket 33 Th

M875156059

Unavailable

49

BALL BEARING - Call your local BRP dealership This part replaces M610063036.

610063036

Unavailable

50

Circlip - Call your local BRP dealership This part replaces M617330047.

617330047

Unavailable

51

Washer

M875147205

Unavailable

52

Axe *Shaft This part replaces M875147204.

875147204

$132.49

53

O-ring This part replaces M614602431.

614602431

$11.60

54

Sprocket 26 Th

M875156058

Unavailable

55

Sleeve | Skandic Super Wide Track.

M875156091

Unavailable

56

Seal oil - Call your local BRP dealership | Skandic 500F. This part replaces M2652101.

2652101

$16.99

57

Snapring - Call your local BRP dealership This part replaces M617330068.

617330068

Unavailable

58

BALL BEARING - Call your local BRP dealership

M610060080

Unavailable

59

Sprocket 59 Th

M875156057

Unavailable

60

Lower Shaft | Skandic 500F. Skandic 500F (SWT).

M875136962

Unavailable

61

Key | Skandic 500F. Skandic 500F (SWT).

M603345070

Unavailable

62

CIRCLIP - Call your local BRP dealership

M617300040

Unavailable

63

ADJUSTMENT SHIM - Call your local BRP dealership This part replaces M617395568.

617395568

Unavailable

64

Bouchon *Plug

M875156104

Unavailable

65

Gasket-ring - Call your local BRP dealership

615580812

Unavailable

66

HEX. SCREW M8 X 10 - Call your local BRP dealership This part replaces M528801342.

528801342

Unavailable

67

Filler Cap Ass'y

M875156097

Unavailable

68

O-Ring | Skandic Super Wide Track.

M614600752

Unavailable

69

Oilplug - Call your local BRP dealership This part replaces M875156098.

875156098

Unavailable

70

Plug This part replaces M614100052.

614100052

$28.49
