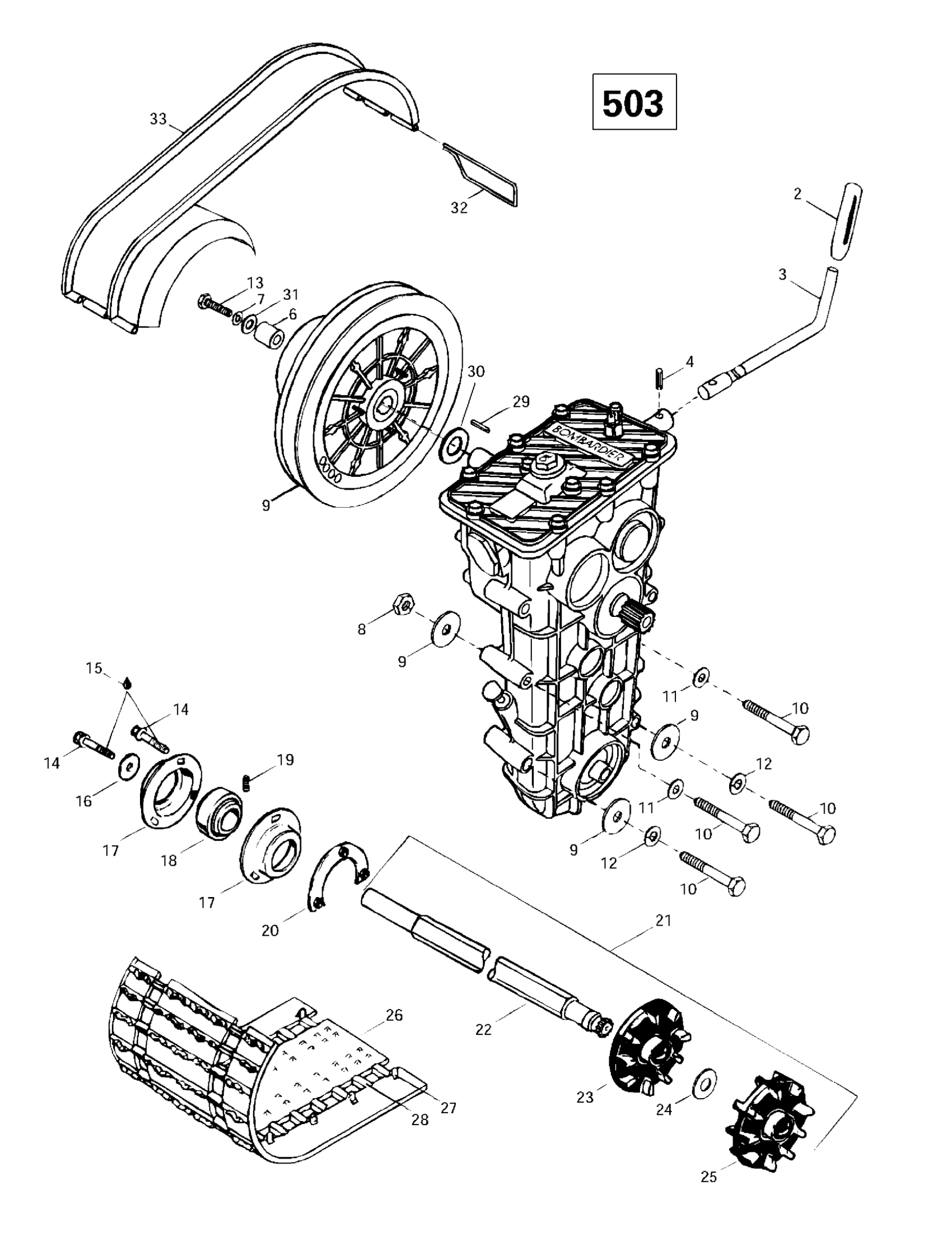

Ski-Doo Skandic Super Wide Track, 1997 05- Drive Axle, Track And Belt Guard (503) Diagram

#

Description
Price

2

Shift button This part replaces M28247.

28247

$30.49

3

Bras Vitesse *Arm-Shifter

M5340902

Unavailable

4

PIN SPRING - Call your local BRP dealership

M41007

Unavailable

6

Shaft Extension | Skandic Super Wide Track.

M5441286

Unavailable

7

Lock Washer 8 mm

234181401

$0.92

8

Hex. Elastic Stop Nut M8

232581414

$0.56

9

Flat Washer 8 mm

234082410

$1.47

10

Screw

M40089

Unavailable

11

Lock Washer 8 mm

234181401

$0.92

12

Lock Washer 8 mm

234181401

$0.92

13

Hex. Screw M8 X 55

207085544

$1.68

14

Flat Washer 8 mm

234082410

$1.47

16

Washer

M546336

Unavailable

17

Bearing House This part replaces M534430.

534430

$23.99

18

BALL BEARING - Call your local BRP dealership | Includes 24 to 25

M31UC205

Unavailable

19

BALL BEARING - Call your local BRP dealership | Includes 24 to 25

M31UC205

Unavailable

20

Fasten Ring Weld This part replaces M546421.

546421

$40.99

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Drive Axle | Skandic 500F (SWT).

M539815

Unavailable

23

Sprocket | Skandic SWT.

M539749

Unavailable

24

Washer | Skandic Wide Track. Skandic Wide Track LC.

M5440766

Unavailable

25

Sprocket

M539750

Unavailable

26

Track Ass'y | Includes 26 - 28. Skandic Super Wide Track.

M13049

Unavailable

27

CLEAT-GUIDE - Call your local BRP dealership

M5318323

Unavailable

28

CLEAT - Call your local BRP dealership

M5318322

Unavailable

29

Key | Skandic Super Wide Track.

M03620110

Unavailable

30

Shim

M3125351

Unavailable

31

Washer

M546336

Unavailable

32

Pin | Skandic Super Wide Track.

M542300

Unavailable

33

Belt Guard | Skandic Wide Track LC.

M5140175

Unavailable
