Description

Price

1

Rewind Starter Ass'y | Includes 1 - 11.

420996939

Unavailable

1

Starter Housing

420910068

Unavailable

2

Rewind Spring

420939115

$30.49

3

LOCK RING - Call your local BRP dealership

420945770

Unavailable

4

Rope Sheave

420852283

$62.49

5

Was 412500100 Rope-Starter

219704403

$158.99

6

Key Clamp

420852070

$4.23

7

Pawl

420852296

$20.99

8

PAWL LOCK - Call your local BRP dealership | Formula 500 LC.

420852301

Unavailable

9

CIRCLIP - Call your local BRP dealership

420845300

Unavailable

10

Pawl Spring

420938986

$9.27

11

Starter Grip

572084400

$14.83

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Socket Head Screw M6 x 16

420241237

$2.22

14

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

15

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

29

Hex. Elastic Stop Nut M8

232581414

$0.56

30

Flat Washer 8 mm

234081410

$0.83

31

Sleeve | Skandic Super Wide Track

M5441199

Unavailable

32

Rubber Sleeve | Skandic Super Wide Track

M5441198

Unavailable

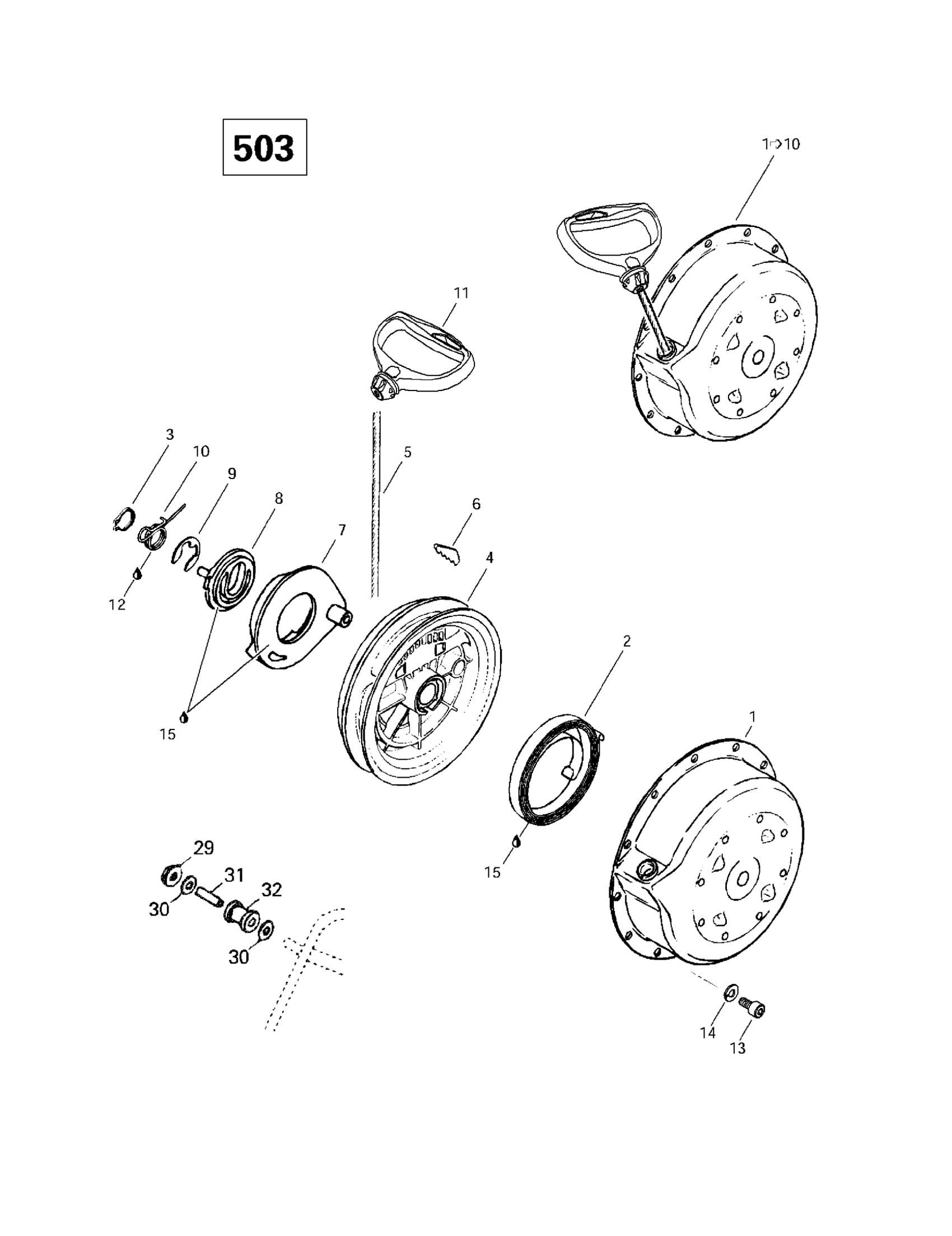

Ski-Doo Skandic Super Wide Track, 1997 04- Rewind Starter (503) Diagram

Rewind Starter Ass'y | Includes 1 - 11.

Starter Housing

Rewind Spring

LOCK RING - Call your local BRP dealership

Rope Sheave

Was 412500100 Rope-Starter

Key Clamp

Pawl

PAWL LOCK - Call your local BRP dealership | Formula 500 LC.

CIRCLIP - Call your local BRP dealership

Pawl Spring

Starter Grip

Not Available As Spare Part - Friction Washer

Socket Head Screw M6 x 16

WASHER-LOCK DIN.128 - Call your local BRP dealership

Was 293550004 Dielectric Grease, 150 g

Hex. Elastic Stop Nut M8

Flat Washer 8 mm

Sleeve | Skandic Super Wide Track

Rubber Sleeve | Skandic Super Wide Track
