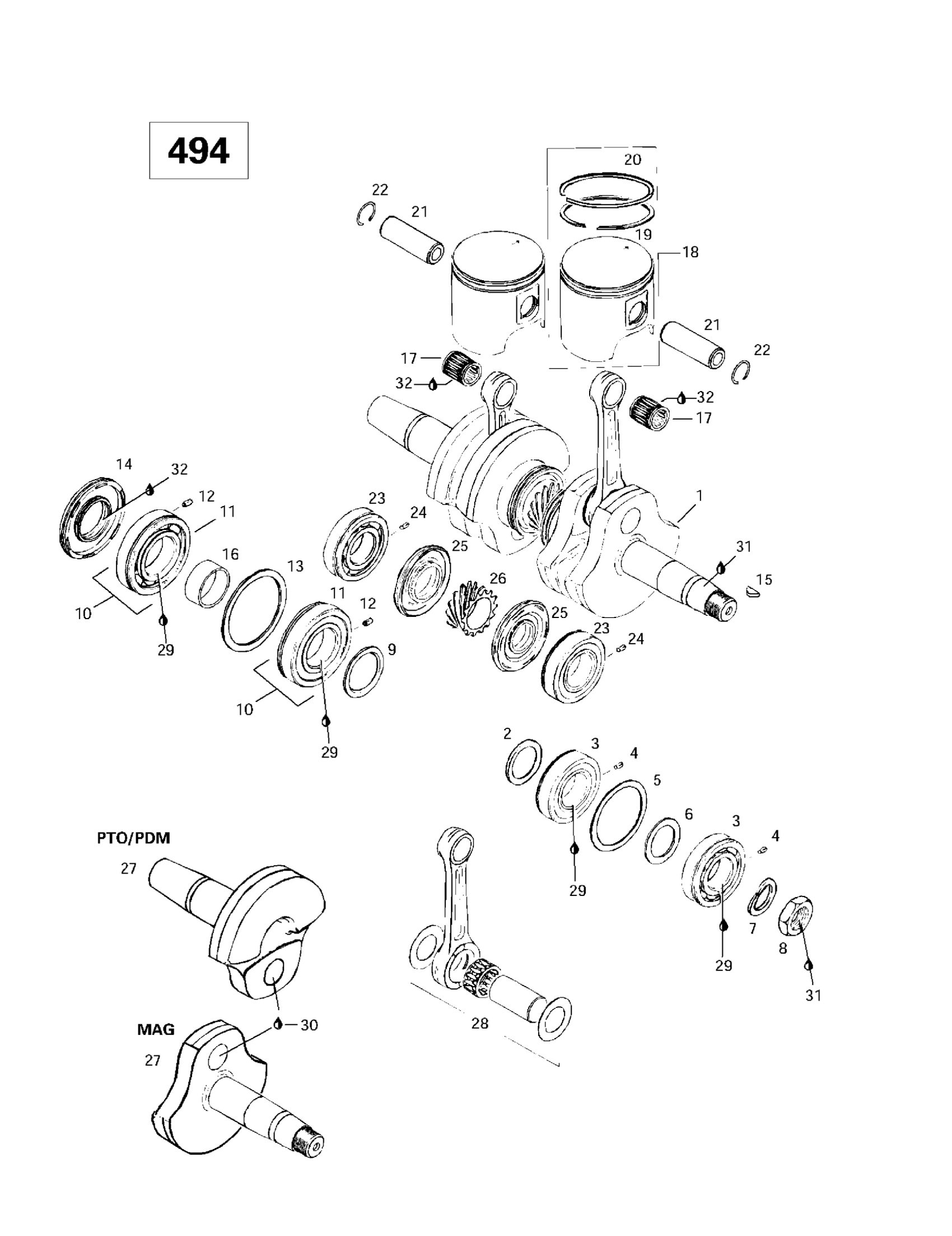

Ski-Doo Skandic Super Wide Track, 1997 01- Crankshaft And Pistons (494) Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 - 16. Grand Touring 500.

420886930

Unavailable

2

DISTANCE RING - Call your local BRP dealership

420827445

Unavailable

3

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

420832538

Unavailable

4

Dowel Pin

420929972

Unavailable

5

ADJUSTMENT WASHER - Call your local BRP dealership

420427684

Unavailable

6

RETAINING DISK - Call your local BRP dealership

420827050

Unavailable

7

Lock Washer, 22 mm

420945759

$1.90

8

Hex. Nut, M22 X 1.5

420842239

$17.53

9

DISTANCE RING - Call your local BRP dealership

420827760

Unavailable

10

Ball Bearing

420832573

$44.49

11

Ball Bearing

420832573

$44.49

12

Dowel Pin

420929972

Unavailable

13

Retaining Disk

420927710

$7.41

14

Oil Seal This part replaces 290831952.

420831952

$18.01

15

Woodruff Key

420246015

$3.17

16

Distance Sleeve | Formula Deluxe 500 LC. Formula Deluxe 670.

420847684

Unavailable

17

Needle Cage Bearing | Formula III 700. Formula III 700 R.

420832435

Unavailable

18

Piston Ass'y (2 rings 69.39 mm) | Includes 16 - 18.

420887553

Unavailable

Oversize Pist. Ass'y (2 rings 69.64 mm)

420887554

Unavailable

19

Rectangular Ring 69.5 mm

420915985

Unavailable

OVERSIZE RECTANGULAR RING 69.75 MM - Call your local BRP dealership

420915986

Unavailable

20

Semi-trapez Ring 69.5 mm

420815045

Unavailable

Oversize Semi-trapez Ring 69.75 mm

420815046

Unavailable

21

PISTON PIN - Call your local BRP dealership

420916185

Unavailable

22

Piston Circlip

420945735

$4.46

23

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

420832538

Unavailable

24

Dowel Pin

420929972

Unavailable

25

Oil Seal

420831990

$20.49

26

Central Gear 14 Teeth

420935748

Unavailable

27

Crankshaft (PTO side)

420818660

Unavailable

Crankshaft (MAG side)

420818690

Unavailable

28

Crankshaft Repair Kit (PTO side)

420886955

Unavailable

CRANKSHAFT REPAIR KIT (MAG SIDE) - Call your local BRP dealership

420886956

Unavailable

29

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

30

Sealant Loctite 648

219703000

$45.99

31

Loctite 243, 10 ml

293800060

$21.49

32

Dow Corning 111, 150 g

413707000

$59.99
