01- Cooling System (494)

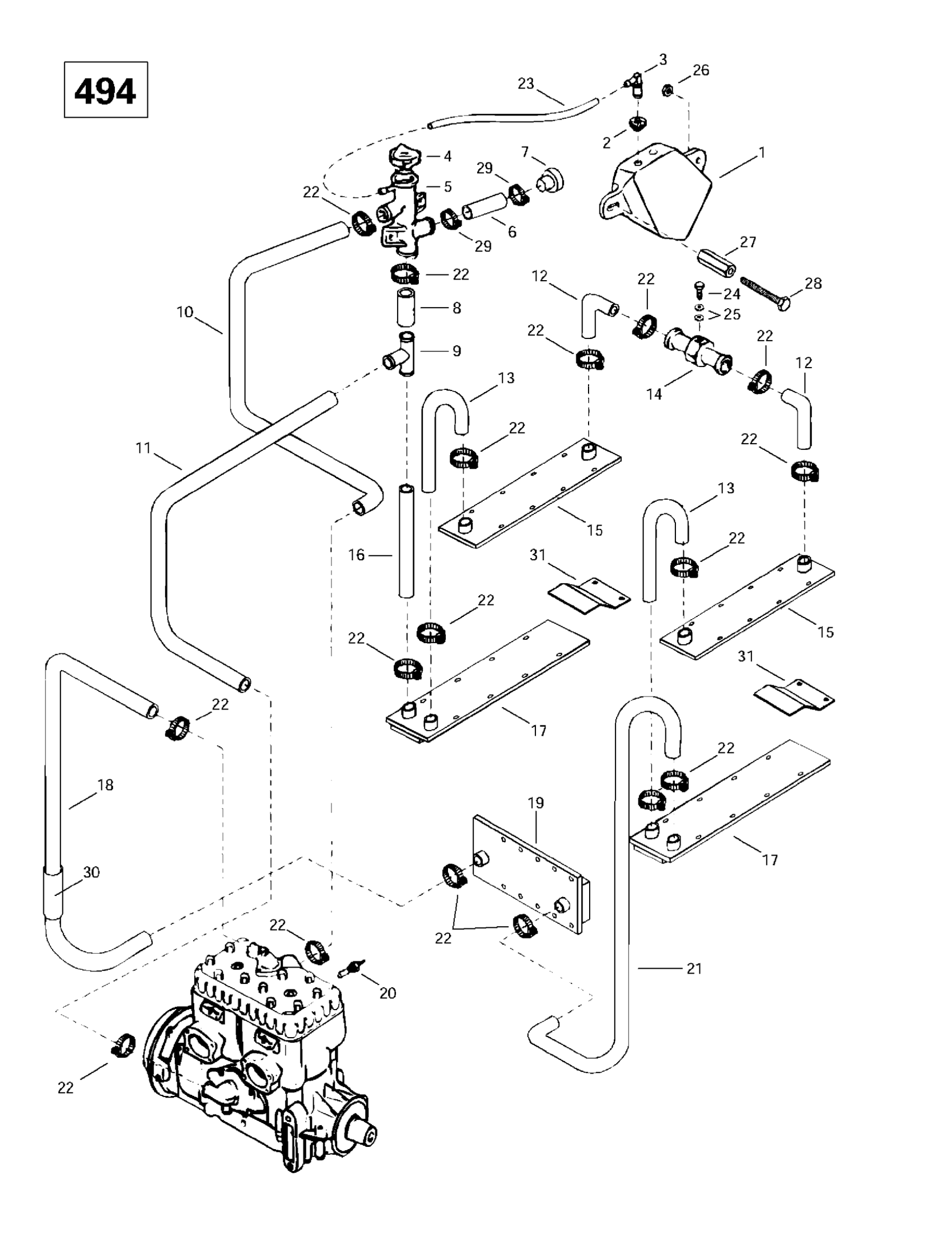

Ski-Doo Skandic Super Wide Track, 1997 01- Cooling System (494) Diagram
#
Description
Price
1
Coolant Tank | Skandic Wide Track LC.
414628400
Unavailable
3
Male Connector | Skandic Wide Track LC.
M533606
Unavailable
5
Filler Neck | Skandic Wide Track LC.
414684600
Unavailable
6
Hose | Skandic Wide Track LC.
M548510
Unavailable
7
Plug | Skandic Wide Track LC.
M548509
Unavailable
8
Hose | Skandic Wide Track LC.
M5340828
Unavailable
10
Hose | Skandic Wide Track LC.
M5340827
Unavailable
11
Hose | Skandic Wide Track LC.
M5340830
Unavailable
12
Hose | Skandic Wide Track LC.
M5340832
Unavailable
13
Hose | Skandic WT LC.
M538357
Unavailable
14
Venting Cock | Skandic Wide Track LC.
M547465
Unavailable
15
RH Radiator | Skandic Wide Track LC.
M5340834
Unavailable
LH Radiator | Skandic Wide Track LC.
M5340860
Unavailable
16
Hose | Skandic Wide Track LC.
M5340829
Unavailable
17
Foot Radiator | Skandic Wide Track LC.
M5340855
Unavailable
18
Hose | Skandic Wide Track LC.
M5340831
Unavailable
19
Foot Radiator | Skandic WT LC.
M5340833
Unavailable
20
Temperature Sensor | Formula Deluxe 600. Formula Deluxe 700.
414728700
Unavailable
21
Hose | Skandic WT LC.
M538358
Unavailable
22
TRIDON GEAR CLAMP - Call your local BRP dealership
408800400
Unavailable
24
Screw
M40034
Unavailable
25
Gasket | Skandic Wide Track LC.
M20042
Unavailable
27
Sleeve | Skandic Wide Track LC.
M5442065
Unavailable
28
SCREW - Call your local BRP dealership
M40193
Unavailable
29
Spring Clamp | Skandic Wide Track LC.
408803200
Unavailable
30
Tube | Skandic Wide Track LC.
M548754
Unavailable
31
Cover PLate | Skandic Wide Track LC.
M547979
Unavailable
