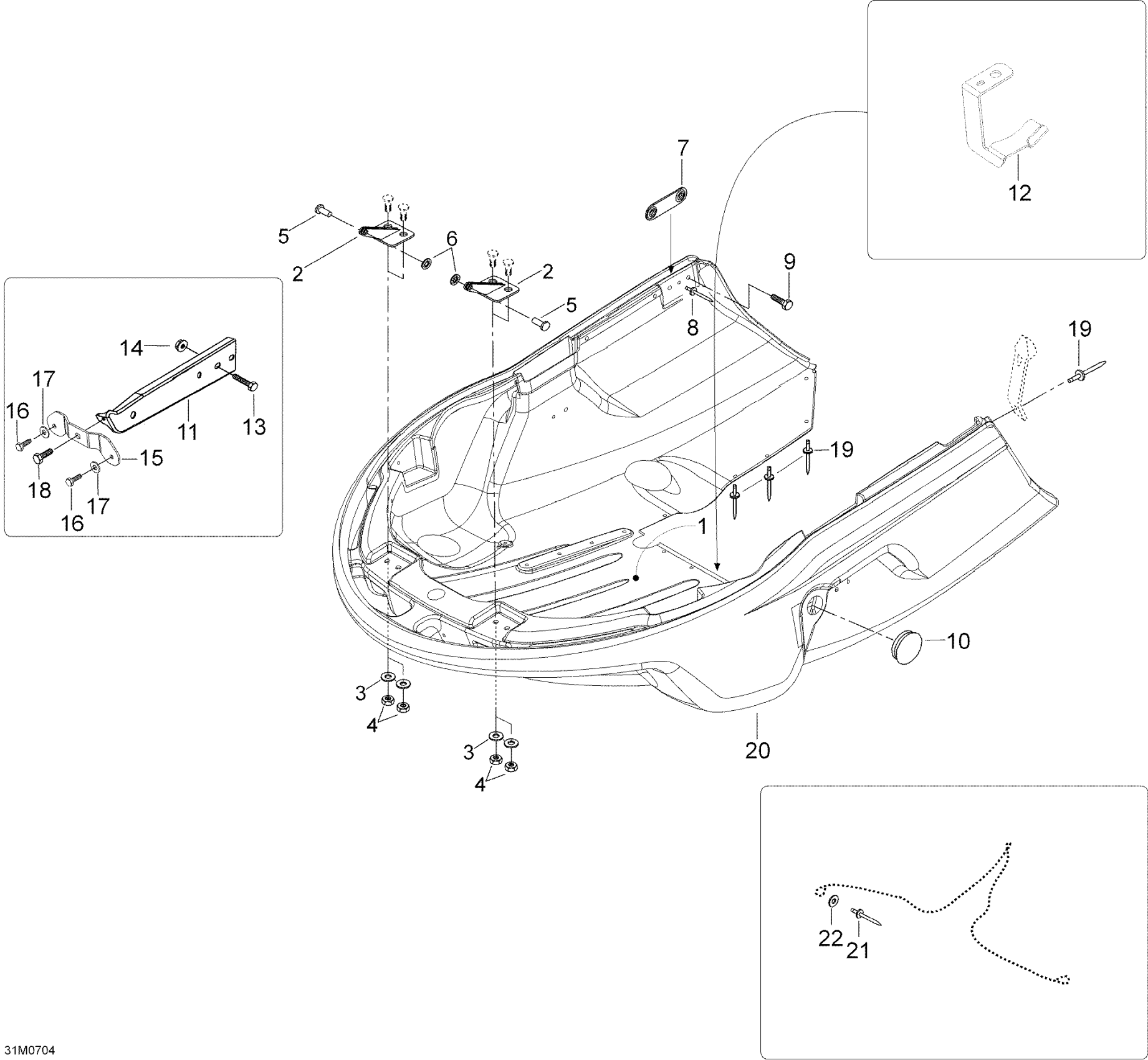

Ski-Doo Skandic LT 440F, 2007 09- Bottom Pan Diagram

#

Description
Price

1

Sheet-reflector

M5444437

Unavailable

2

Welded Lower Hinge

517289900

Unavailable

3

Flat Washer 6 mm

234062410

$0.77

4

Elastic Stop Nut M6

232561414

$0.55

5

FLAT HEAD STEEL RIVET - Call your local BRP dealership

390906200

Unavailable

6

Push Nut

389804300

$0.53

7

Side Bracket

M5446213

Unavailable

8

Rivet This part replaces M36009.

36009

$1.15

9

Screw

M40377

Unavailable

10

Bottom Pan Cap

570277300

Unavailable

11

Front Support

M5246183

Unavailable

12

LH BRACKET - Call your local BRP dealership

605351521

Unavailable

13

RH BRACKET - Call your local BRP dealership

605351520

Unavailable

14

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

15

Hex. Flange Elastic Nut M8

233281414

$1.47

16

BOTTOM PAN FRONT - Call your local BRP dealership

605352393

Unavailable

17

Forming Screw M5 x 16

250000676

$1.01

18

Washer

20117

$6.39

19

Screw

M40377

Unavailable

20

Black Rivet

36037

$1.48

21

Bottom Pan

605153168

Unavailable

22

Rivet This part replaces M36009.

36009

$1.15
