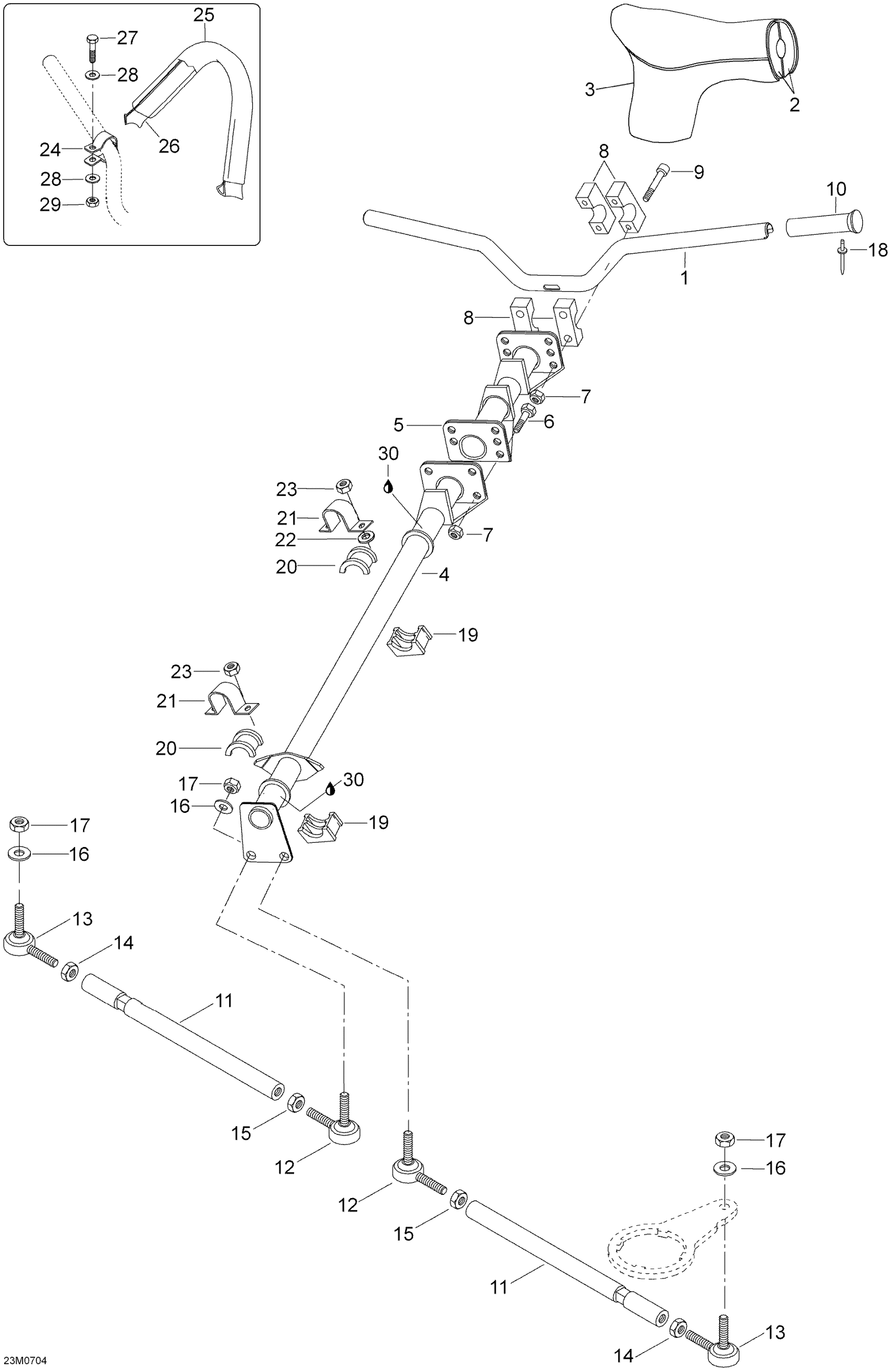

Ski-Doo Skandic LT 440F, 2007 07- Steering System Diagram

#

Description
Price

1

HANDLE BAR - Call your local BRP dealership

605249033

Unavailable

2

Front Padding Steering

605250305

Unavailable

2

REAR PADDING STEERING - Call your local BRP dealership

605250306

Unavailable

3

STEERING COVER - Call your local BRP dealership

605254816

Unavailable

4

Main Tube

M5245963

Unavailable

5

EXTENSION WELD - Call your local BRP dealership

605250820

Unavailable

6

Hex. Screw M8 x 16

207181644

$1.15

7

Hex. Elastic Stop Nut M8

232581414

$0.56

8

Support Guidon *Support-Steer.

M548448

Unavailable

9

Socket Head Screw M8 X 45

M40286

Unavailable

10

Grip | WAKE This part replaces M5340464.

506152483

$12.17

11

Rh Tie Rod

M548983

Unavailable

12

LH JOINT BALL - Call your local BRP dealership

506151845

$38.99

13

RH BALL JOINT - Call your local BRP dealership

506151492

$38.99

14

RH NUT - Call your local BRP dealership

M33019

Unavailable

15

LH NUT - Call your local BRP dealership

M33017

Unavailable

16

Lock Washer

M20047

Unavailable

17

Elastic Flange Nut M10

232501416

$1.48

18

Rivet

36005

$2.11

19

Bushing

572064400

Unavailable

20

BUSHING - Call your local BRP dealership

572064500

Unavailable

21

Retaining Support

M5343381

Unavailable

22

Lock Washer

M31081

Unavailable

23

Hex. Flange Elastic Nut M8

233281414

$1.47

24

Black Support Plate

506152536

$9.19

25

Strap Ass'y | Package XMR

506152115

$44.49

26

Strap Ass'y | Package XMR

506152115

$44.49

27

Hex. Screw M6 X 25

207162544

$1.15

28

Flat Washer 6 mm

234061410

$1.36

29

Elastic Stop Nut M6

232561414

$0.55

30

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
