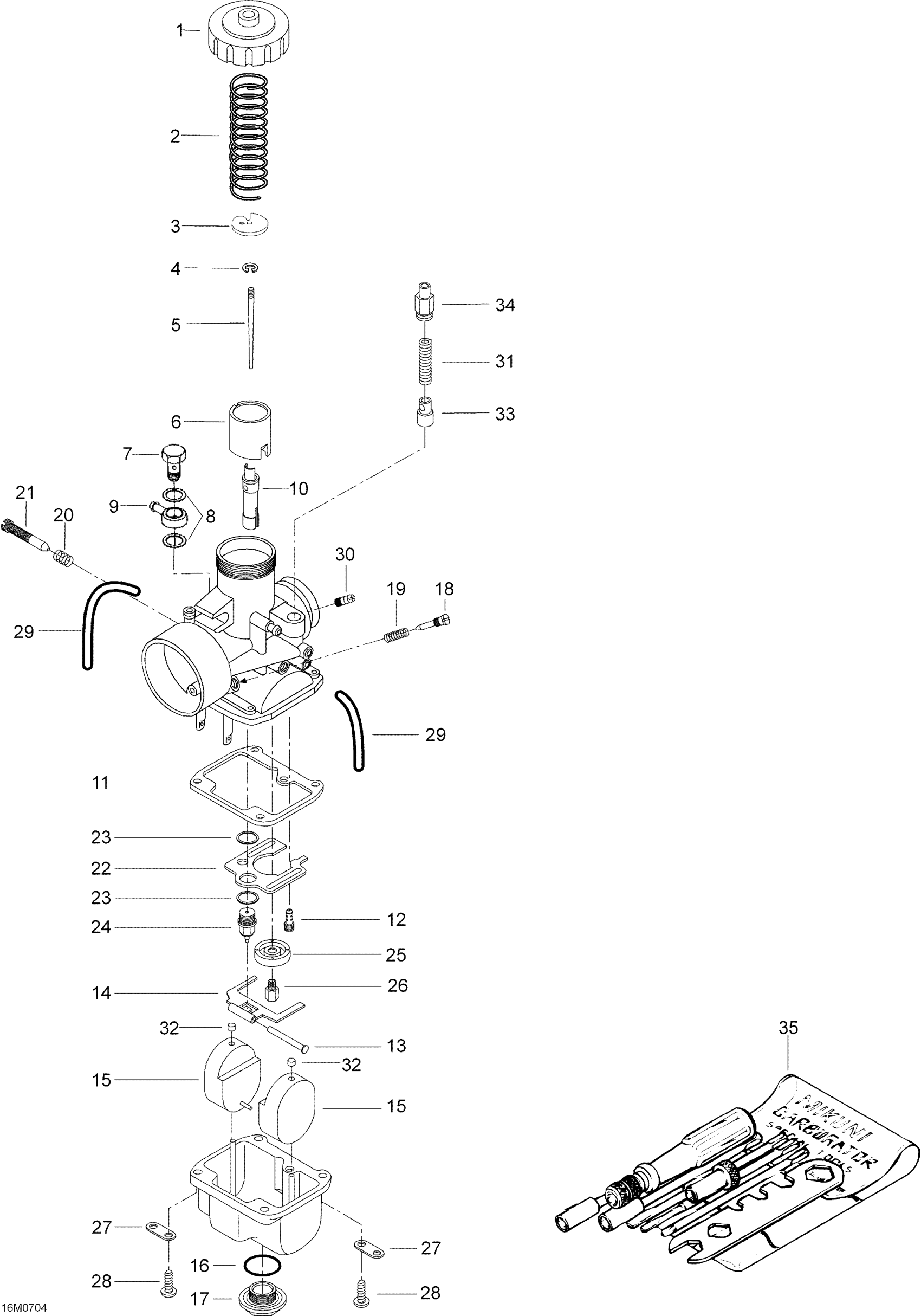

Ski-Doo Skandic LT 440F, 2007 02- Carburetor Diagram
#
Description
Price
3
PLATE - Call your local BRP dealership
404103800
Unavailable
5
NEEDLE - Call your local BRP dealership
404161978
Unavailable
6
Valve Piston 3.0
404158400
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
8
Washer
270500025
Unavailable
9
BANJO FITTING - Call your local BRP dealership
404130000
Unavailable
10
Needle Jet
404130200
Unavailable
12
PILOT JET 50 - Call your local BRP dealership
404109500
Unavailable
15
FLOAT - Call your local BRP dealership
404107100
Unavailable
18
AIR SCREW - Call your local BRP dealership
404149000
Unavailable
19
SPRING - Call your local BRP dealership
404139800
Unavailable
21
THROTTLE SCREW - Call your local BRP dealership
404125200
Unavailable
22
BAFFLE - Call your local BRP dealership
404109600
Unavailable
24
VALVE NEEDLE 1.5 - Call your local BRP dealership
605353825
Unavailable
25
BAFFLE RING - Call your local BRP dealership
404110900
Unavailable
27
PLATE - Call your local BRP dealership
404103000
Unavailable
29
HOSE - Call your local BRP dealership
404161880
Unavailable
31
SPRING - Call your local BRP dealership | MAG Side
404127400
Unavailable
33
PLUNGER ASS'Y - Call your local BRP dealership
404161000
Unavailable
34
GUIDE HOLDER - Call your local BRP dealership | MAG Side
404161100
Unavailable
35
TOOL KIT - Call your local BRP dealership
404112000
Unavailable
