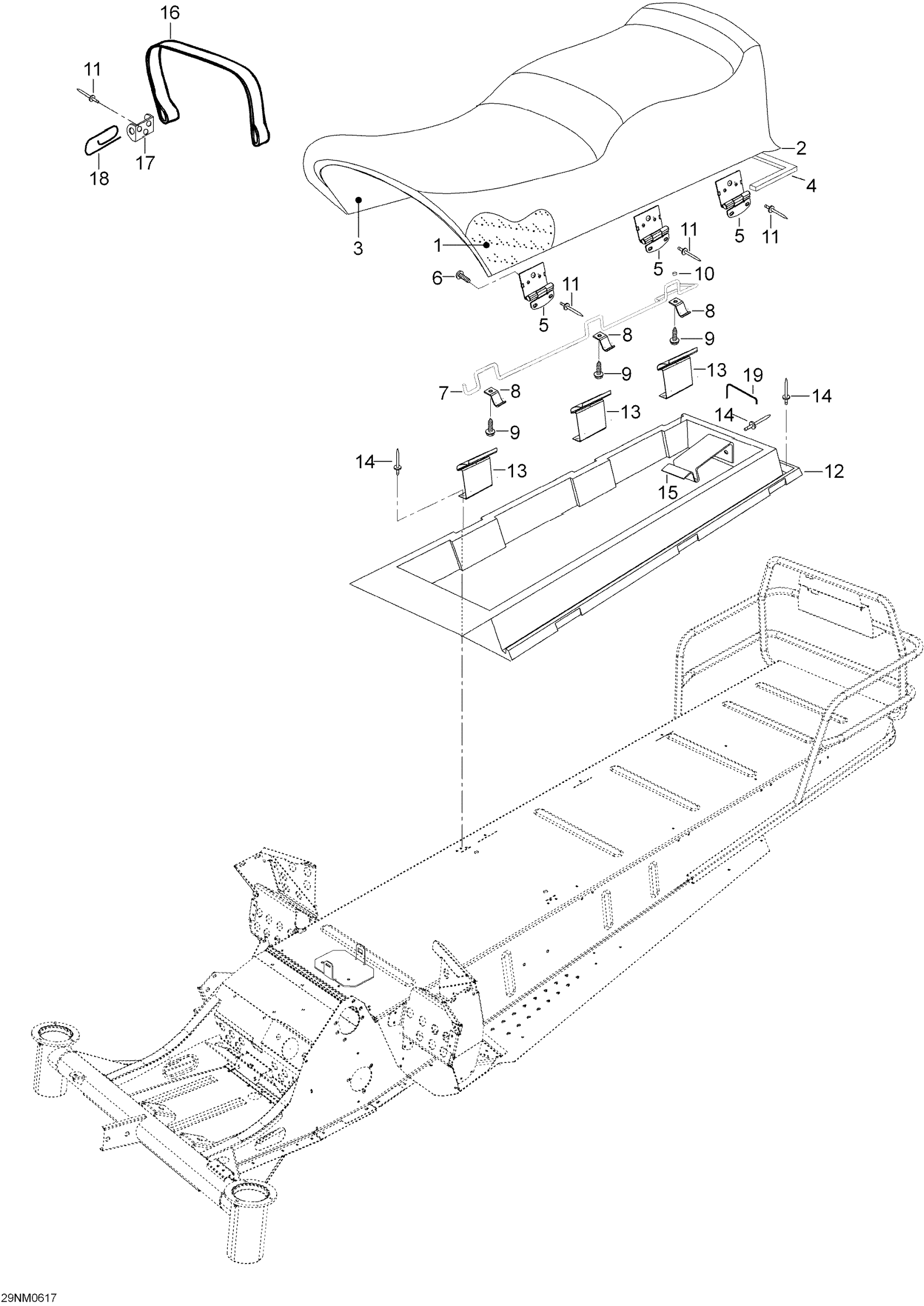

Ski-Doo Skandic LT 440F, 2006 09- Seat Diagram
#
Description
Price
1
SEAT FOAM - Call your local BRP dealership
605150630
Unavailable
2
Cover-seat, Lt
605153080
Unavailable
3
Seat Base
M5144962
Unavailable
4
SEALING STRIP PROFIL - Call your local BRP dealership
M5440059
Unavailable
5
Hinge
M5346518
Unavailable
6
SCREW - Call your local BRP dealership
M40887
Unavailable
7
Locking Shaft
M5245337
Unavailable
8
Locking Plate
M5446102
Unavailable
9
Screw
M40888
Unavailable
10
Cap
M28019
Unavailable
12
Seat Box
605350823
Unavailable
13
Lock
M5345195
Unavailable
14
Rivet
M36489
Unavailable
15
SPRING PLATE - Call your local BRP dealership
M5346728
Unavailable
16
SEAT BELT - Call your local BRP dealership
M5346727
Unavailable
17
Seat Belt Latch
M548824
Unavailable
19
Stopper Hook
M5441849
Unavailable
