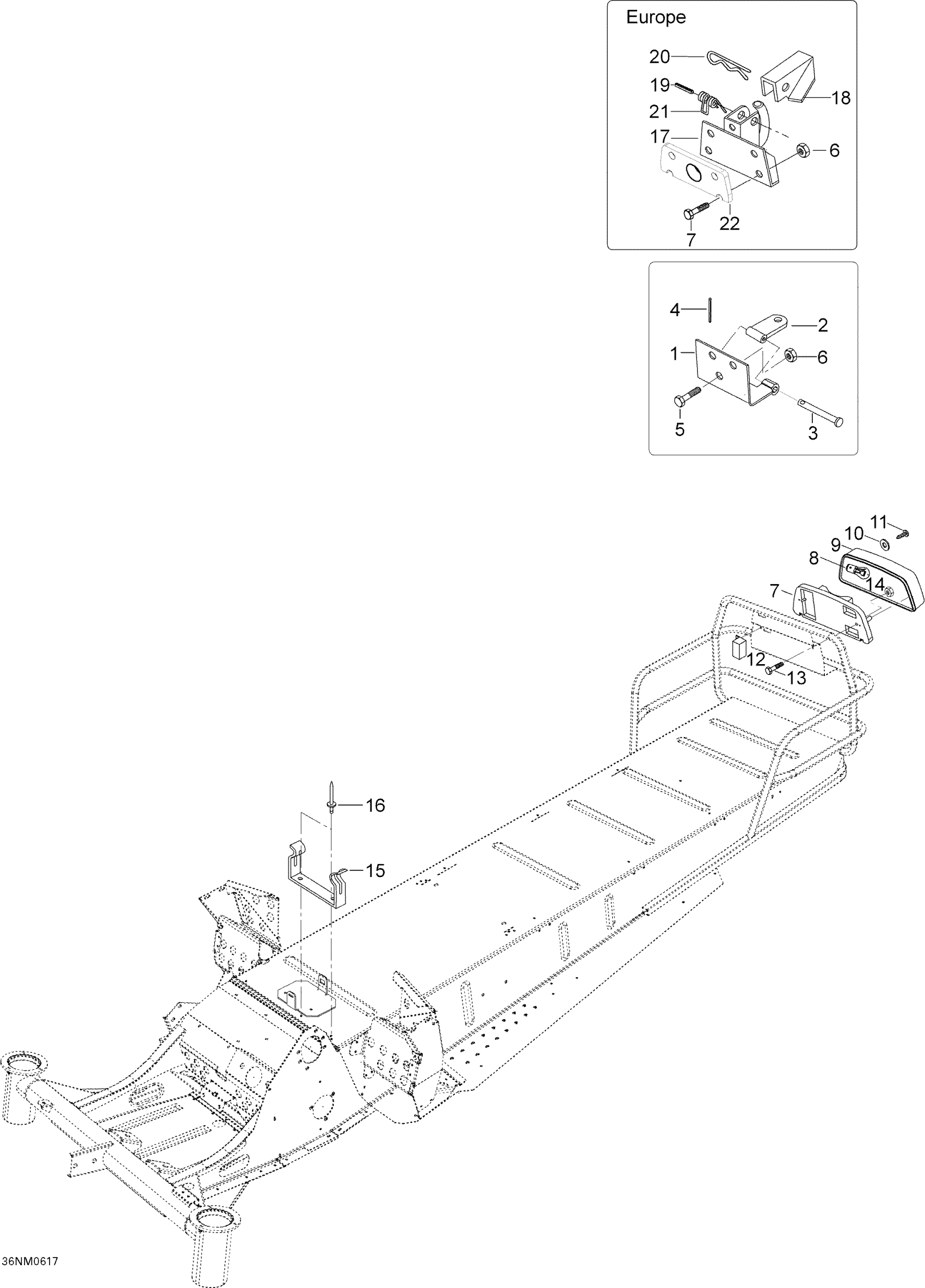

Ski-Doo Skandic LT 440F, 2006 09- Frame and Components Diagram

#

Description
Price

1

Plate

M5346638

Unavailable

2

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

548745

$42.99

3

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

4

Cotter Pin

41031

$7.65

5

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

5

He. screw M8 x 25

40037

Unavailable

6

Hex. Elastic Stop Nut M8

232581414

$0.56

6

Hex. Elastic Stop Nut M8

232581414

$0.56

7

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

8

Bulb

520000758

$9.10

9

Lens

414513700

$28.99

10

Washer - Call your local BRP dealership

414516400

Unavailable

11

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

12

PROTECTION PLATE - Call your local BRP dealership

605448415

Unavailable

13

Hex. Screw M6 X 30

207063044

$1.26

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

Support

M5346204

Unavailable

16

Rivet

36108

$1.90

17

HITCH ASS'Y - Call your local BRP dealership

5344156

$79.99

18

Lock | EU

5440767

Unavailable

19

Pin

41012

$6.39

20

Hair pin

41029

$4.44

21

SPRING - Call your local BRP dealership | Model- EUROPE This part replaces M545693.

545693

Unavailable

22

Extension | Europe

5446915

Unavailable
