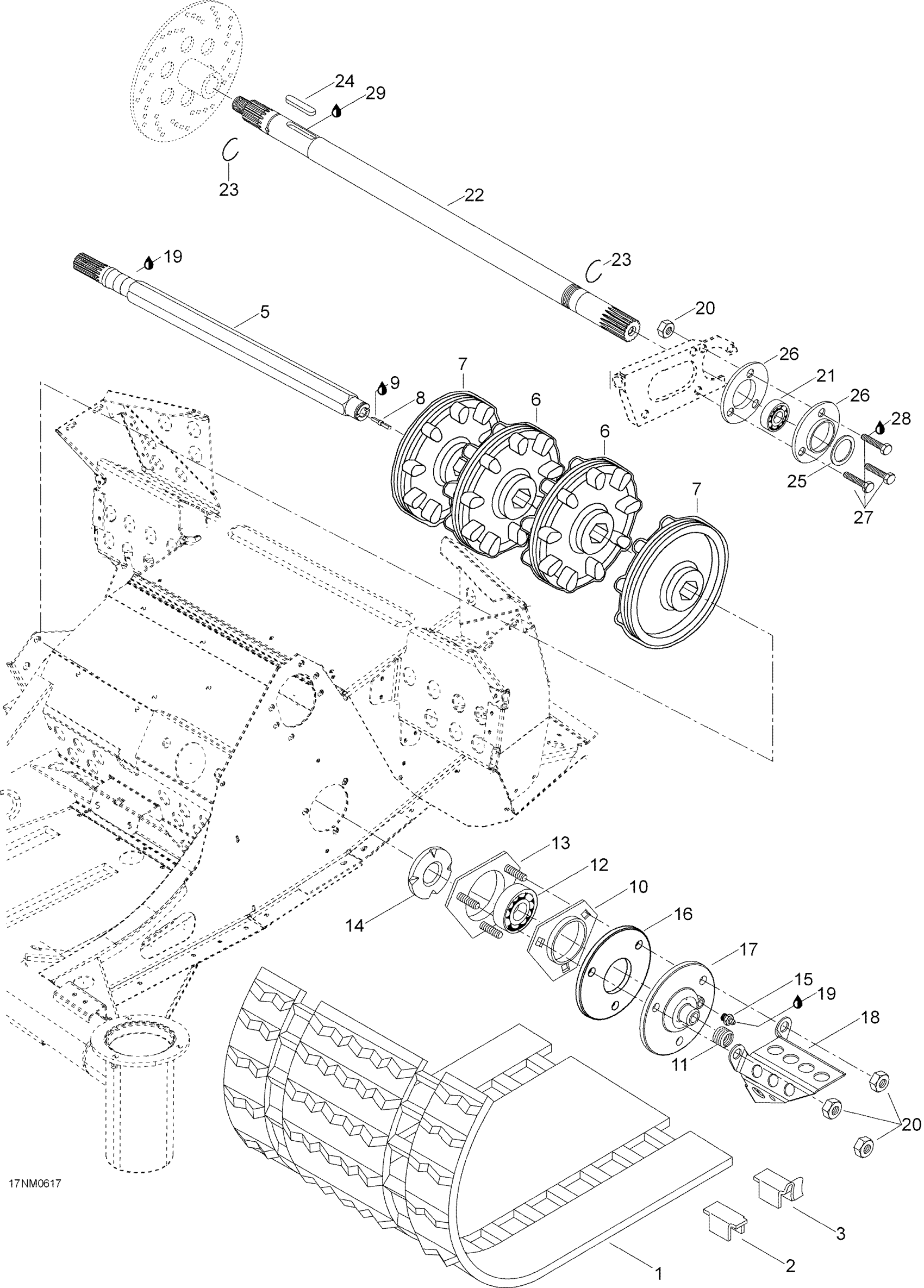

Ski-Doo Skandic LT 440F, 2006 05- Drive System Diagram
#
Description
Price
1
TRACK-ASSY 15X156X1.00 - Call your local BRP dealership
M13057
Unavailable
2
CLEAT - Call your local BRP dealership
M5318329
Unavailable
3
CLEAT-GUIDE - Call your local BRP dealership
M5318330
Unavailable
4
Not Available As Spare Part - Friction Washer
Unavailable
5
Drive Axle
M5246310
Unavailable
6
Sprocket
M539750
Unavailable
7
SPROCKET - Call your local BRP dealership
M5342920
Unavailable
10
FLANGE - Call your local BRP dealership
501025000
Unavailable
11
Bushing
M5446614
Unavailable
13
BEARING HOUSING - Call your local BRP dealership
504151860
Unavailable
14
BEARING PROTECTOR - Call your local BRP dealership
501017400
Unavailable
15
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership This part replaces M34011.
34011
$11.99
16
Washer
M5446641
Unavailable
17
Flange, Speedo Drive Insert
504151836
Unavailable
18
CABLE PROTECTOR - Call your local BRP dealership
517290100
Unavailable
19
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
21
BALL BEARING - Call your local BRP dealership
504152008
Unavailable
22
SHAFT-COUNTER - Call your local BRP dealership
M5146089
Unavailable
24
Key
M418740
Unavailable
25
Shim
M548001
Unavailable
26
Flange - Call your local BRP dealership This part replaces M5346237.
5346237
Unavailable
27
HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.
40336
Unavailable
29
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
