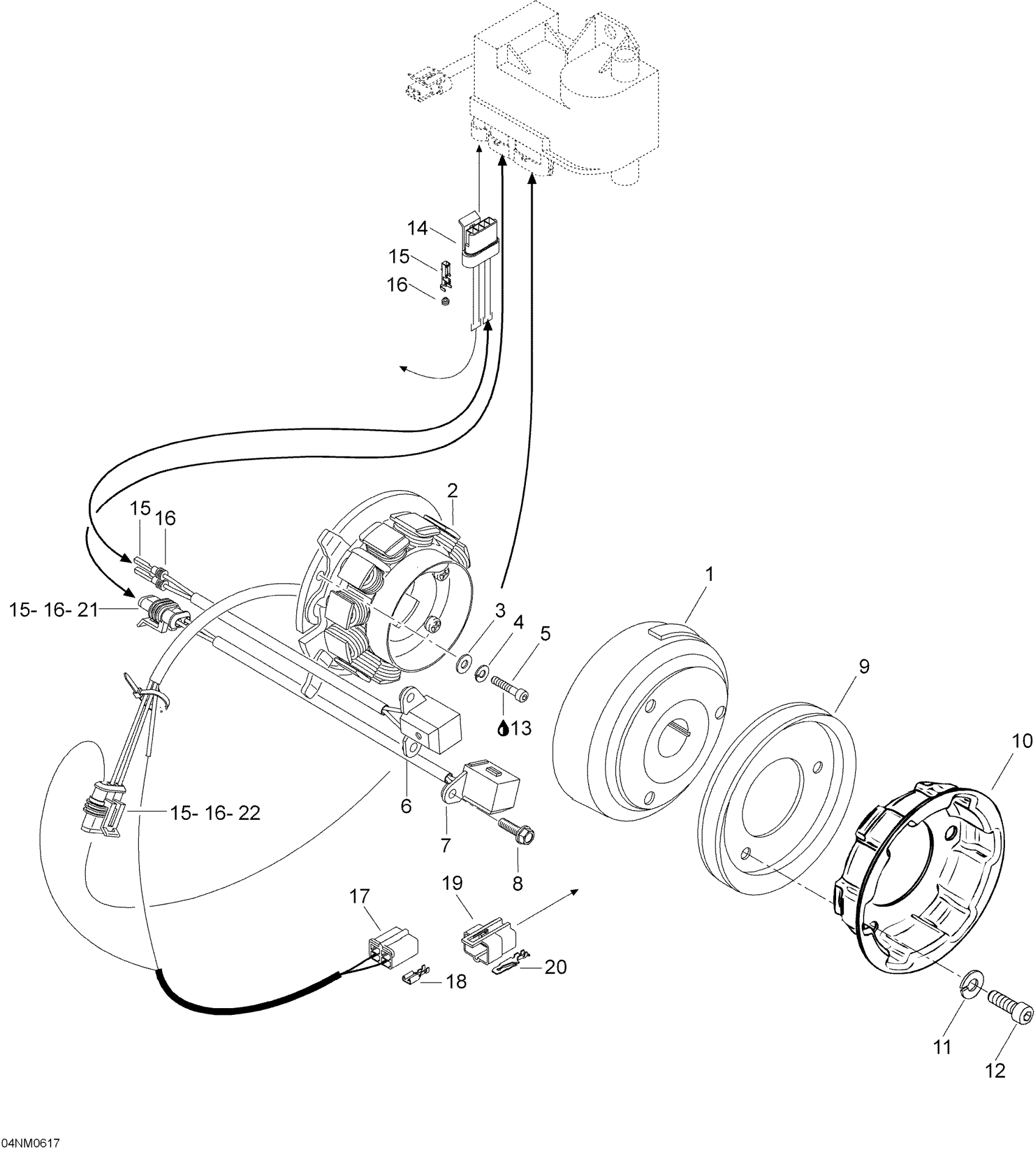

Ski-Doo Skandic LT 440F, 2006 03- Magneto Diagram

#

Description
Price

-

Ducati Magneto | Includes 1 to 2

420887654

Unavailable

1

Flywheel

420996824

Unavailable

2

STATOR PLATE A - Call your local BRP dealership

420886603

Unavailable

3

Washer 5.3

420927574

$1.90

4

Lock Washer

M20013

Unavailable

5

SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership

420840515

Unavailable

6

Pick-Up

420665163

$164.99

7

PICK-UP - Call your local BRP dealership

420665160

Unavailable

8

Taptite Screw M5 X 16

420941928

Unavailable

9

V-Belt Pulley

420980486

$37.99

10

Rope Sheave

420852414

$29.49

11

Lock Washer

420845311

$1.90

12

SOCKET HEAD SCREW M8 X 12 - Call your local BRP dealership

420841522

Unavailable

13

Loctite 243, 10 ml

293800060

$21.49

14

Female Housing, 4 Circuits

409209700

$16.18

15

Female Terminal

278001014

$3.28

16

Wire Seal

278001013

$3.28

17

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

18

FEMALE TERMINAL - Call your local BRP dealership

515175253

Unavailable

19

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

20

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

21

Female Housing, 2 Circuits

409209500

$15.27

22

Female Housing, 3 Circuits

409209600

$35.99
