Description

Price

1

Oil Tank

572106700

Unavailable

2

CAP - Call your local BRP dealership

519000044

Unavailable

3

Insulating Ring

570023000

$5.61

4

Spring Clamp

414420700

$0.72

5

Spring Clamp

414415200

$0.88

6

Filter

414536500

$4.02

7

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

8

SPRING - Call your local BRP dealership

M25005

Unavailable

9

Tank Support

M5246036

Unavailable

10

HEX. SCREW M6 X 12 - Call your local BRP dealership

207161244

Unavailable

11

HEX. SCREW M6 X 10 - Call your local BRP dealership

207161044

Unavailable

12

Lock Washer M6, Black

234161471

$0.53

13

Flat Washer 6 mm

234062410

$0.77

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

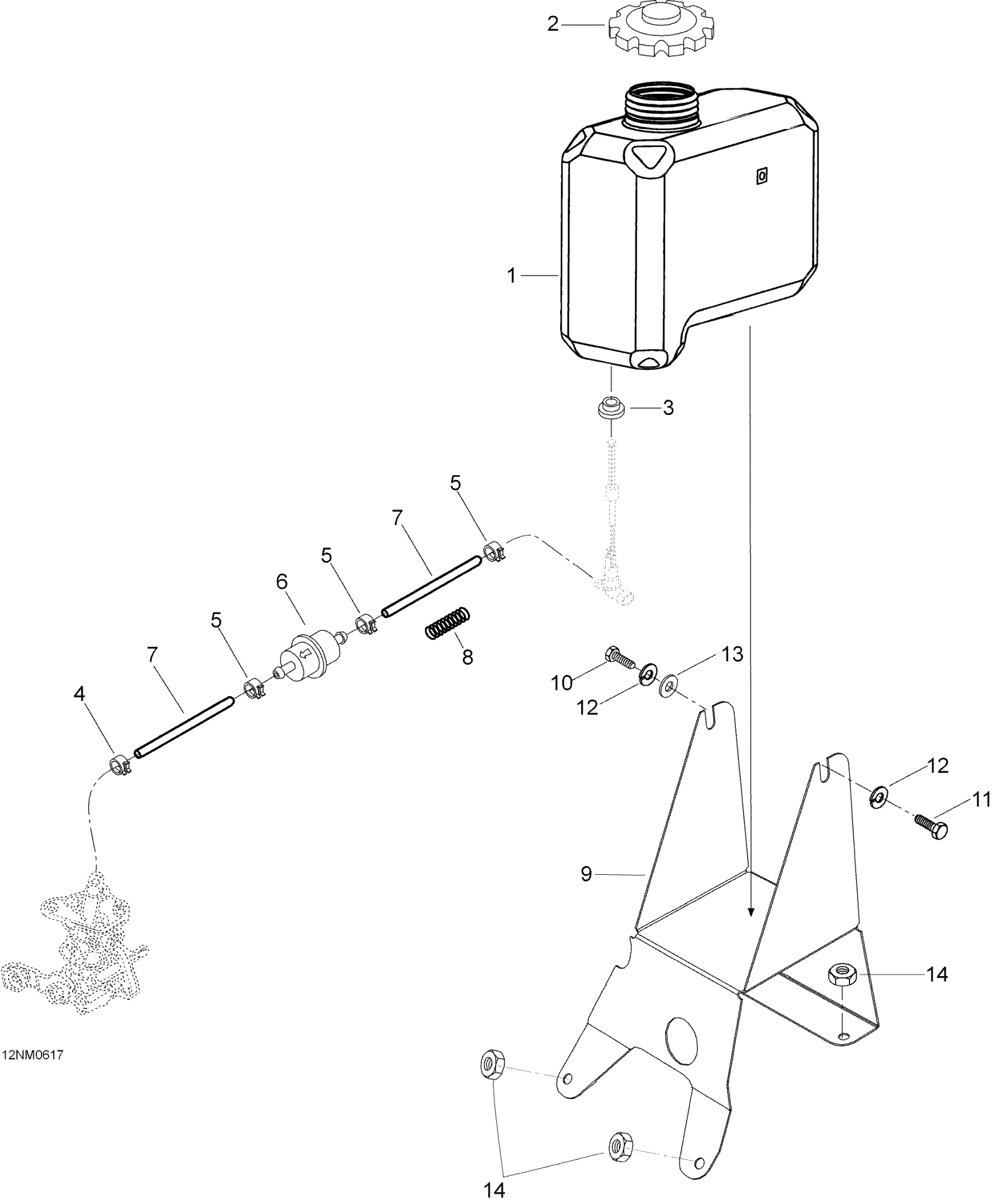

Ski-Doo Skandic LT 440F, 2006 02- Oil System Diagram

Oil Tank

CAP - Call your local BRP dealership

Insulating Ring

Spring Clamp

Spring Clamp

Filter

Polyurethane Hose, 8 Mm 3000Mm Long

SPRING - Call your local BRP dealership

Tank Support

HEX. SCREW M6 X 12 - Call your local BRP dealership

HEX. SCREW M6 X 10 - Call your local BRP dealership

Lock Washer M6, Black

Flat Washer 6 mm

Hex. Flange Elastic Nut M6 x 1.0
