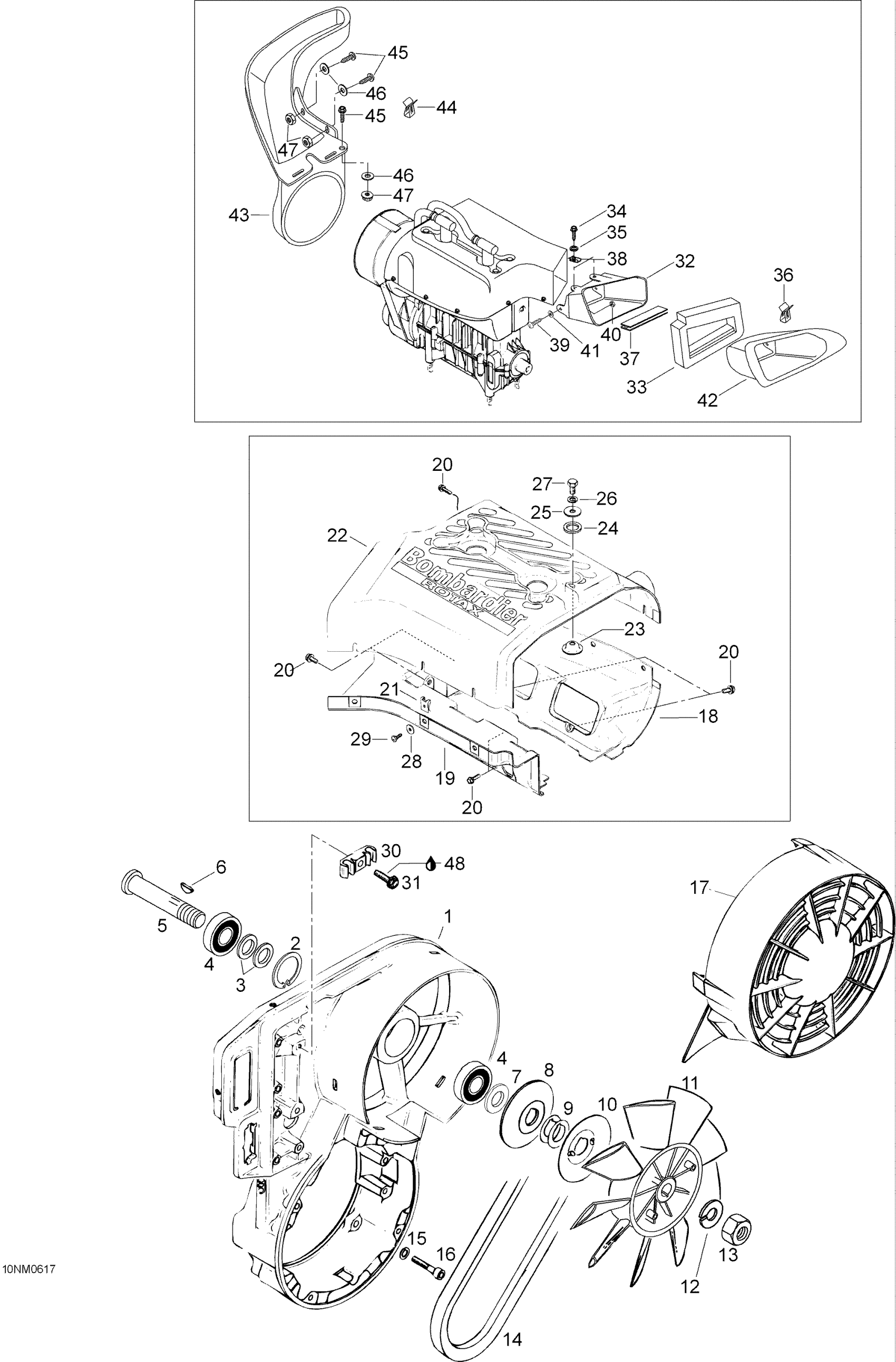

Ski-Doo Skandic LT 440F, 2006 01- Cooling System Diagram

#

Description
Price

1

Fan Housing This part replaces 420912203.

420912230

$476.49

2

Lock Ring

420945880

$4.44

3

Shim

420244585

$1.90

4

Ball Bearing

420832161

$35.99

5

Fan Axle This part replaces 420937940.

420937941

$14.28

6

Woodruff Key

420246015

$3.17

7

Spacer Bushing

420827650

$13.16

8

Flange

420980496

$14.28

9

Shim 0.5 mm

420827080

$2.11

9

Shim 0.2 mm

420827082

$3.17

10

Protection Washer

420980523

$13.16

11

Fan

420866294

$96.49

12

Lock Washer

420945756

$3.17

13

Nut M16 This part replaces 420942285.

420942289

$10.33

14

V-Belt

414630800

$24.99

15

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

16

Socket Head Screw M6 X 30

205063044

$1.69

17

FAN COVER - Call your local BRP dealership

420975695

Unavailable

18

CYLINDER COWL - Call your local BRP dealership | 380 F.

420810764

Unavailable

19

CYLINDER COWL - Call your local BRP dealership | MX Z 440 F.

420810792

Unavailable

20

TAPTITE SCREW M6 X 16 - Call your local BRP dealership

420240580

Unavailable

21

SPRING NUT U #10-24 - Call your local BRP dealership

417300005

Unavailable

22

CYLINDER COWL - Call your local BRP dealership | MX Z 440 F.

420810776

Unavailable

23

Cup Washer

420827817

$14.28

24

Rubber Washer

420960865

$2.11

25

Washer This part replaces 420227935.

420227936

$3.38

26

Washer-Lock Din.128

420945832

$1.15

27

Hex. Screw M8 x 16

207181644

$1.15

28

FLAT WASHER - Call your local BRP dealership

420926180

Unavailable

29

Tapping Screw M4.8 X 16

417300006

$0.72

30

CLAMP - Call your local BRP dealership

420860940

Unavailable

31

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09

32

OUTLET DUCT - Call your local BRP dealership

572083700

Unavailable

33

Seal

M5346202

Unavailable

34

HEX. TAPING SCREW - Call your local BRP dealership This part replaces M40870.

40870

Unavailable

35

SERRATED LOCK WASHER M5 - Call your local BRP dealership

732900047

Unavailable

36

Tachometer

414277300

Unavailable

37

Foam

M5446535

Unavailable

38

SPRING NUT U #10-24 - Call your local BRP dealership

417300005

Unavailable

39

Screw M5 X 16

M40247

Unavailable

40

NUT M5 - Call your local BRP dealership

M33062

Unavailable

41

Washer 5,3 mm

20008

$0.74

42

Outlet Deflector

M5145108

Unavailable

43

Inlet Duct

M5246991

Unavailable

44

Clip

414227300

$1.67

45

Screw

M40308

Unavailable

46

Flat Washer M5

234051410

$0.53

47

NUT M5 - Call your local BRP dealership

M33062

Unavailable

48

Loctite 243, 10 ml

293800060

$21.49
