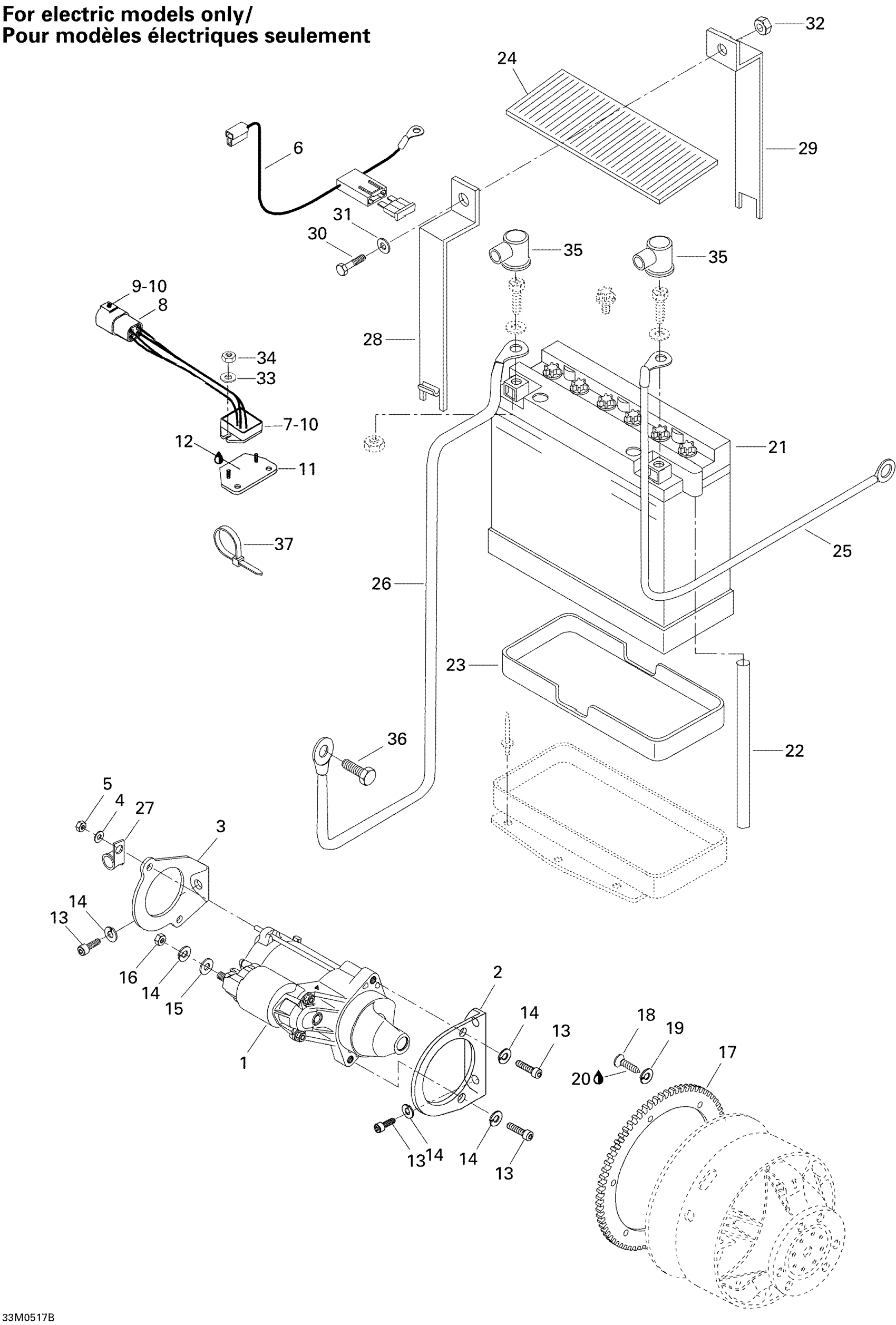

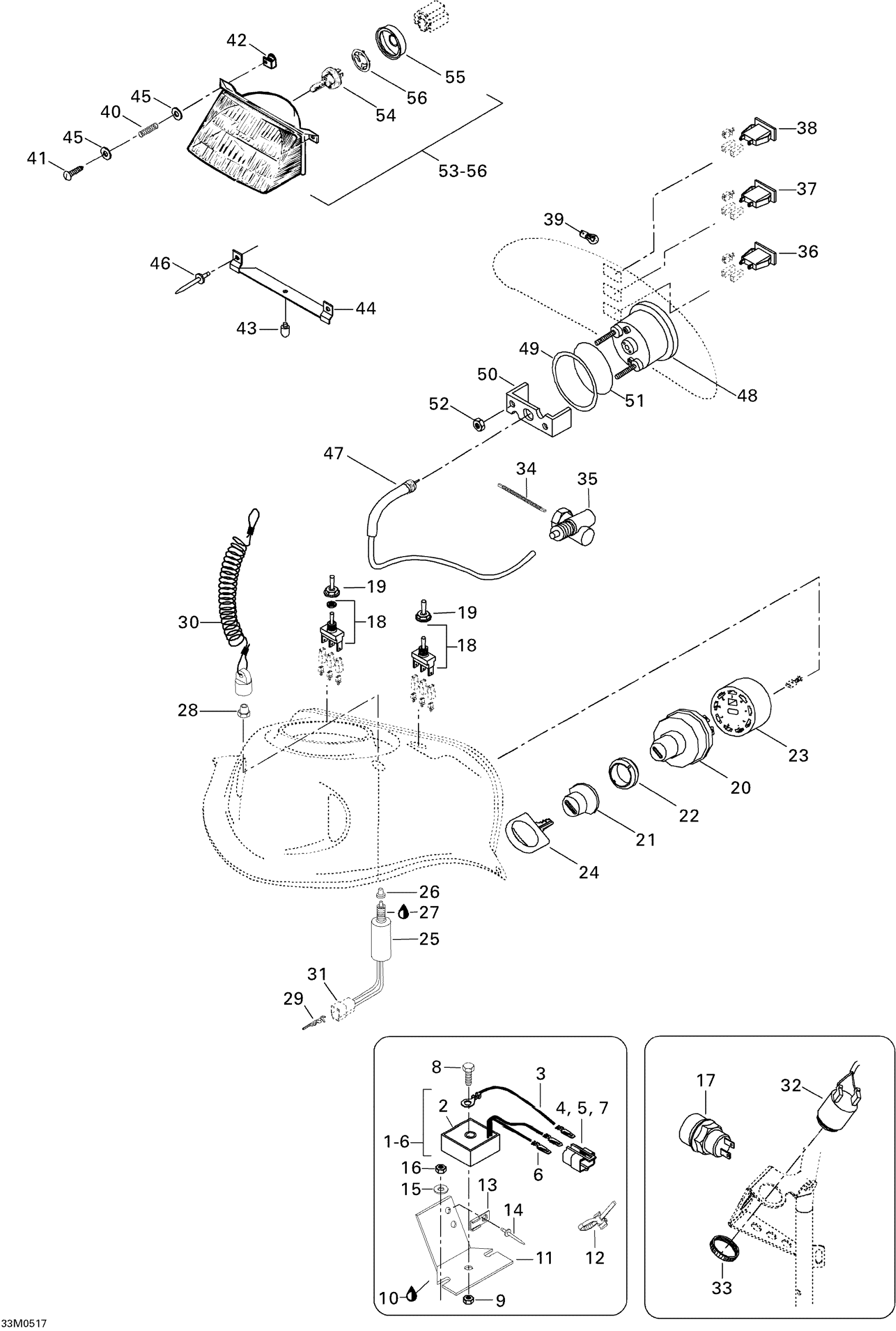

Ski-Doo Skandic LT 440F, 2005 Electrical System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

VOLTAGE REGULATOR - Call your local BRP dealership

515163800

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

5

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

6

Male Terminal

515175568

$9.12

7

Sealing Cap

293000052

$3.19

8

Hex. Screw

M40003

Unavailable

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

11

Cooling Plate

605350731

Unavailable

12

Tie-Rap 180 mm

414115200

$0.11

13

Clip

270000141

$11.49

14

Rivet

36005

$2.11

15

Flat Washer 6 mm

234062410

$0.77

16

Elastic Stop Nut M6

232561414

$0.55

17

Push Button

415130372

$122.49

18

Switch (Heating Grip) | FREERIDE

410107300

$35.99

19

Switch Cover

515175281

$15.99

20

IGNITION SWITCH - Call your local BRP dealership

515176548

Unavailable

21

Switch Boot

570013700

$11.49

22

FACE NUT - Call your local BRP dealership

410112100

Unavailable

23

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

24

Blank Key

415129350

$26.49

25

Brake Switch

515175653

$19.49

26

Plunger Cap

570151100

$9.85

27

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

28

Switch Nut

515145900

$12.12

29

CONNECTOR - Call your local BRP dealership

605642628

Unavailable

30

Cap Ass'y

515178283

$38.99

31

Male Housing

M42268

Unavailable

32

HORN - Call your local BRP dealership

515176035

Unavailable

33

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

34

Square Pin Nska L=75Mm This part replaces M45075.

45075

$19.49

35

Gear Unit 1:1.4 Left Op-0127-002-N0-Gu This part replaces M35021.

35021

$139.99

36

PILOT LAMP, ELECTRIC REVERSE - Call your local BRP dealership | North America

410113400

Unavailable

37

PILOT LAMP, HEADLAMP - Call your local BRP dealership | North America

515175726

Unavailable

38

PILOT LAMP, OIL LEVEL/BRAKE - Call your local BRP dealership

515175728

Unavailable

39

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

40

Spring

517168600

$7.39

41

PLASTITE PHILLIPS SCREW M4 X 40 - Call your local BRP dealership

243244040

Unavailable

42

Projector Nut

572078600

Unavailable

43

RUBBER STOPPER - Call your local BRP dealership

410608200

Unavailable

44

HOLDER - Call your local BRP dealership

M539864

Unavailable

45

Flat Washer M5

234051410

$0.53

46

Rivet

M36489

Unavailable

47

Speedometer Cable

M45006

Unavailable

48

Speedometer, Mph

515175336

Unavailable

48

Speedometer, Kmh

515175335

Unavailable

49

Washer

517258500

Unavailable

50

Case Holder

414806500

Unavailable

51

O-Ring

414807100

Unavailable

52

NUT M5 - Call your local BRP dealership

M33062

Unavailable

53

Headlamp | Includes 53 to 56

410609300

Unavailable

54

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

55

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

56

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable
