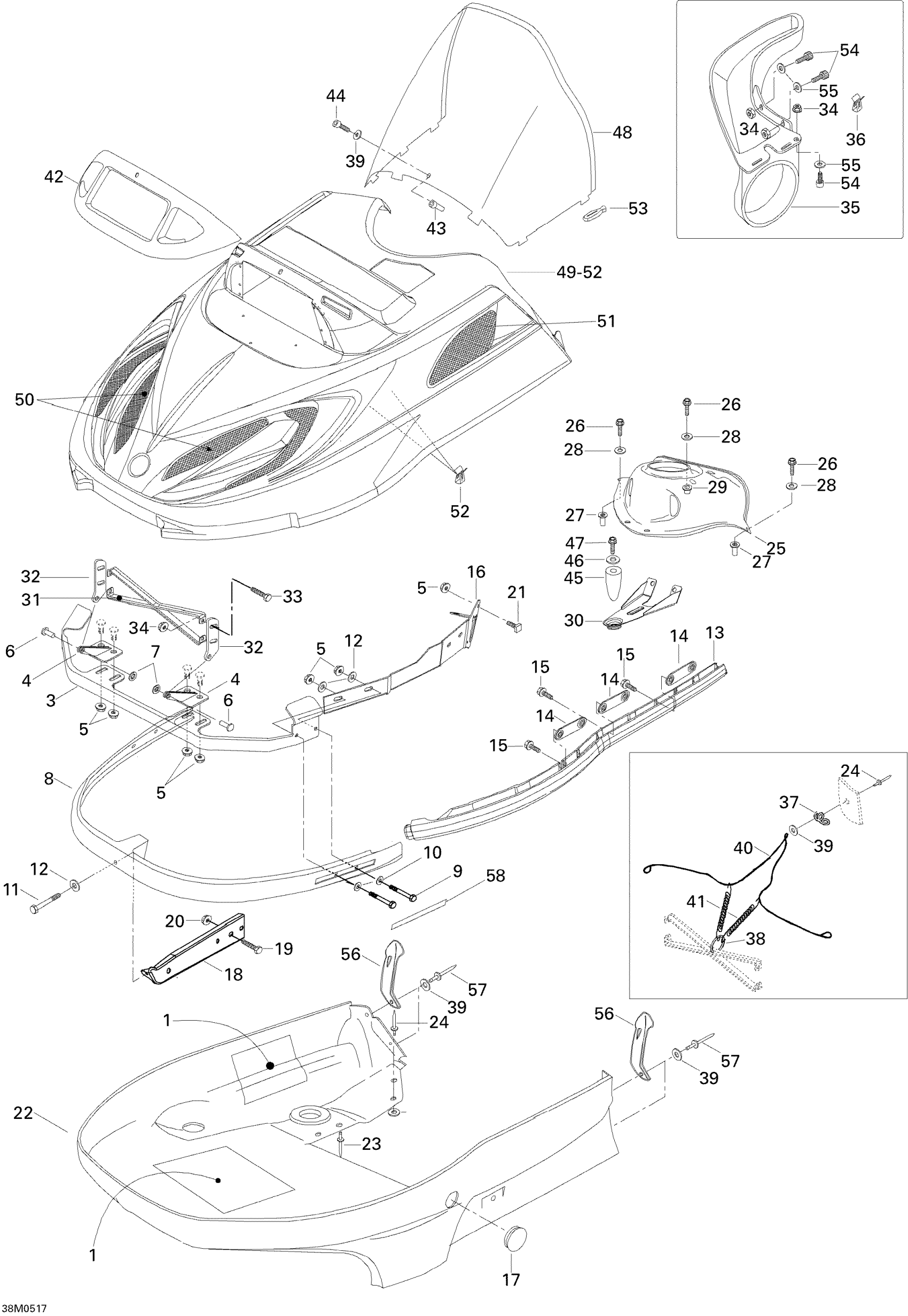

Ski-Doo Skandic LT 440F, 2005 09- Cab And Console Diagram

#

Description
Price

1

REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership This part replaces M44001.

44001

Unavailable

2

Clip

414227300

$1.67

3

Painted Bracket Hinge

517265100

Unavailable

4

Welded Lower Hinge

517289900

Unavailable

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

6

FLAT HEAD STEEL RIVET - Call your local BRP dealership

390906200

Unavailable

7

Push Nut

389804300

$0.53

8

Front Bumper

517265400

Unavailable

9

Hex. Screw M6 X 30

207063044

$1.26

10

Flat Washer

224061121

$0.53

11

Screw

M40867

Unavailable

12

Flat Washer 6 mm

234062410

$0.77

13

LH Bumper

M5144964

Unavailable

13

RH Bumper

M5144965

Unavailable

14

Side Bracket

M5446213

Unavailable

15

Screw

M40322

Unavailable

16

RH Support

M5246400

Unavailable

16

LH Support

M5246399

Unavailable

17

Bottom Pan Cap

570277300

Unavailable

18

Front Support

M5246183

Unavailable

19

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

20

Hex. Flange Elastic Nut M8

233281414

$1.47

21

Screw

M5446813

Unavailable

22

BOTTOM PAN - Call your local BRP dealership

605152267

Unavailable

23

Black, Rivet

M36036

$1.69

24

Rivet

36005

$2.11

25

Dash

605350277

Unavailable

26

Forming Screw M5 x 16

250000676

$1.01

27

Well-Nut S M5 X 14 (1=10Pcs) This part replaces M28055.

28055

$7.51

28

Washer

20117

$6.39

29

DAMPER RUBBER - Call your local BRP dealership

M547539

Unavailable

30

GUIDE PLATE - Call your local BRP dealership

605350221

Unavailable

31

Hood Reinforcement

M5246862

Unavailable

32

UPPPER HINGE - Call your local BRP dealership

517261100

Unavailable

33

Screw M5X16

M40366

Unavailable

34

NUT M5 - Call your local BRP dealership

M33062

Unavailable

35

Inlet Duct

M5246991

Unavailable

36

Clip

414227300

$1.67

37

Cable Keeper

M5442870

Unavailable

38

RING - Call your local BRP dealership

415058300

Unavailable

39

Washer 5,3 mm

20008

$0.74

40

Retainer Cable | SUV 600

M5342674

Unavailable

41

Spring This part replaces M5442675.

5442675

$14.99

42

Lamp Moulding

572079200

Unavailable

43

NUT M5 - Call your local BRP dealership

250100018

$6.99

44

Screw M5 X 30

M40358

Unavailable

45

Guide Pin

M5446857

Unavailable

46

WASHER - Call your local BRP dealership

M20038

Unavailable

47

Screw

M40375

Unavailable

48

WINDSHIELD - Call your local BRP dealership

M5147892

Unavailable

49

Yellow Hood | Includes 18 to 21

605148660

Unavailable

50

RH Front Grill

M5246261

Unavailable

50

LH Front Grill

M5246262

Unavailable

51

LH Side Grill

M5346263

Unavailable

51

RH Side Grille

M5347250

Unavailable

52

Clip

414227300

$1.67

53

Windshield Latch

570023800

$4.49

54

Screw

M40308

Unavailable

55

Flat Washer M5

234051410

$0.53

56

BLACK LATCH - Call your local BRP dealership

570025900

Unavailable

57

Rivet This part replaces M36009.

36009

$1.15

58

Yellow, LH/RH Rear Reflector Kit

861805523

$26.99
