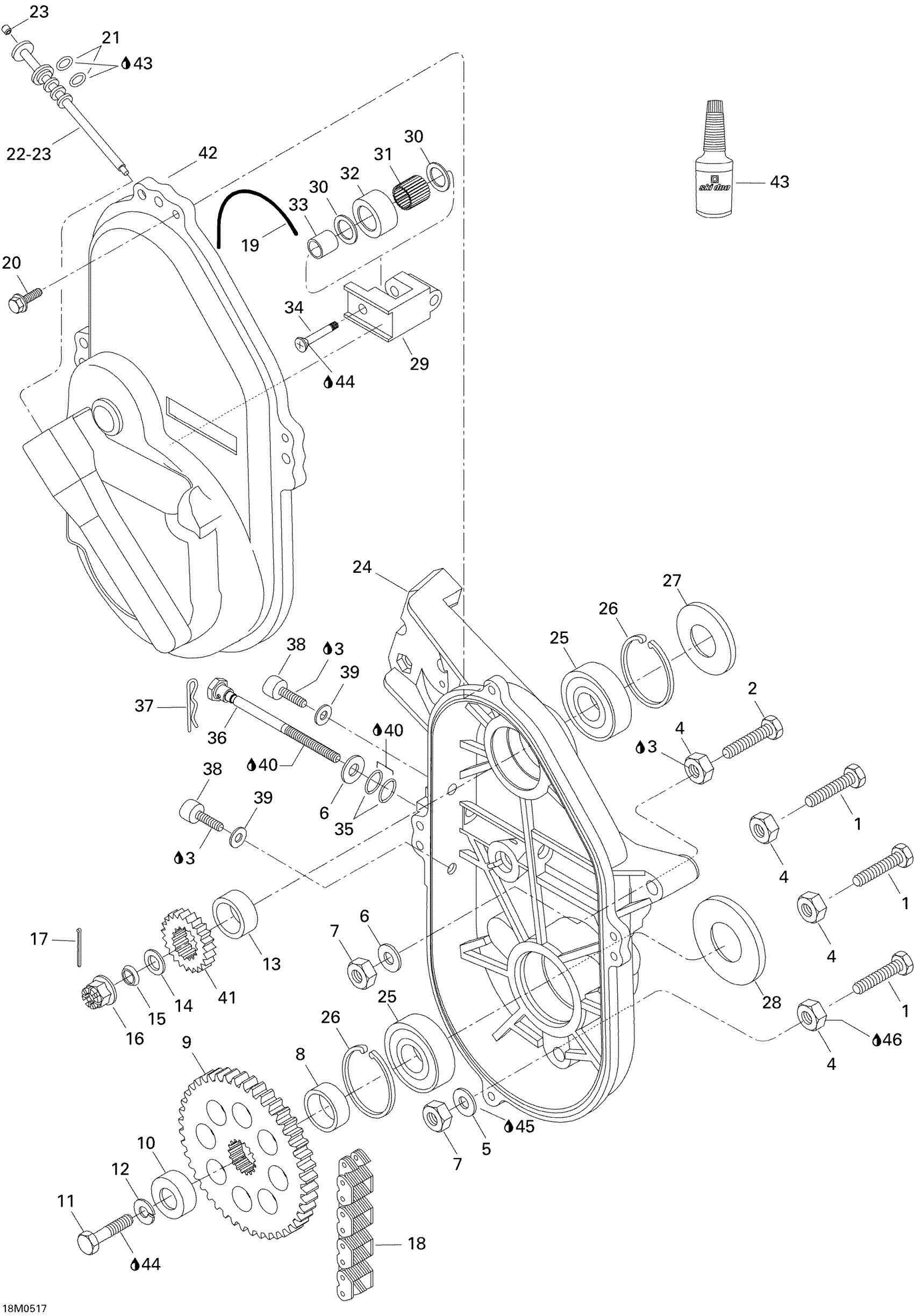

Ski-Doo Skandic LT 440F, 2005 05- Transmission Diagram

#

Description
Price

1

Screw

M40201

Unavailable

2

Screw

M40043

Unavailable

3

Loctite 243, 10 ml

293800060

$21.49

4

Spacer

504083800

Unavailable

5

WASHER-FLAT - Call your local BRP dealership

M20073

Unavailable

6

Flat Washer 10 mm

234001410

$1.26

7

Elastic Locking Nut M10 X 1.5

233601416

$1.69

8

SPACER - Call your local BRP dealership

605452059

Unavailable

9

Sprocket 44Th

504070900

Unavailable

10

CAP - Call your local BRP dealership

501026200

Unavailable

11

Hex. Screw M10 X 25

207102544

$1.37

12

Lock Washer D10

20068

$2.00

13

Shim

504093400

Unavailable

14

SPACER - Call your local BRP dealership

504152049

Unavailable

15

Spring Washer

417000900

Unavailable

16

HEX. CASTELLATED NUT M16 - Call your local BRP dealership

232210414

Unavailable

17

Cotter Pin

371801300

Unavailable

18

DRIVING CHAIN 70 M - Call your local BRP dealership

504151882

Unavailable

19

O-Ring

414362300

Unavailable

20

Hex. Forming Screw

M40340

Unavailable

21

O RING - Call your local BRP dealership

M28402

Unavailable

22

FILLER CAP ASS'Y - Call your local BRP dealership | Includes 22 to 23

572092700

Unavailable

23

SCREW-SET SOCKET DIN.916 - Call your local BRP dealership

206540490

Unavailable

24

Machined Chaincase

504144600

Unavailable

25

Ball Bearing

293350115

$12.11

26

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

27

OIL SEAL - Call your local BRP dealership

414882800

Unavailable

28

Seal Oil Ass'y

504152076

$27.99

29

MACHINED TENSIONER - Call your local BRP dealership

504081000

Unavailable

30

WASHER - Call your local BRP dealership

504080300

Unavailable

31

Needle Bearing

M31050

Unavailable

32

ROLLER - Call your local BRP dealership

414531300

Unavailable

33

SPACER - Call your local BRP dealership

504080200

Unavailable

34

SCREW - Call your local BRP dealership

732601144

Unavailable

35

O-Ring

414484400

$7.51

36

ADJUSTING SCREW - Call your local BRP dealership

732601311

Unavailable

37

Hair Pin

414575600

$1.89

38

Socket Head Screw

M40859

Unavailable

39

Washer

M20022

Unavailable

40

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

41

Sprocket 17 Th

504071800

Unavailable

42

CASTING COVER - Call your local BRP dealership

080037100

$134.99

43

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

44

Loctite 271, 10 ml

293800005

$26.99

45

Was 413702700 Loctite 515, 50 ml

219704462

$33.99

46

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
