Description

Price

1

Flange Connector

420810852

Unavailable

2

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.48

3

Rewind Starter Ass'y | Includes 3 to 13

420888219

$169.49

4

Rewind Starter Ass'y | Includes 3 to 13

420888219

$169.49

5

Rewind Spring

420939115

$30.49

6

Rope Sheave

420852480

$63.99

7

Was 412500100 Rope-Starter

219704403

$158.99

8

Key Clamp

420852070

$4.23

9

Pawl

420852296

$20.99

10

PAWL LOCK - Call your local BRP dealership

420852305

Unavailable

11

Stage Sleeve

420847926

$16.33

12

O-Ring

420250400

$5.39

13

Lock Ring

420852520

$9.27

14

Locking Element

420845560

$2.11

15

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09

16

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

17

Starter Grip

572084400

$14.83

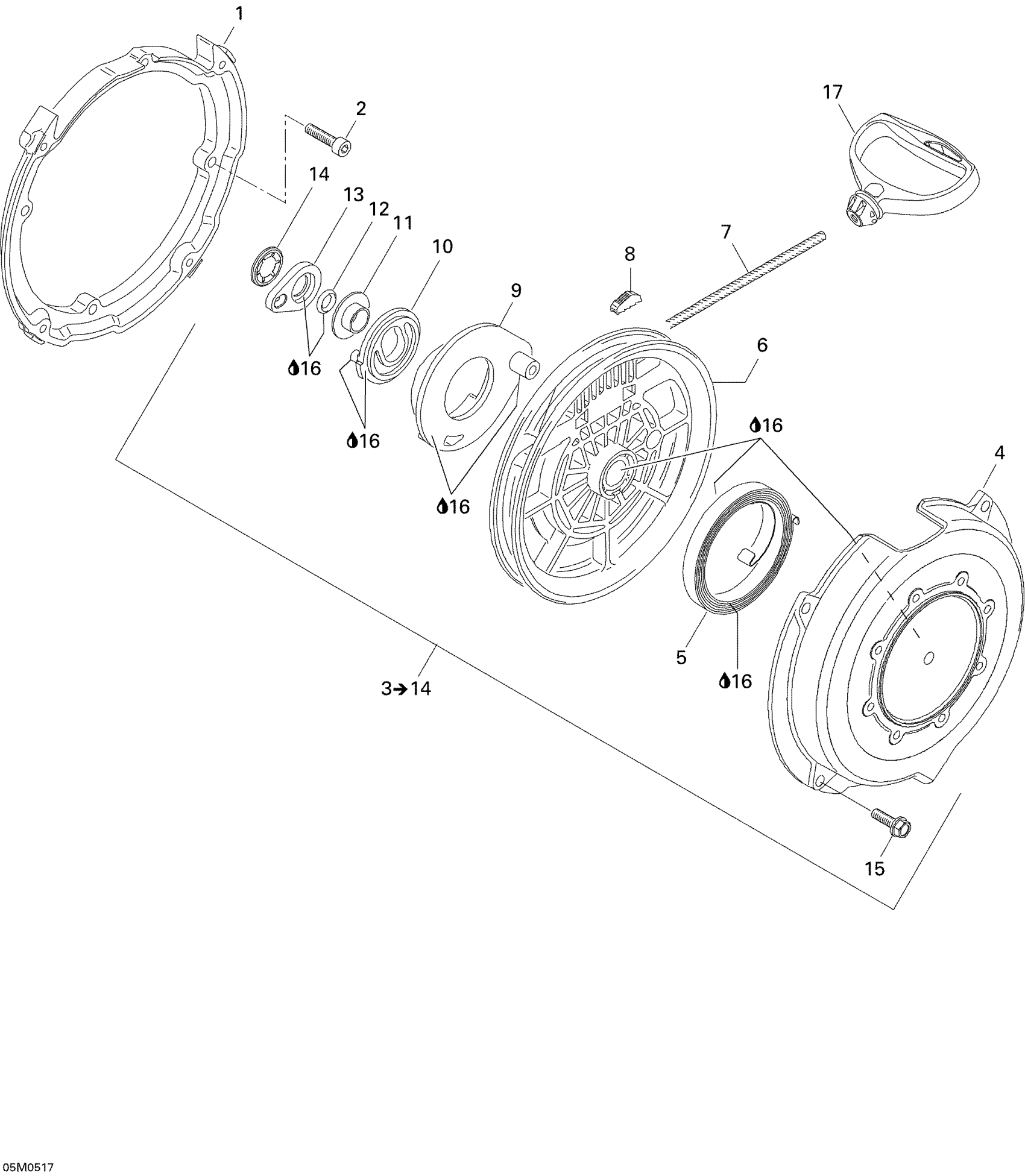

Ski-Doo Skandic LT 440F, 2005 04- Rewind Starter Diagram

Flange Connector

Allen Screw M6 x 22 This part replaces 420840401.

Rewind Starter Ass'y | Includes 3 to 13

Rewind Starter Ass'y | Includes 3 to 13

Rewind Spring

Rope Sheave

Was 412500100 Rope-Starter

Key Clamp

Pawl

PAWL LOCK - Call your local BRP dealership

Stage Sleeve

O-Ring

Lock Ring

Locking Element

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

Was 293550004 Dielectric Grease, 150 g

Starter Grip
