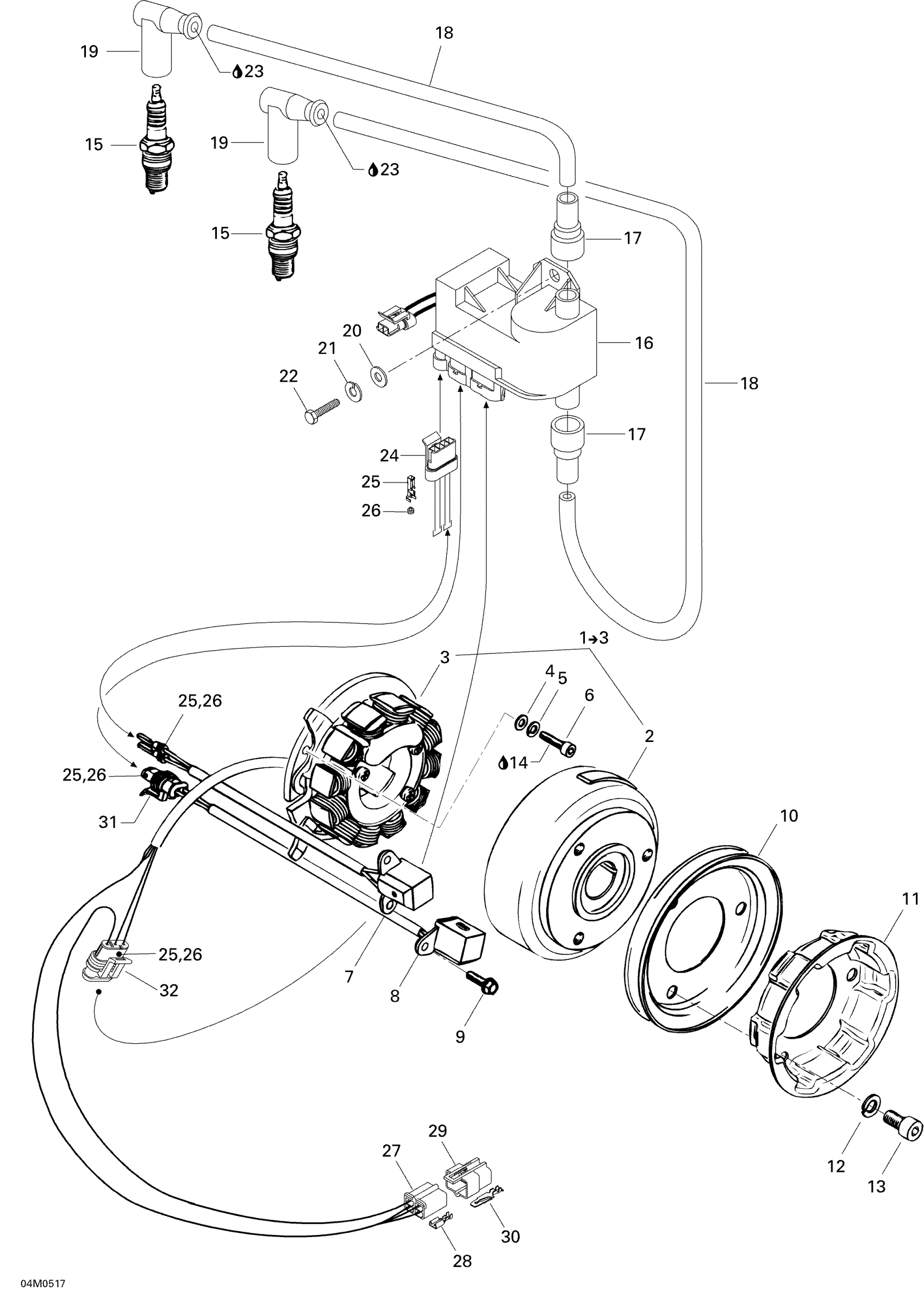

Ski-Doo Skandic LT 440F, 2005 03- Magneto Diagram

#

Description
Price

1

Ducati Magneto | Includes 1 to 2

420887654

Unavailable

2

Flywheel

420996824

Unavailable

3

STATOR PLATE A - Call your local BRP dealership

420886603

Unavailable

4

Washer 5.3

420927574

$1.90

5

Lock Washer

M20013

Unavailable

6

SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership

420840515

Unavailable

7

Pick-Up

420665163

$164.99

8

PICK-UP - Call your local BRP dealership

420665160

Unavailable

9

Taptite Screw M5 X 16

420941928

Unavailable

10

V-Belt Pulley

420980486

$37.99

11

Rope Sheave

420852414

$29.49

12

Lock Washer

420845311

$1.90

13

SOCKET HEAD SCREW M8 X 12 - Call your local BRP dealership

420841522

Unavailable

14

Loctite 243, 10 ml

293800060

$21.49

15

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

16

Electronic Box | Includes 21 to 25 This part replaces M42507.

42507

$479.99

17

PROTECTION CAP - Call your local BRP dealership

515174900

Unavailable

18

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

19

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

20

SCREW - Call your local BRP dealership

M40332

Unavailable

21

Lock Washer M6, Black

234161471

$0.53

22

Flat Washer 6 mm

234061410

$1.36

23

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

24

Female Housing, 4 Circuits

409209700

$16.18

25

Female Terminal

278001014

$3.28

26

Wire Seal

278001013

$3.28

27

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

28

FEMALE TERMINAL - Call your local BRP dealership

515175253

Unavailable

29

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

30

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

31

Female Housing, 2 Circuits

409209500

$15.27

32

Female Housing, 3 Circuits

409209600

$35.99
