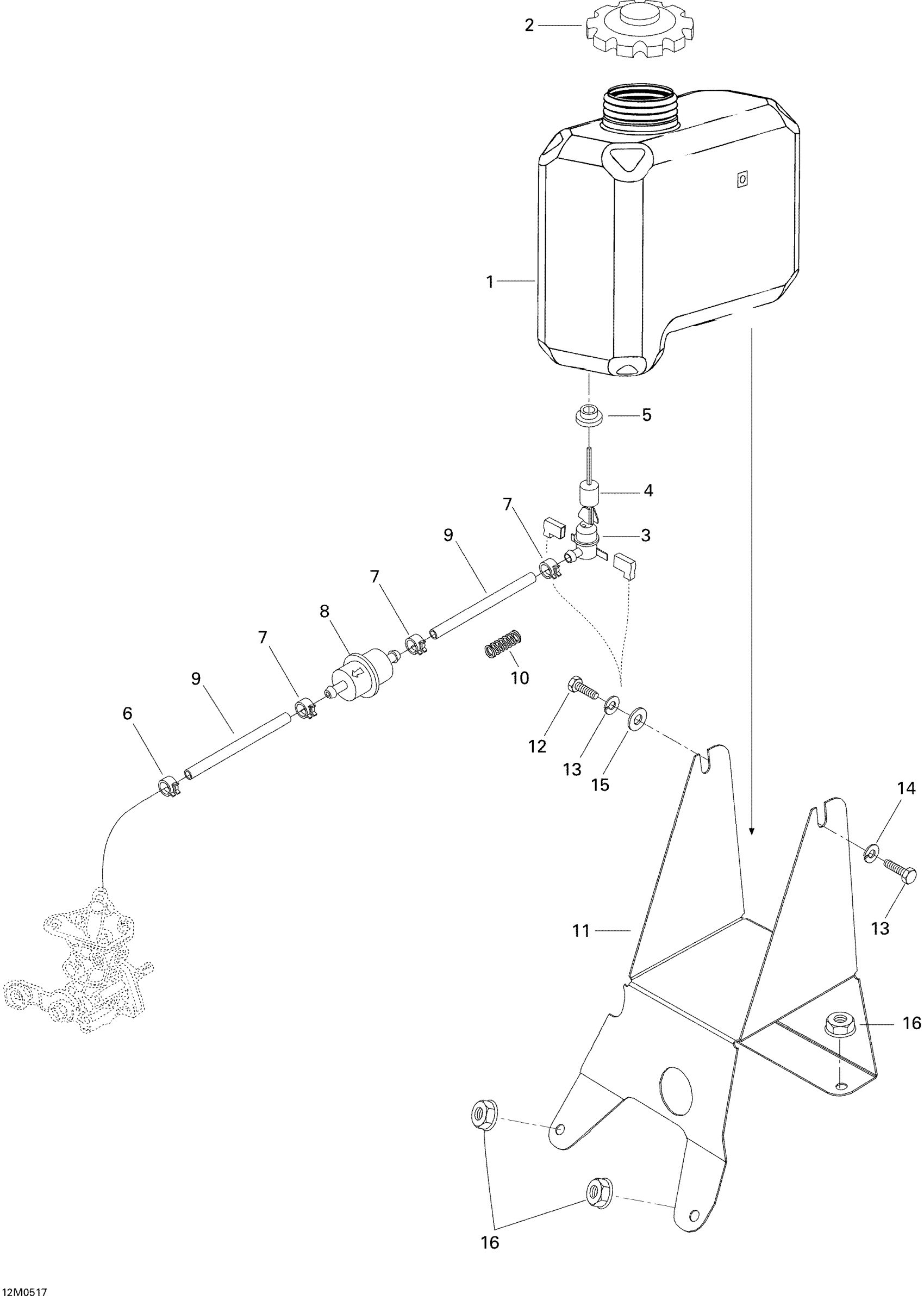

Ski-Doo Skandic LT 440F, 2005 02- Oil System Diagram

#

Description
Price

1

Oil Tank

572106700

Unavailable

2

CAP - Call your local BRP dealership

519000044

Unavailable

3

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

4

Float

414681900

Unavailable

5

Insulating Ring

570023000

$5.61

6

Spring Clamp

414420700

$0.72

7

Spring Clamp

414415200

$0.88

8

Filter

414536500

$4.02

9

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

10

SPRING - Call your local BRP dealership

M25005

Unavailable

11

Tank Support

M5246036

Unavailable

12

HEX. SCREW M6 X 12 - Call your local BRP dealership

207161244

Unavailable

13

HEX. SCREW M6 X 10 - Call your local BRP dealership

207161044

Unavailable

14

Lock Washer M6, Black

234161471

$0.53

15

Flat Washer 6 mm

234062410

$0.77

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
