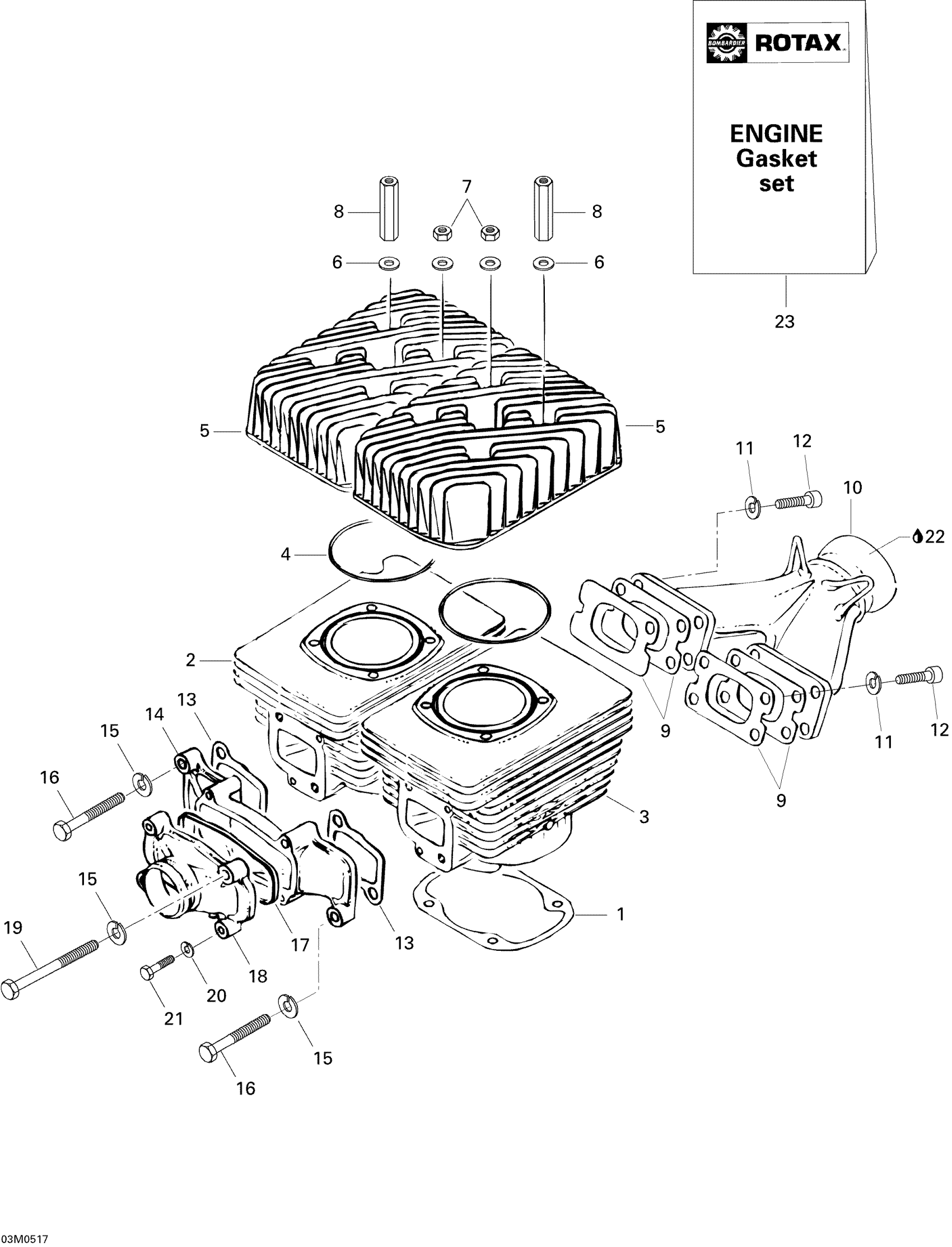

Ski-Doo Skandic LT 440F, 2005 01- Cylinder and Cylinder Head, Rear Side Diagram

#

Description
Price

1

GASKET 0.3 - Call your local BRP dealership

420931780

Unavailable

1

GASKET 0.4 - Call your local BRP dealership

420430351

Unavailable

1

GASKET 0.6 - Call your local BRP dealership

420931782

Unavailable

2

CYLINDER WITH SLEEVE PTO SIDE - Call your local BRP dealership

420923791

Unavailable

3

Cylinder Whit Sleeve Mag Side

420923796

Unavailable

4

O-Ring

420931380

$12.70

5

CYLINDER HEAD - Call your local BRP dealership

420923377

Unavailable

6

Flat Washer 8 mm

234081410

$0.83

7

Hex. Nut M8

232081414

$0.72

8

DISTANCE NUT M8 X 51 - Call your local BRP dealership

420842208

Unavailable

9

GASKET - Call your local BRP dealership

420850114

Unavailable

10

Exhaust Manifold

420879459

Unavailable

11

Lock Washer 8 mm

234181401

$0.92

12

Socket Head Screw M8 X 30

M40135

Unavailable

13

INTAKE GASKET 1.0 MM - Call your local BRP dealership

420831867

Unavailable

14

Intake Manifold

420867435

Unavailable

15

Lock Washer 8 mm

234181401

$0.92

16

Hex. Screw M8 X 35

207083544

$1.15

17

RUBBER RING - Call your local BRP dealership

420850190

Unavailable

18

Intake Cover-Intake

420867442

Unavailable

19

Hex. Screw M8 X 70

420841201

$3.06

20

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

21

Hex. Screw M6 X 25

207162544

$1.15

22

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

23

GASKET SET, ENGINE - Call your local BRP dealership

420994232

Unavailable
