2005 Ski-Doo Skandic LT 440F Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2005 Ski-Doo Skandic LT 440F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

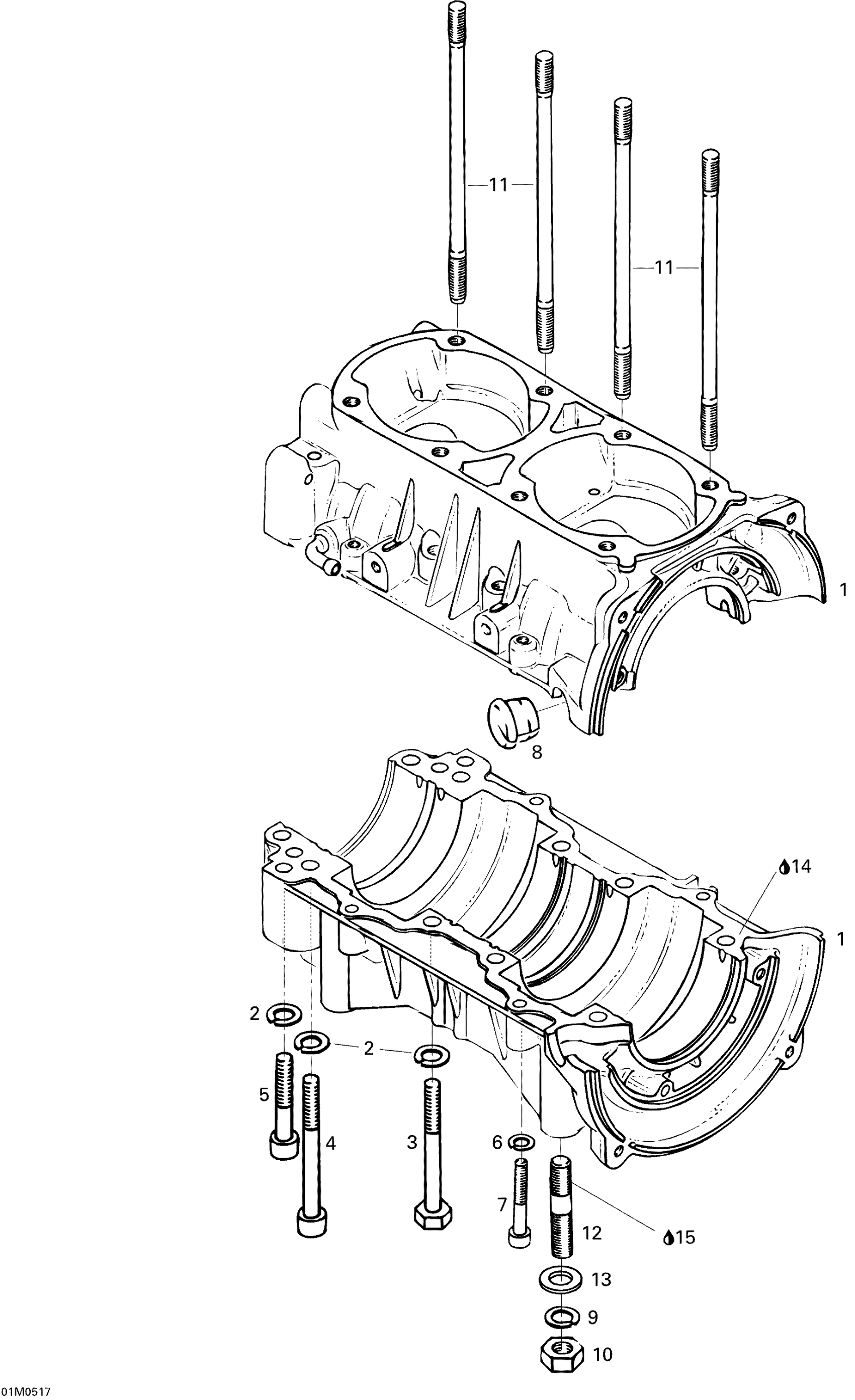

2005 Ski-Doo Skandic LT 440F Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Crankcase Ass'y | Includes 1 to 7

420888481

—
Out of stock

2

Washer-Lock Din.128

420945832

10
Out of stock

3

Hex. Screw M8 X 70

420841201

6
Out of stock

4

ALLEN SCREW M8 X 75 - Call your local BRP dealership

420841831

—
Out of stock

5

ALLEN SCREW M8 X 50 - Call your local BRP dealership

420841566

—
Out of stock

6

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

—
Out of stock

7

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

420241816

4
Out of stock

8

Cable Grommet

420860962

1
Out of stock

9

Lock Washer

M20047

—
Out of stock

10

Hex. Nut M10 X 1.5

232006414

1
Out of stock

11

STUD M8 X 167 - Call your local BRP dealership

420841149

—
Out of stock

12

Stud M10 X 29/20

420940190

—
Out of stock

13

Flat Washer 10 mm

234001410

1
Out of stock

14

Sealing Compound Loctite 5366 310Ml

420297907

1
Out of stock

15

Loctite 243, 10 ml

293800060

1
Out of stock
